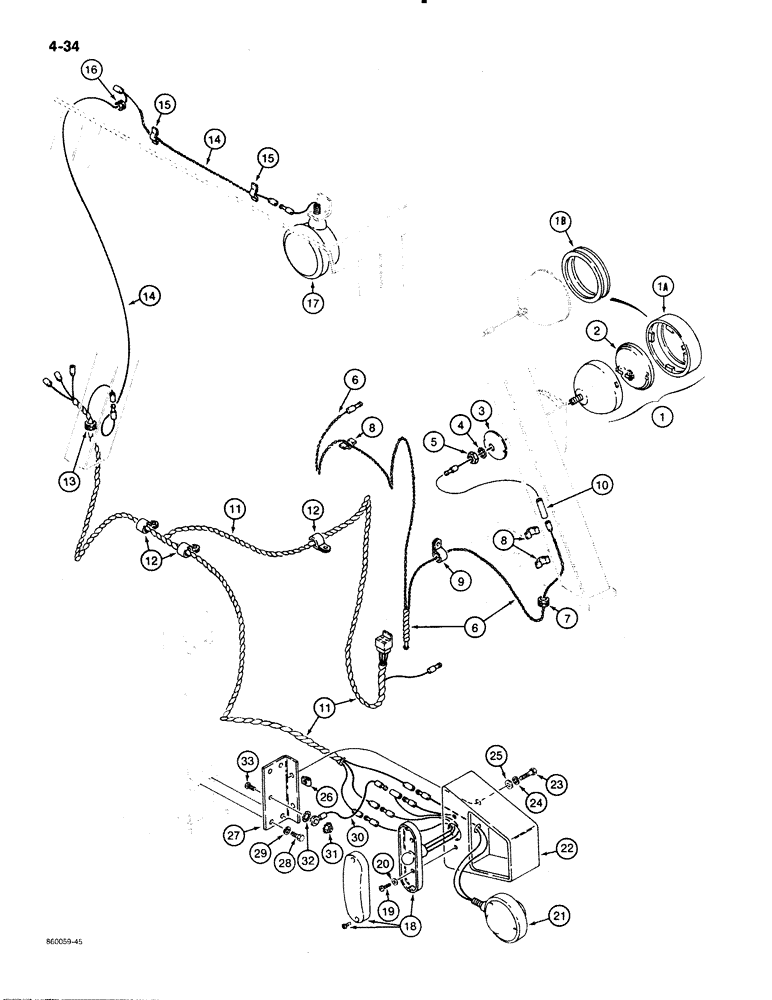

Запчасти Case 480E (4-34) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CANOPY (04) - ELECTRICAL SYSTEMS

1

D88547

LAMP BASE

LAMP ASSEMBLY - front, interchangeable with A59701 lamp, Includes: Ref. 1A - 2

2шт.

1a

A25213

RETAINER

RETAINER - lamp, locks to shell with three rubber tabs, if used

1шт.

1b

N6160

LAMP

RETAINER - lamp, locks over shell flange, if used

1шт.

2

A11280

LAMP

BULB - sealed beam, No. 4411

1шт.

3

A59702

RETAINER

WASHER - retainer

2шт.

4

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

2шт.

6

D88626

HARNESS

HARNESS - front lamps, connects to main wiring harness

1шт.

7

49561

GROMMET,1/4" ID x 7/16" Groove Dia

GROMMET - rubber, through valve mounting plate

1шт.

8

F93268

CLIP

CLIP - wire, stick on type

5шт.

9

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

CLAMP - harness, use instrument panel mounting hardware

2шт.

10

NSS

NOT SOLD SEPARAT

SLEEVE - protective, lamp wire connection

2шт.

11

D88628

HARNESS

HARNESS - rear flood lamps and flasher lamps

1шт.

12

49838

CLAMP

CLAMP - retaining

3шт.

13

D37936

GROMMET

GROMMET - rubber, rear harness through fenders

2шт.

14

D88627

HARNESS

HARNESS - upper, rear flood lamps

1шт.

15

F93268

CLIP

CLIP - wire, stick on type

2шт.

16

L10082

GROMMET

GROMMET - rubber, harness through canopy roof, rear

1шт.

17

D88684

LAMP

LAMP ASSEMBLY - rear flood, parts list Figure 4-44

2шт.

18

D121152

LAMP,12V

LAMP ASSEMBLY - stop and tail, parts list Figure 4-40

2шт.

19

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

SCREW - pan head, self-tapping, No. 8 x 5/8", plated

4шт.

20

195-510

WASHER,#8

WASHER - plain, 3/16 x 7/16 inch

4шт.

21

D122121

LAMP,12V

LAMP ASSEMBLY - flasher, parts list Figure 4-42

2шт.

22

D120124

BRACKET

BRACKET - side lamps, also order 8-44950 instruction sheet

2шт.

23

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

24

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

25

195-103

WASHER,5/16"

WASHER - flat, 3/8 x 7/8 x 5/64 inch

4шт.

26

131-636

SPRING NUT,J, Ret, 5/16"-18

NUT - J-type, 5/16 inch NC

4шт.

27

D134875

BRACKET

BRACKET - mounting, side lamp, Serial Range: bracket-canopy

2шт.

28

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

BOLT, Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

30

D134918

ELECTRICAL WIRE

WIRE WIRE - ground, flasher and stop and tail lamps, common connection to canopy mounting bracket

2шт.

31

193-1000

NUT,Keps, w/LW,#10-32

NUT ASSEMBLY - includes lock washer, No. 10 NF

2шт.

32

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

33

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 3/8"

2шт.
