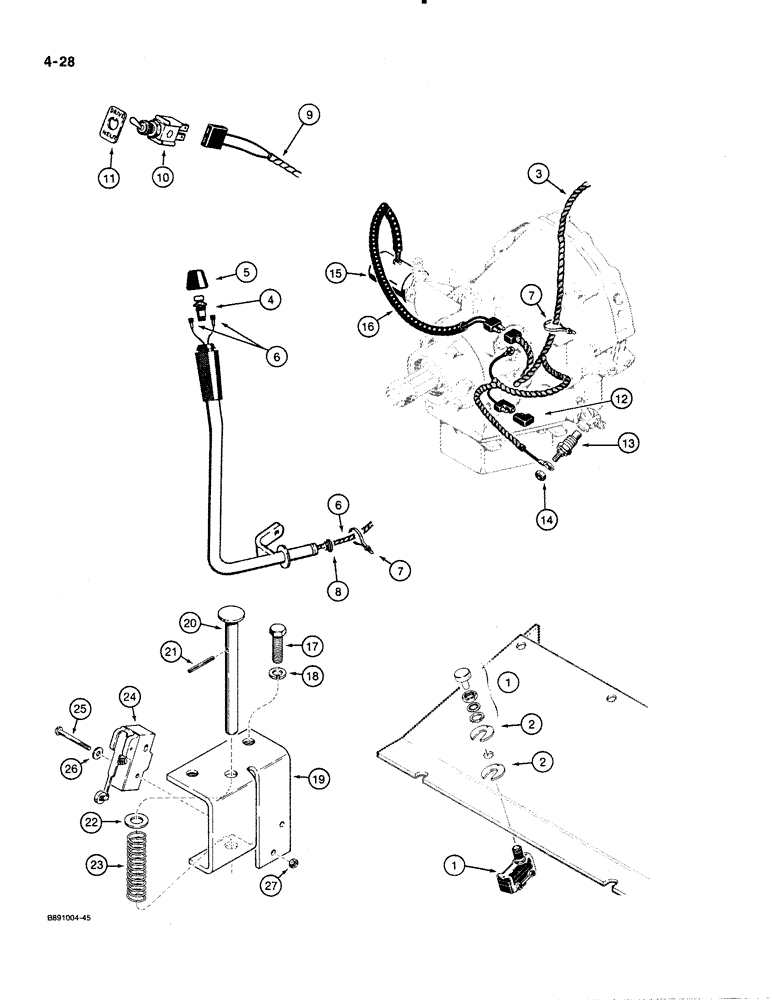

Запчасти Case 480E (4-28) - POWER SHUTTLE ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

D135612

SWITCH

SWITCH - clutch cutout, floor plate mounted, order D103504 kit below

1шт.

2

D126116

BRACKET

WASHER - special, if used

1-2шт.

3

D99204

HARNESS

HARNESS - clutch cutout, lower

1шт.

4

D141486

SWITCH

SWITCH - clutch cutout, loader control lever, if used

1шт.

5

D138252

BOOT

BOOT - switch cover, if used

1шт.

6

D99751

HARNESS

HARNESS - control lever switch, if used

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

8

D83832

GROMMET

GROMMET - wire, if used

1шт.

9

D99203

HARNESS

HARNESS - clutch cutout, upper, if used

1шт.

10

D67251

SWITCH

SWITCH - clutch cutout, instrument panel, includes hardware, if used

1шт.

11

D73929

PLATE

PLATE - instrument panel switch, if used

1шт.

12

L71879

DIODE ELEMENT,400V, 3A

DIODE - switch

1шт.

13

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - shuttle oil temperature

1шт.

14

193-1000

NUT,Keps, w/LW,#10-32

NUT ASSEMBLY - includes lock washer, No. 10 NF

1шт.

15

D134742

SOLENOID

SOLENOID - clutch cutout, at power shuttle, used with D136020 or D135731 shuttle

1шт.

See Figure 6-14 for solenoid used with D140175, D140405, or D140492 shuttle.

1шт.

16

D88053

SLEEVE

SLEEVE - solenoid wires

1шт.

D103504

SWITCH

KIT - switch, clutch cutout, Includes: Ref. 17 - 27

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

D142143

SWITCH

SWITCH ASSEMBLY - clutch cutout, with bracket, Includes: Ref. 19 - 27

1шт.

19

D142142

BRACKET

BRACKET - switch mounting

1шт.

20

D141581

ROD

ROD - switch activating

1шт.

21

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

22

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

23

T34088

SPRING

SPRING - return, switch rod

1шт.

24

D137363

SWITCH

SWITCH - clutch cutout

1шт.

25

182-530

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

SCREW - machine, pan head, No.6 NC x 1-1/4 inch

2шт.

26

195-507

WASHER,#6

WASHER - flat, No. 6

2шт.

27

193-1003

NUT,Keps, w/LW,#6-32

NUT ASSEMBLY - includes lock washer, No. 10 NF

2шт.
