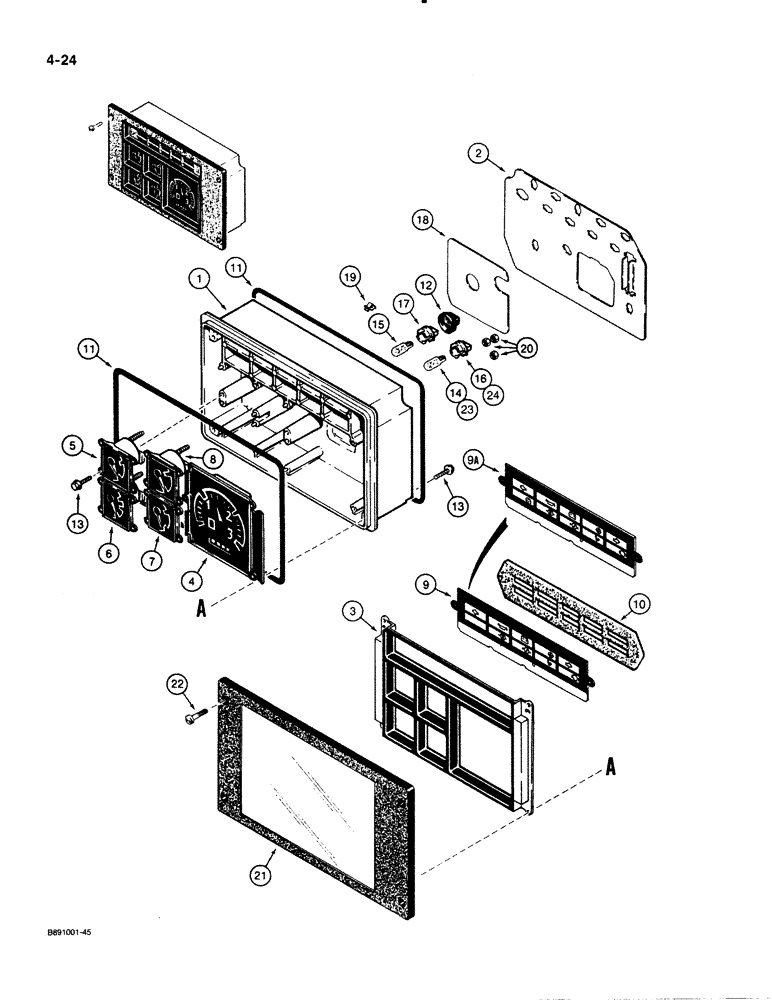

Запчасти Case 480E (4-24) - D136323 AND D144970 INSTRUMENT CLUSTERS (04) - ELECTRICAL SYSTEMS

D136323

CLUSTER, INSTR.

CLUSTER, INSTRUMENT CLUSTER ASSEMBLY - instrument, tractor, with auxiliary steering warning, without transmission filter warning, Includes: Ref. 1 - 21

1шт.

D144970

CLUSTER, INSTR.

CLUSTER, INSTRUMENT CLUSTER ASSEMBLY - instrument, tractor, without auxiliary steering warning, with transmission filter warning, Includes: Ref. 1 - 21

1шт.

1

N13545

INSTRUMENT PANEL

HOUSING - instrument cluster

1шт.

2

H422774

BOARD, PRINTED CIRCU

IT CIRCUIT - printed, instrument cluster

1шт.

3

N14227

COVER

COVER - instrument cluster

1шт.

4

N13543

TACHOMETER

GAUGE - tachometer, includes hourmeter

1шт.

5

N13542

GAUGE

GAUGE - water temperature

1шт.

6

A47688

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

7

N6807

ELECTRICAL GAUGE

GAUGE - voltmeter

1шт.

8

N14226

GAUGE

GAUGE - oil temperature

1шт.

9

N13538

BAND

LENS - identification, warning lamps, D136323 cluster only, with auxiliary steering warning, without transmission filter warning

1шт.

9a

D146335

BAND

LENS - identification, warning lamps, D144970 cluster only without auxiliary steering warning, with transmission filter warning

1шт.

10

D71342

GASKET,3.05mm Thk

GASKET - lens

1шт.

11

D71343

GASKET,4.45mm Thk x 249.68mm ID

GASKET - instrument cluster

2шт.

12

D71344

COVER

BOOT - rubber

3шт.

13

A45093

SCREW,Hex Slotted, 12.70"

SCREW - special

12шт.

14

D71346

TAIL LAMP,12V

BULB - light, No. 168

6шт.

15

W10478

LAMP

LAMP - Type C-2F, No. 194

3шт.

16

A47123

SOCKET/RECEPTACLE

SOCKET - lamp

6шт.

17

A47125

PEDESTAL

SOCKET - lamp, green

3шт.

18

H422758

GASKET,1.52mm Thk

GASKET - housing

1шт.

19

H422766

CLIP, SPRING

CLIP - gauges

11шт.

20

129-15

NUT,#6-32

NUT, #6-32

3шт.

21

N14225

SHIELD

SHIELD - instrument cluster

1шт.

22

182-552

SCREW,Cross Pan Hd, #10-24 x 1/2"

SCREW - machine, pan head slotted, No. 10 NC x 1/2 inch

4шт.

23

D71346

TAIL LAMP,12V

BULB - light, No. 168

2шт.

24

A47123

SOCKET/RECEPTACLE

SOCKET - lamp

2шт.
