Артикул
Название
Примечание
Количество
D132690
CLUSTER

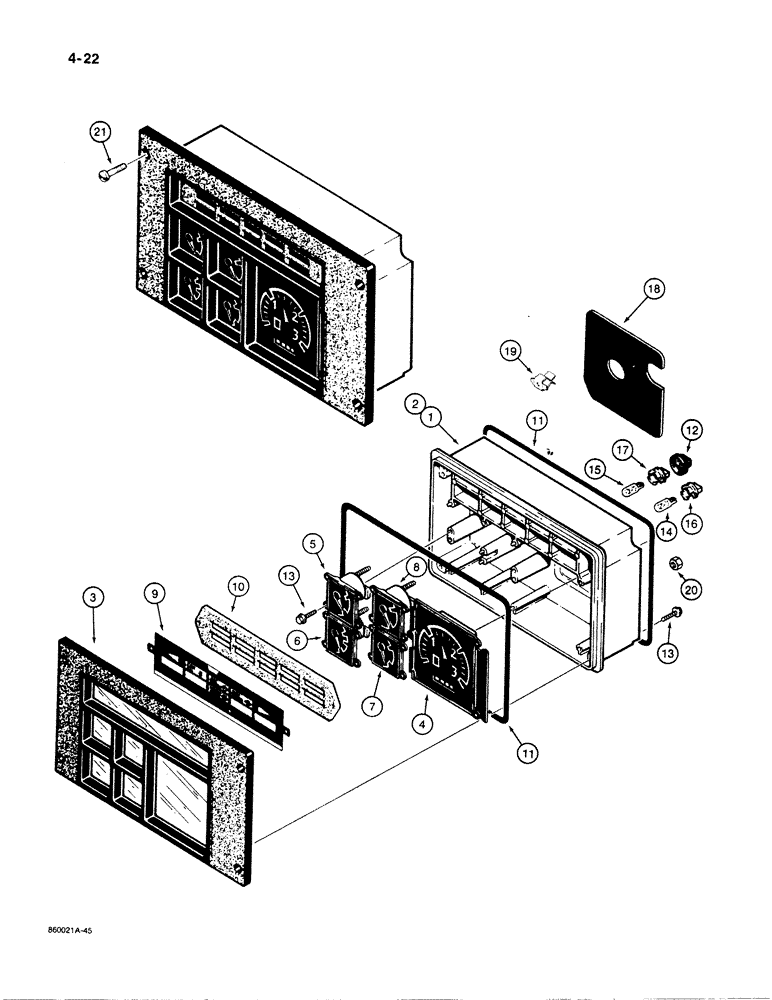

INSTRUMENT CLUSTER ASSEMBLY - tractor, no longer available, order D136323 cluster, parts list Figure 4-24, Includes: Ref. 1 - 20
1шт.
1
N13545
INSTRUMENT PANEL
HOUSING - instrument cluster
1шт.
2
H422774
BOARD, PRINTED CIRCU
IT PRINTED CIRCUIT - instrument cluster, not shown
1шт.
3
D71334
LENS
COVER - instrument cluster
1шт.
4
N13543
TACHOMETER
GAUGE - tachometer, includes hourmeter
1шт.
5
N13542
GAUGE
GAUGE - water temperature
1шт.
6
A47688
ELECTRICAL GAUGE
GAUGE - fuel level
1шт.
7
N6807
ELECTRICAL GAUGE
GAUGE - voltmeter
1шт.
8
N13546
GAUGE
GAUGE - oil temperature
1шт.
9
N13538
BAND
LENS - identification, warning lamps
1шт.
10
D71342
GASKET,3.05mm Thk
GASKET - lens
1шт.
11
D71343
GASKET,4.45mm Thk x 249.68mm ID
GASKET - instrument cluster
2шт.
12
D71344
COVER
BOOT - rubber
3шт.
13
A45093
SCREW,Hex Slotted, 12.70"
SCREW - special
12шт.
14
D71346
TAIL LAMP,12V
BULB - light, No. 168
9шт.
15
W10478
LAMP
LAMP - Type C-2F, No. 194
3шт.
16
A47123
SOCKET/RECEPTACLE
SOCKET - lamp
9шт.
17
A47125
PEDESTAL
SOCKET - lamp, green
3шт.
18
H422758
GASKET,1.52mm Thk
GASKET - housing
1шт.
19
H422766
CLIP, SPRING
CLIP - gauges
12шт.
20
129-15
NUT,#6-32
NUT, #6-32
3шт.
21
182-516
SCREW,Sl Pan Hd, #10 - 24 x 1/2"
Machine
4шт.
Выбрано товаров: 22
