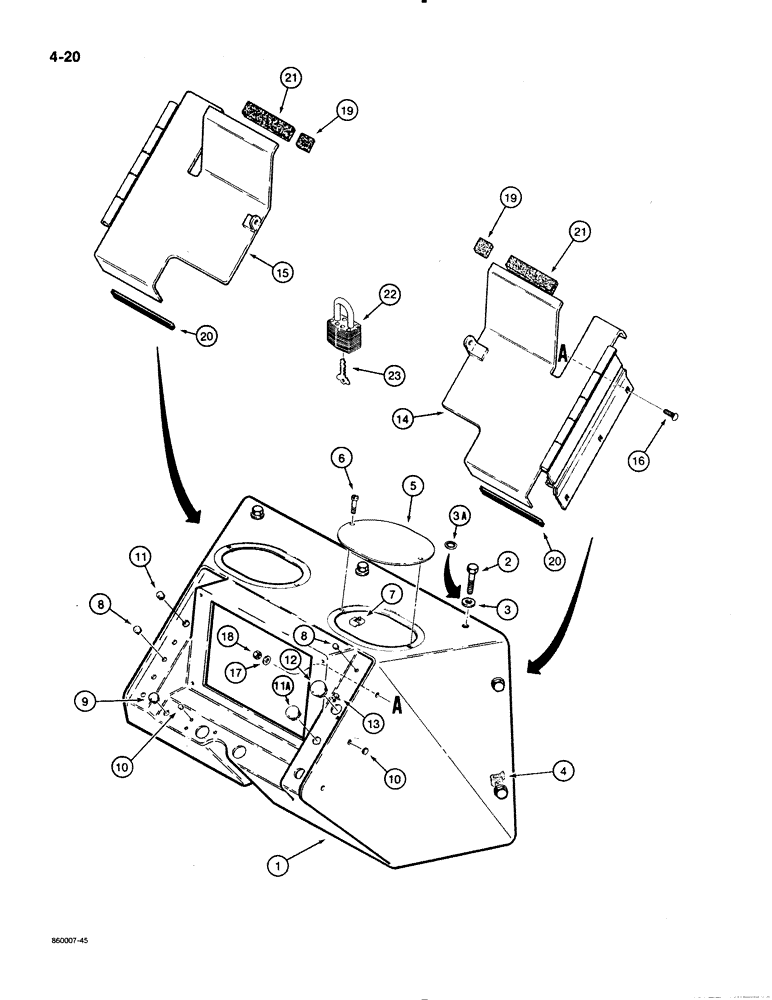

Запчасти Case 480E (4-20) - INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D129606

PANEL

INSTRUMENT PANEL - tractor

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

3

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

6-7шт.

3a

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Used with defroster fan mounting plate, see Figure 9-146 Int Tooth, 5/16"

1шт.

4

131-641

NUT

NUT - U-type, 5/16" - 18 NC

4шт.

5

D124884

COVER

COVER - access hole

2шт.

6

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine

4шт.

7

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

4шт.

8

353-402

PLUG,Dome, .375" hole, Nylon

PLUG, , If used Dome, .375" hole, Nylon

4шт.

9

353-404

PLUG,Dome, .500" hole, Nylon

PLUG, , If used Dome, .500" hole, Nylon

1-2шт.

10

353-401

PLUG,Dome, .312" hole, Nylon

PLUG - button, 5/16 inch, if used

9шт.

11

353-406

PLUG,Dome, .625" hole, Nylon

PLUG - button, 5/8 inch, if used

1шт.

11a

353-408

PLUG,Dome, .750" hole, Nylon

PLUG - button, 3/4 inch, if used

1шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

If used

1шт.

13

353-421

PLUG,Dome, .187" hole, Nylon

If used

2шт.

14

D80782

COVER

COVER - anti-vandalism, right-hand, if used

1шт.

15

D80781

COVER

COVER - anti-vandalism, left-hand, if used

1шт.

16

111-135

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

CARRIAGE BOLT - 1/4" - 20 NC x 3/4", plated

6шт.

17

195-102

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

6шт.

18

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

6шт.

19

D83236

PAD

PAD - cushion

2шт.

20

REF

INSTRUCTION

TRIM - edge, 4-5/16" (109 mm) long, cut from A165860, see below

2шт.

21

D66072

SEALING STRIP

STRIP - cushion

2шт.

22

D93753

PADLOCK

PADLOCK - includes keys, Includes: Ref. 23

1шт.

23

R29555

KEY

KEY - for Master padlock only

2шт.

23

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

A165860

TRIM

TRIM - edge, 27-3/8" (696 mm) long

1шт.
