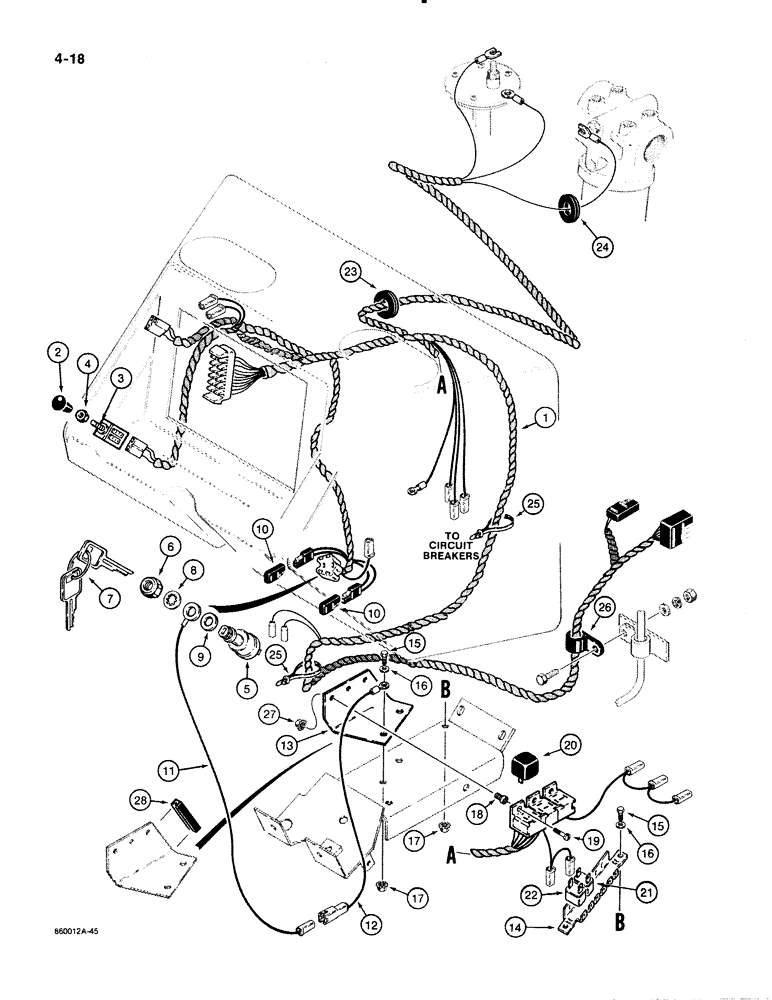

Запчасти Case 480E (4-18) - MAIN WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D134640

HARNESS

HARNESS - main

1шт.

2

D95781

BUTTON

KNOB - switch

1шт.

3

D74330

SWITCH

SWITCH - lamp, Includes: Ref. 4

1шт.

4

N7557

NUT

NUT - special, 3/8" - 24 NF, switch retaining

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

KEY SWITCH - without keys

1шт.

6

A77314

NUT

NUT - mounting

1шт.

7

A77313

SET OF 2 KEYS

KEY - ignition, set of two; metal without padding

1шт.

8

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1"

1шт.

9

195-2105

WASHER,1 1/16" x 1 3/4" x .065"

WASHER - flat, 1", special

1шт.

10

L71879

DIODE ELEMENT,400V, 3A

DIODE - alternator protecting

2шт.

11

D133074

ELECTRICAL WIRE

WIRE WIRE - ground, ignition switch

1шт.

12

D133075

ELECTRICAL WIRE

WIRE WIRE - ground

1шт.

13

D134659

BRACKET

BRACKET - relay mounting

1шт.

14

D75355

BRACKET

BRACKET - circuit breaker

1шт.

15

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

16

195-102

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

17

193-1006

NUT,Keps, w/LW, 1/4"-20

NUT AND LOCK WASHER - 1/4" - 20 NC, plated

4шт.

18

D123827

NUT

RETAINER - threaded insert, replace with 193-1000 locknut

3шт.

19

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 32 NF x 1/2"

3шт.

20

D128310

RELAY

RELAY - 30 amperes

2-3шт.

21

D78001

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 amperes

1шт.

22

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1-5шт.

23

A145925

GROMMET

GROMMET - harness, fuel gauge sender wire

1шт.

24

F5450

GROMMET

GROMMET - at air cleaner bracket, main, Serial Range: harness-filter

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

2шт.

26

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

CLAMP - medium closed, 3/4 inch diameter

1шт.

27

193-1000

NUT,Keps, w/LW,#10-32

NUT ASSEMBLY - includes lock washer, No. 10 NF

3шт.

28

REF

INSTRUCTION

TRIM - edge, 2-1/4" (57 mm) long, cut from F42827, see below

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116" (2946 mm) long

1шт.
