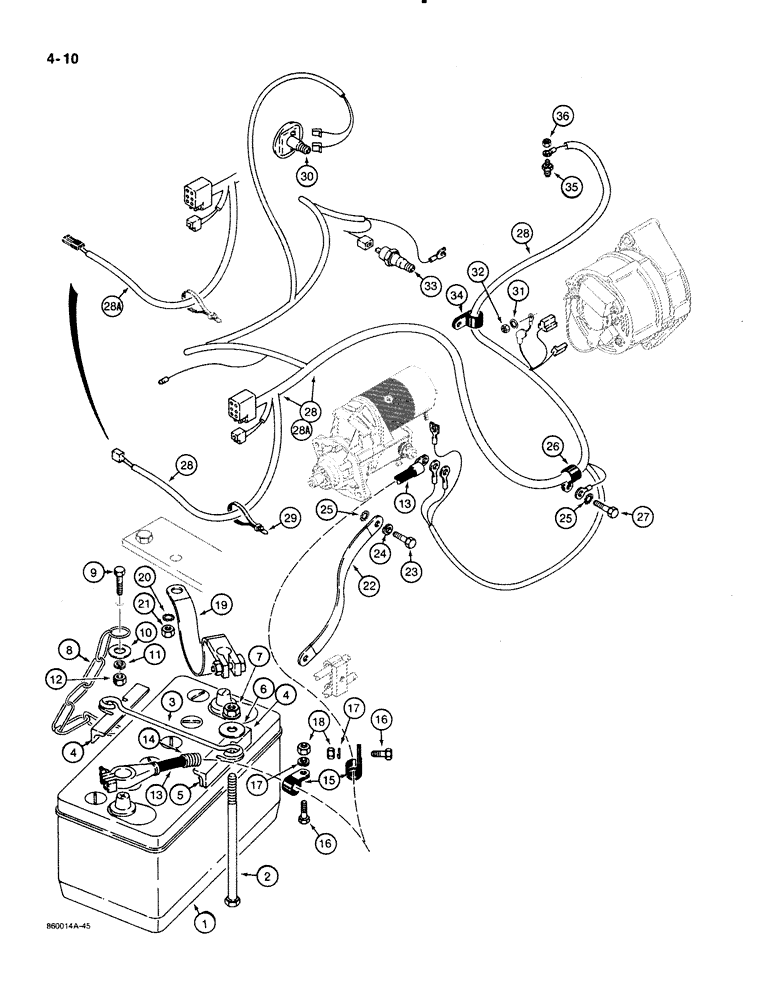

Запчасти Case 480E (4-10) - BATTERY AND ENGINE ELECTRICAL CIRCUIT, 480E MODELS ONLY (04) - ELECTRICAL SYSTEMS

1

A180406

BATTERY

BATTERY - 12 volt, service replacement, see Figures 9-98 and 9-100 for battery compartment

1шт.

2

115-217

BOLT,Hex, 3/8" - 16 x 10", Gr 2

BOLT - hex head, 3/8" - 16 NC x 10", grade 2

2шт.

3

D55561

RETAINER

RETAINER - battery hold down

1шт.

4

D125079

BRACKET

BRACKET - battery hold down

2шт.

5

D66072

SEALING STRIP

STRIP - rubber

1шт.

6

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

2шт.

7

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8 inch NC

2шт.

8

D75052

CHAIN (AG)

SPARE PART CHAIN - door stop

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

10

195-2034

WASHER,7/16" x 1 1/4" x .134"

WASHER - flat, 3/8", special, chain retaining

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

13

D80892

CABLE

CABLE - battery, positive

1шт.

14

D134214

GUARD

SLEEVE - rubber, positive cable

1шт.

15

R21385

CLAMP

CLAMP - battery cable

2шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

D73427

STRAP

STRAP - negative ground, 17 inch (432 mm) long, replaced by D83485 strap

1шт.

19

D83485

CABLE,300mm L

STRAP - negative ground, 12 inch (300 mm) long, see Figures 9-128 or 9-160 for cab or canopy mounting bolts

1шт.

20

193-85

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external tooth lock, 5/8", plated

1шт.

21

425-1410

JAM NUT,Jam, 5/8"-11, G5

NUT - hex jam, 5/8 inch NC

1шт.

22

D127018

STRAP

STRAP - starter to frame, ground, was D73383 strap

1шт.

23

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

25

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

26

T42284

CLAMP

CLAMP - harness mounting

1шт.

27

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

28

D133352

HARNESS

HARNESS - engine, used with S113435 neutral start switch on Figure 6-18

1шт.

28a

D140518

HARNESS

HARNESS - engine, used with D141061 neutral start switch on Figure 6-18

1шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

2шт.

30

REF

INSTRUCTION

SENDER - air cleaner restriction indicator, see Figure 2-6 for air cleaner and connecting parts

1шт.

31

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal-external tooth lock, 1/4 inch

1шт.

32

825-1106

NUT,Hex, M6, Cl 8

1шт.

33

A162297

SWITCH

SENDER - oil pressure gauge

1шт.

34

49768

CLIP

- harness, uses existing oil filter mounting bolts

1шт.

35

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine water temperature

1шт.

36

193-1000

NUT,Keps, w/LW,#10-32

NUT ASSEMBLY - includes lock washer, No. 10 NF

1шт.
