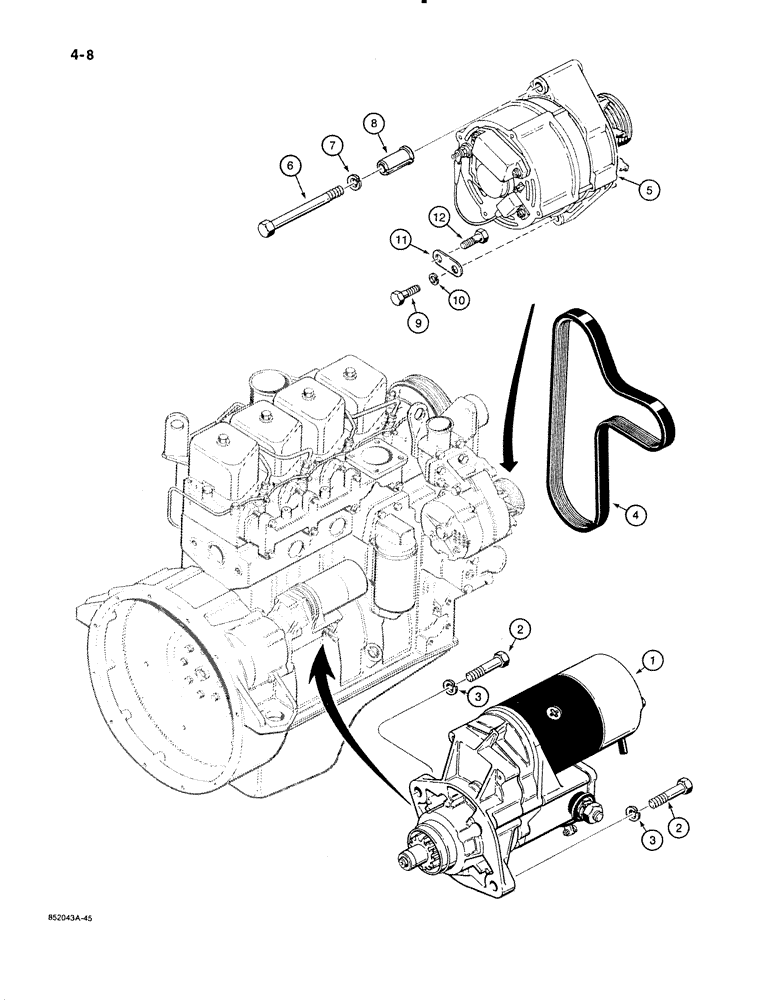

Запчасти Case 480E (4-08) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list Figures 4-4 and 4-6

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

BOLT - hex, 10 mm - 1.5 x 40 mm

2шт.

3

892-1110

LOCK WASHER,M10

2шт.

4

J903099

V-BELT,3.56 mm W x 1574.80 mm L, 8 Ribs

Alternator and Fan

1шт.

5

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical, parts list Figure 4-2

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

7

892-1110

LOCK WASHER,M10

1шт.

8

J902469

SPACER

SPACER - alternator

1шт.

9

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

BOLT - hex, 8 mm - 1.25 x 25 mm

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

J903089

SUPPORT

BRACE - alternator mounting

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.
