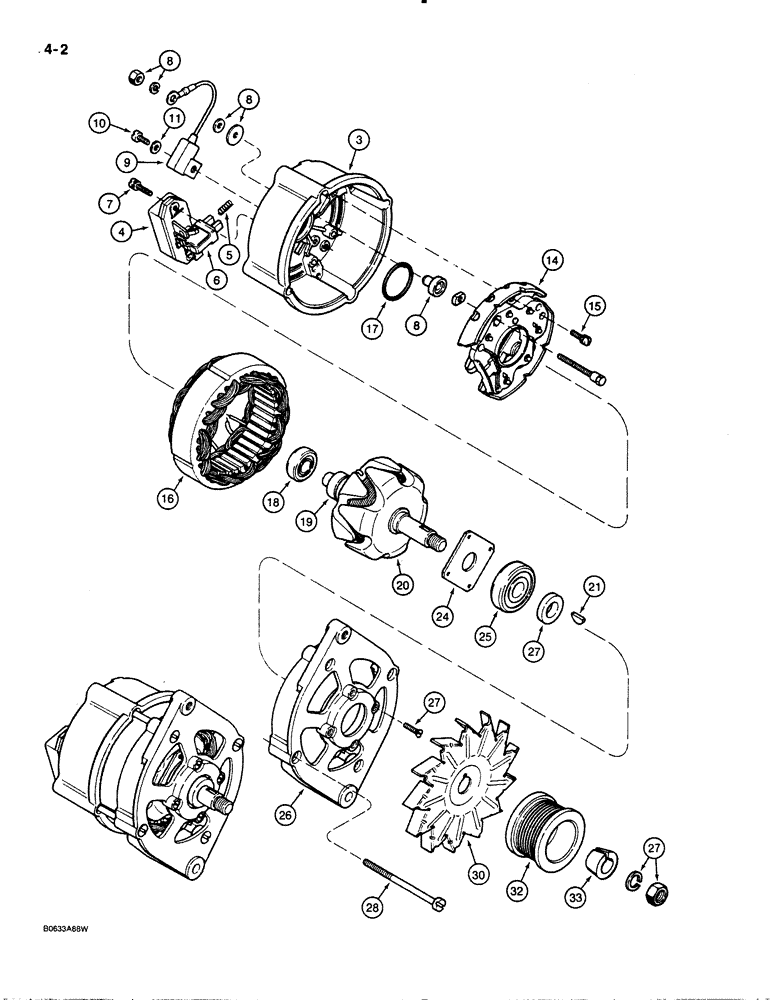

Запчасти Case 480E (4-02) - A186125 ALTERNATOR (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A186125
ALTERNATOR
ALTERNATOR ASSEMBLY - engine, 65 ampere, Includes: Ref. 3 - 28
1шт.
AR186125GV
ALTERNATOR
Value
1шт.
AR186125
REMAN-ALTERNATOR
Remanufactured Alternator
1шт.
AC186125
CORE-ALTERNATOR
Return Number
1шт.
103801A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 61 AMP Alternator
1шт.
103801A1C
CORE-ALTERNATOR
Return Number, 12 VOLT, 61 AMP Alternator
1шт.
87297230
REMAN-ALTERNATOR
Remanufactured Alternator, 12 volt 65 ampere
1шт.
87297231
CORE-ALTERNATOR
Return Number
1шт.
87297244
REMAN-ALTERNATOR
Remanufactured Alternator
1шт.
87297245
CORE-ALTERNATOR
Return Number, Alternator
1шт.
103802A1R
REMAN-ALTERNATOR
Remanufactured Alternator
1шт.
103802A1C
CORE-ALTERNATOR
Return Number, Alternator
1шт.
103799A1R
REMAN-ALTERNATOR
Remanufactured Alternator
1шт.
103799A1C
CORE-ALTERNATOR
Return Number, Alternator
1шт.
A187873
ALTERNATOR,12V, 65A
Alternator, 14V, 65 Amp
1шт.
AR187873
REMAN-ALTERNATOR
Remanufactured Alternator
1шт.
AC187873
CORE-ALTERNATOR
Return Number
1шт.
A187873GV
ALTERNATOR
Value, 14V, 65 Amp
1шт.
3
A186187
HOUSING
HOUSING - collector ring end
1шт.
4
A186189
REGULATOR
REGULATOR - voltage, Includes: Ref. 5 - 6
1шт.
5
NSS
NOT SOLD SEPARAT
SPRING - compression
2шт.
6
NSS
NOT SOLD SEPARAT
BRUSH ASSEMBLY - alternator
1шт.
7
A186194
SCREW,M4 x 18mm
Voltage regulator retaining
2шт.
8
3079135R1
TERMINAL CONNECTOR
KIT - hardware, terminal
1шт.
9
A186195
CAPACITOR
CAPACITOR - alternator
1шт.
10
625589C1
SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8
SCREW - fillister head, capacitor retaining
1шт.
11
A186196
WASHER
WASHER - retaining screw
1шт.
14
A186197
RECTIFIER
BRIDGE - rectifier, alternator
1шт.
15
A186188
SCREW
BOLT - with washer, rectifier bridge retaining
3шт.
16
A186192
STATOR
STATOR ASSEMBLY - alternator
1шт.
17
3079386R1
O-RING
O-RING - bearing
1шт.
18
A186186
BALL BEARING,12mm ID x 32mm OD x 10mm W
BEARING - ball, rotor, collector ring end
1шт.
19
A186185
RING
RING - collector
1шт.
20
A186184
ROTOR
ROTOR ASSEMBLY - alternator
1шт.
21
NSS
NOT SOLD SEPARAT
KEY - rotor (in 3078897R1 kit), not used in this application
1шт.
24
3078379R1
COVER
PLATE - bearing retaining
1шт.
25
A186183
BALL BEARING,17 mm ID x 47 mm OD x 14 mm
BEARING - ball, rotor, drive end
1шт.
26
A186182
HOUSING
HOUSING - drive end
1шт.
27
3078897R1
SET OF PARTS
KIT - rotor retaining
1шт.
28
A186193
BOLT,Pan, Cross Recess Phillips, M5 x 110mm
BOLT - cover retaining
4шт.
30
221425R1
FAN
FAN - alternator
1шт.
32
J908586
PULLEY - drive, no longer available, order J908560 pulley and J908563 retainer as a matched set
1шт.
32
J903560
PULLEY - drive
1шт.
33
J903333
RETAINER
RETAINER - pulley, no longer available, order J908560 pulley and J908563 retainer as a matched set
1шт.
33
J908563
RETAINER
RETAINER - pulley
1шт.
Выбрано товаров: 45
