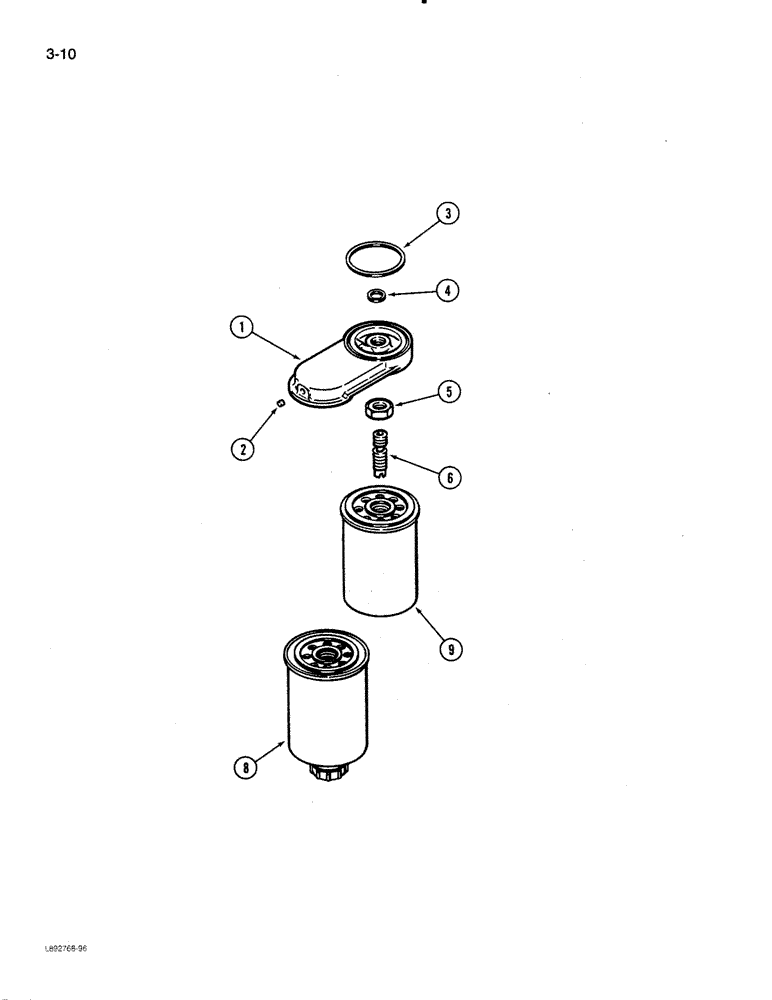

Запчасти Case 480E (3-10) - FUEL FILTER, 4-390 ENGINE (03) - FUEL SYSTEM

1

J904362

HEAD

HEAD ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

2

A77432

PLUG

PLUG - expansion, 0.26 mm OD

1шт.

3

84150002

SEALING RING

SEALRING 63.87 mm OD

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

NUT - hex, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

A77470

SEPARATOR

KIT - fuel, Includes: Ref. 8 - 9

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER - fuel, primary

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER - fuel, secondary

1шт.
