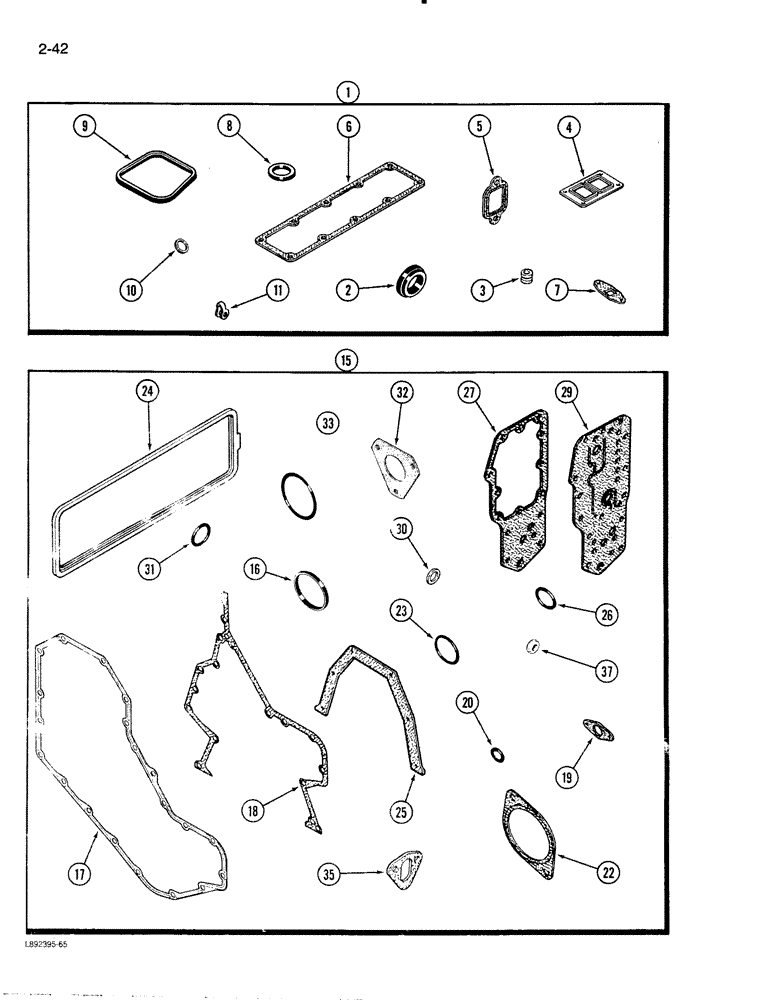

Запчасти Case 480E (2-42) - ENGINE GASKET KITS, 4-390 ENGINE, VALVE GRIND (02) - ENGINE

1

A77672

GASKET KIT

GASKET KIT - valve grind (Replaces A77481), Includes: Ref. 2 - 11

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-26.

1шт.

2

J903301

GASKET

GASKET - thermostat

1шт.

3

J901097

SEAL

SEAL - valve

8шт.

4

J901356

GASKET,0.5mm Thk

GASKET -, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

GASKET - exhaust manifold

4шт.

6

J914028

GASKET

GASKET - intake manifold (Replaces J901999)

1шт.

7

J914388

GASKET

GASKET - oil drain tube (Replaces J901805)

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

SEAL - oil fill cap

1шт.

9

J902666

GASKET

SEAL - rocker cover

4шт.

10

J900808

SEAL

SEAL - injector

4шт.

11

J903380

SEAL

SEAL - connector

4шт.

15

A77671

GASKET KIT

GASKET KIT - engine block (Replaces A77640), cyl, Includes: Ref. 16 - 37

1шт.

For complete engine overhaul, order 1 - cylinder block kit, 1 - valve grind kit, 1 - oil pan kit, Fig. 2-24, front and rear crankshaft seal kit, Fig. 2-36, and required cylinder head gasket, Fig. 2-26.

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

SEAL - cover, cyl block

1шт.

17

J914385

GASKET,1.02mm Thk

GASKET - cover to housing (Replaces J910500), cyl block

1шт.

18

J916131

GASKET

GASKET - housing to block (Replaces J907836), cyl

1шт.

19

J905595

GASKET

GASKET - pin housing, cyl block

1шт.

20

J913994

O-RING

O-RING - sealing (Replaces J903927), cyl block

1шт.

22

J913192

GASKET

GASKET - cover plate (Replaces A77441), cyl block

1шт.

23

22290R1

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

O-RING - sealing, cyl block

1шт.

24

J904056

GASKET

GASKET - tappet cover, cyl block

1шт.

25

J914386

GASKET

GASKET - seal retainer (Replaces J901019), cyl block

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, cyl block

1шт.

27

J914387

GASKET

GASKET - cooler core (Replaces J904427), cyl block

1шт.

29

J912532

GASKET

GASKET - filter head (Replaces J912638), cyl block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, cyl block

1шт.

32

J914389

GASKET

GASKET - fuel pump (Replaces J905685), cyl block

1шт.

33

A157927

O-RING,0.21" Thk x 6.225" ID, -362, Cl 5, 75 Duro

O-RING - flywheel housing, cyl block

1шт.

35

J914304

GASKET

GASKET - fuel lift pump (Replaces J904044), cyl block

1шт.

37

J900267

SEAL

SEAL ASSEMBLY - cover bolt, cyl block

4шт.
