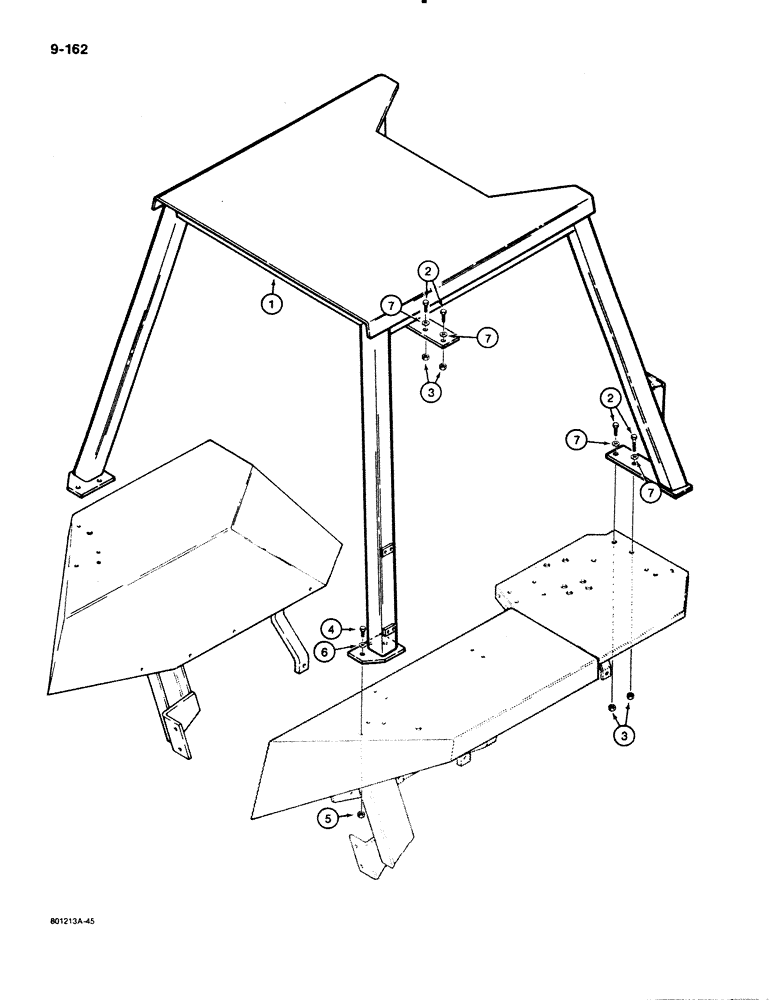

Запчасти Case 480E (9-162) - ROPS CANOPY, 480E LL MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CANOPY - ROPS, order from Machinery Price List

1шт.

2

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT, Hex, 5/8"-11 x 2", G8

4шт.

3

129-183

NUT,5/8"-11, G8

NUT, 5/8"-11, G8

4шт.

4

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

BOLT, Hex, 1/2"-13 x 2", G8

4шт.

5

129-184

NUT,1/2"-13, G8

NUT - hex, 1/2 inch NC, grade 8

4шт.

6

196-16

WASHER,.521" x 1" x .179", HDN

WASHER - flat, 1/2 inch, hardened

4шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, 5/8 inch, hardened

4шт.
