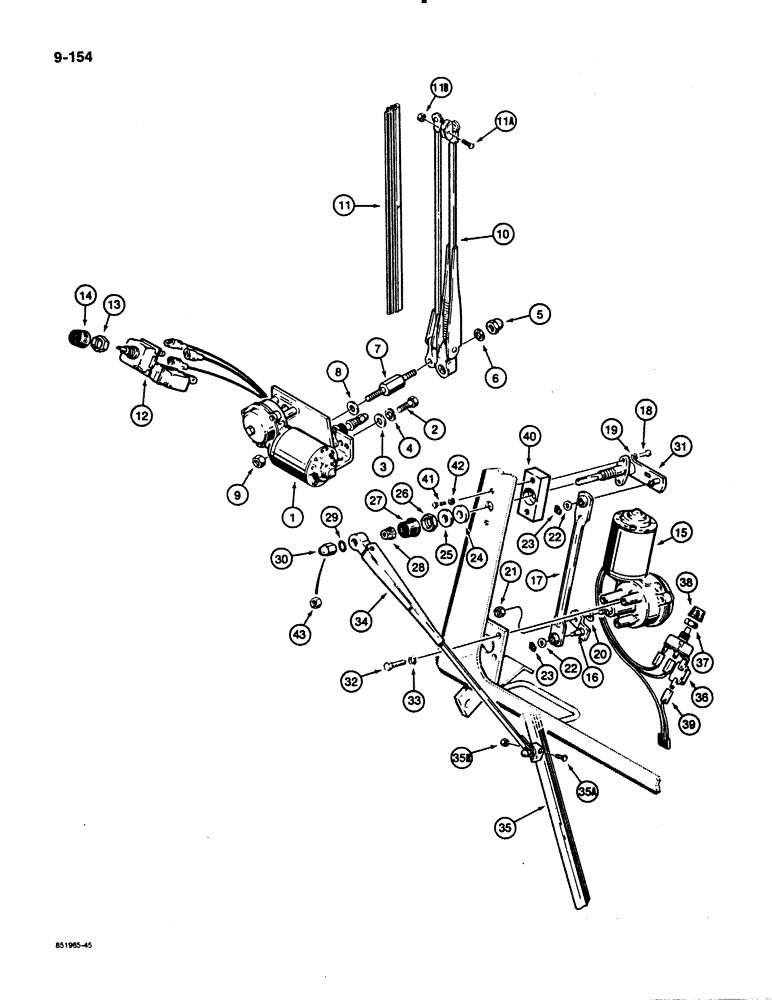

Запчасти Case 480E (9-154) - FRONT AND REAR WINDSHIELD WIPERS, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

MOTOR - windshield wiper, front, parts list Figure 9-158

1шт.

2

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

2шт.

3

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 3/64")

2шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

5

129-642

CROWN NUT,Crown, #10-24

DOME NUT - hex, No. 10, plated

1шт.

6

195-513

WASHER,#10

WASHER - flat, 7/32 x 1/2 x 1/16 inch

1шт.

7

F43960

STUD

STUD - windshield wiper arm

1шт.

8

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 3/64")

1шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

NUT, Jam, 1/4"-28, G5

1шт.

10

L35260

ARM

ARM - front windshield wiper, 20" (508 mm) long

1шт.

11

F42706

WINDSHIELD WIPER

BLADE - front windshield wiper, 19" (483 mm) long, Includes: Ref. 11A and 11B

1шт.

11a

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

11b

129-14

NUT,#5-40

NUT, , Blade attaching #5-40

1шт.

12

A42660

SWITCH

SWITCH - windshield wiper, front

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

NUT - hex, switch

1шт.

14

111282C1

KNOB

KNOB - switch, was A42578

1шт.

15

REF

INSTRUCTION

MOTOR - windshield wiper, rear, parts list Figure 9-158

1шт.

16

A36091

ARM

ARM - drive

1шт.

17

D71412

LINK

LINK - drive

1шт.

18

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

SCREW - machine, pan head, No. 10 NF x 1/2 inch

2шт.

19

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

20

D71411

WASHER

WASHER - wave

1шт.

21

F44452

LOCK NUT

NUT - hex, special lock

1шт.

22

A22431

WASHER

SPACER - pivot shaft

2шт.

23

D71414

CLIP

CLIP - spring

2шт.

D71415

SHAFT

SHAFT ASSEMBLY - pivot, Includes: Ref. 24 - 31

1шт.

24

D71417

SPECIAL WASHER

WASHER - flat, fiber

1шт.

25

D71418

WASHER

WASHER - flat, steel

1шт.

26

D71419

NUT

NUT - hex jam

1шт.

27

D71420

CAP

CAP - shaft

1шт.

28

D71421

TOOL

DRIVER - knurled

1шт.

29

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

30

D71422

NUT

NUT - hex, cap, pivot shaft, may be replaced with Ref. 43 nut

1шт.

31

NSS

NOT SOLD SEPARAT

SHAFT - pivot

1шт.

32

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT, Hex, 1/4"-28 x 5/8", G5, Full Thd

3шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

34

A165060

WIPER ARM

ARM, WIPER ARM - rear windshield wiper, 18" (457 mm) long

1шт.

35

F43938

WIPER BLADE

BLADE, WIPER BLADE - rear windshield wiper, 22" (559 mm) long, Includes: Ref. 35A and 35B

1шт.

35a

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW - No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

35b

129-14

NUT,#5-40

NUT, , Blade attaching #5-40

1шт.

36

A42660

SWITCH

SWITCH - rear windshield wiper

1шт.

37

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

NUT - hex, switch mounting

1шт.

38

111282C1

KNOB

KNOB - switch, was A42578

1шт.

39

F93877

ELECTRICAL WIRE

WIRE WIRE - rear windshield wiper to wiper switch

1шт.

40

R37439

BLOCK

BLOCK - mounting, rear windshield wiper

1шт.

41

26-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 8

BOLT - hex, 5/16 NC x 1/2 inch

2шт.

42

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

43

129-118

NUT

NUT - hex, 5/16" - 32 National Extra Fine threads, if used

1шт.
