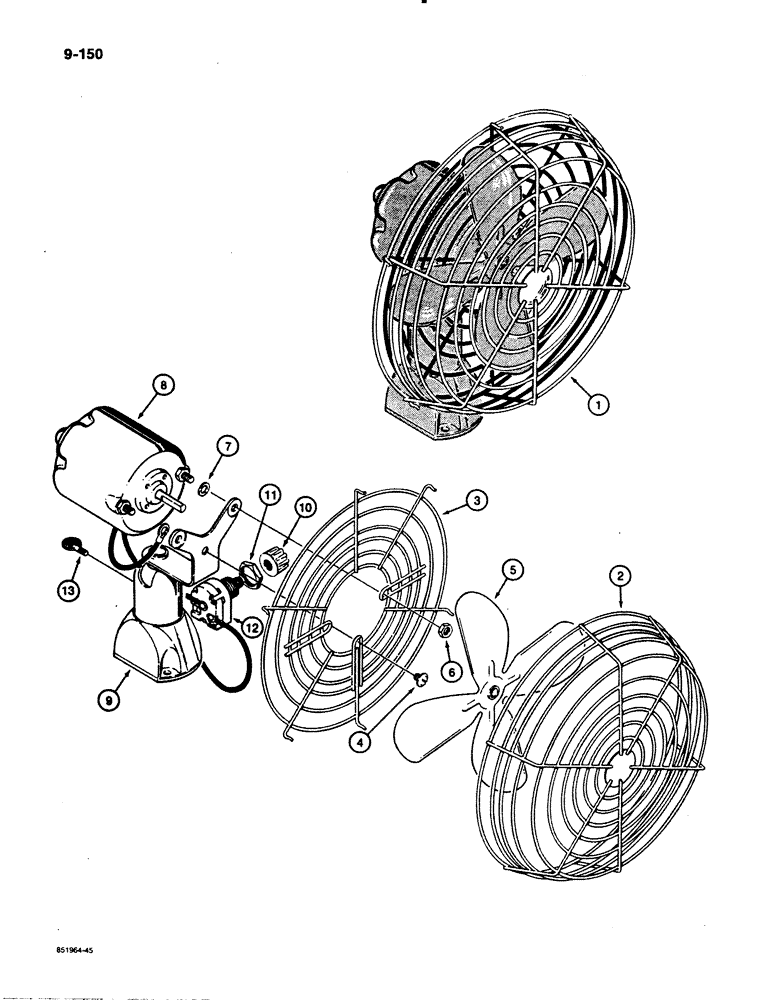

Запчасти Case 480E (9-150) - WINDOW DEFROSTER FAN, WITH FOUR BOLT BASE, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

L13468

FAN

FAN - defroster, four bolt base, Includes: Ref. 2 - 13

1шт.

2

L30907

GUARD

GRILLE - fan, front

1шт.

3

L30904

GRILLE

GRILLE - fan, back

1шт.

4

L30906

BOLT

BOLT - special

1шт.

5

L30902

FAN

BLADE - fan

1шт.

6

129-36

NUT,#8-36

NUT - hex, No. 8 - 36 NF, plated

2шт.

7

L35760

WASHER

WASHER - special

1шт.

8

A44571

MOTOR, ELECTRIC

MOTOR - fan

1шт.

9

L30900

BASE

BASE - fan

1шт.

10

L30909

KNOB

KNOB - control

1шт.

11

L30908

NUT

SPARE PART NUT - hex, special

1шт.

12

N9113

SWITCH

SWITCH - control, with wire leads

1шт.

13

L30910

SCREW

SCREW - thumb

1шт.
