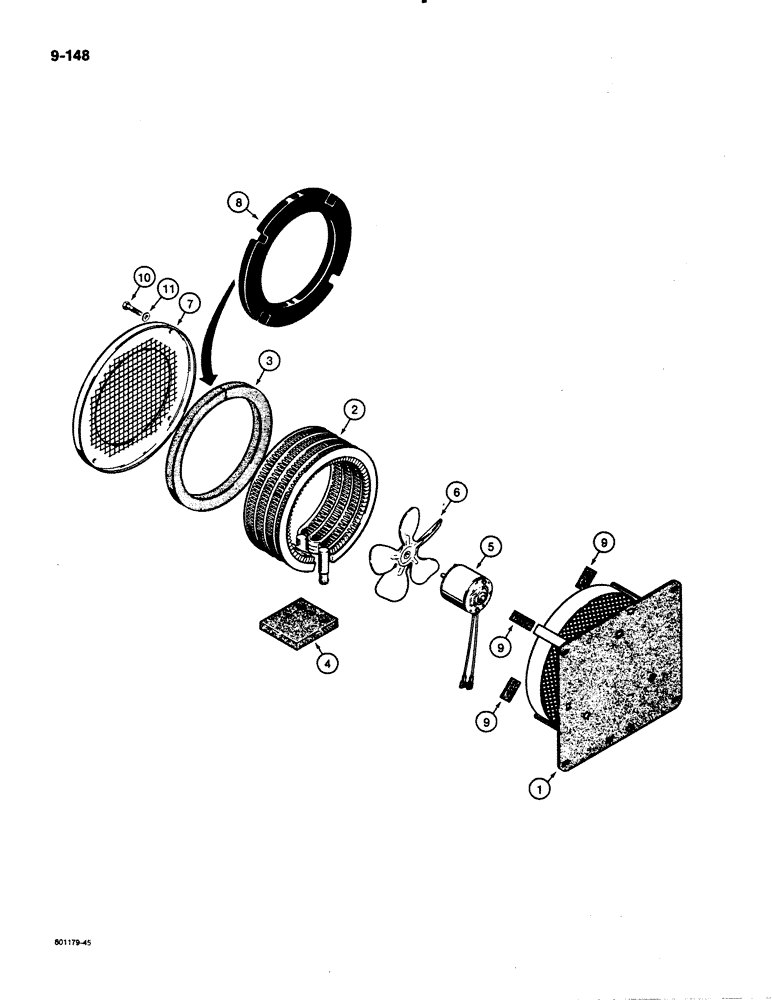

Запчасти Case 480E (9-148) - CAB HEATER, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

D120191

HEATER

HEATER ASSEMBLY - cab, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - heater

1шт.

2

N6518

HEATER ASSY.

CORE - heater

1шт.

3

D83118

ISOLATOR

INSULATOR - heater

1шт.

4

N6519

SEAL

GASKET - heater core

1шт.

5

F43811

MOTOR

MOTOR - heater

1шт.

6

F43812

FAN

FAN - heater, 8" (203 mm) diameter

1шт.

7

F43813

GRILLE

COVER - heater

1шт.

8

D83121

GASKET

SEAL - cover

1шт.

9

D83120

FELT

SEAL - felt

3шт.

10

187-996

SELF-TAP SCREW,1/4" x 1"

SCREW - hex head, self-tapping, 1/4" - 14 thread x 1"

4шт.

11

195-102

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.
