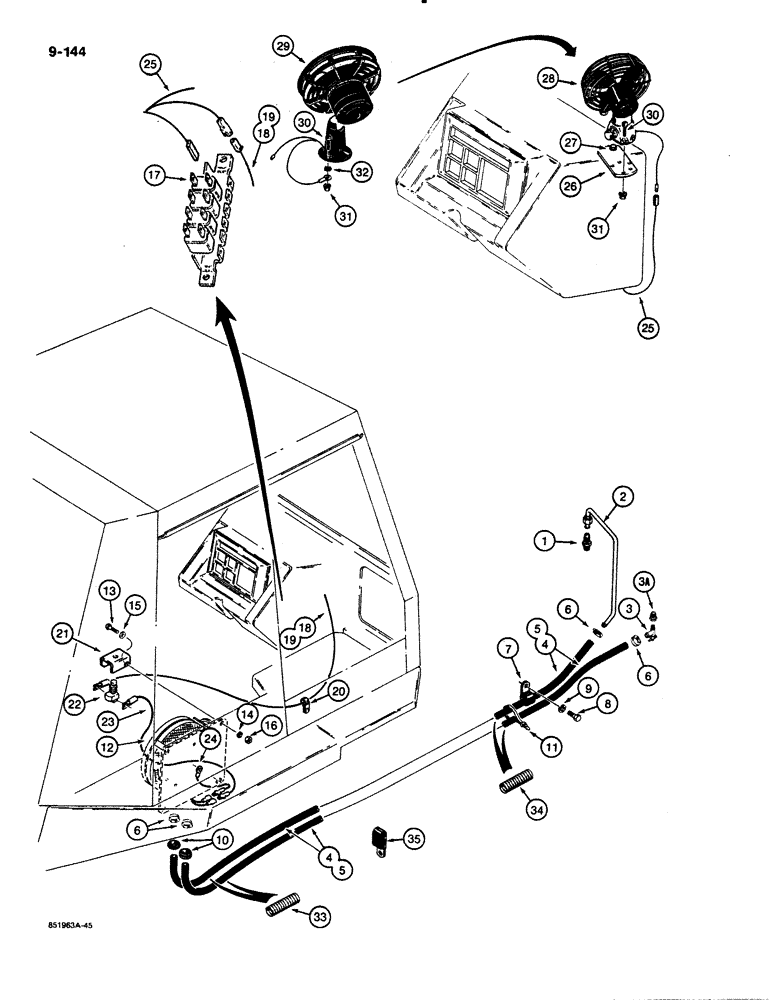

Запчасти Case 480E (9-144) - CAB HEATER LINES AND DEFROSTER, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 x 1/2 PT, at water pump, upper

1шт.

2

D131677

TUBE ASSY.

TUBE - engine, Serial Range: block-hose

1шт.

3

A16764

VALVE

VALVE - water shut-off, at water pump, lower

1шт.

3a

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

At water pump, lower

1шт.

4

REF

INSTRUCTION

HOSE - heater, models with heater on right-hand side of cab, 92" (2337 mm) long, if used

2шт.

5

REF

INSTRUCTION

HOSE - heater, models with heater on left-hand side of cab, 128" (3251 mm) long, if used

2шт.

6

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose retaining, N0. 10 type F

4шт.

7

S88820

CLAMP

CLAMP - hose to engine block

1шт.

8

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

10

D73137

GROMMET

GROMMET - heater hose at floor plate

2шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

12

D120191

HEATER

HEATER - cab, parts list Figure 9-148

1шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3-4шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3-4шт.

15

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

3-4шт.

16

425-105

NUT,5/16"-18, G5

3-4шт.

17

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

18

D75588

ELECTRICAL WIRE

WIRE WIRE - circuit breaker to heater switch, models with heater on right-hand side of cab, 80" (2032 mm) long, if used

1шт.

19

D75817

ELECTRICAL WIRE

WIRE WIRE - circuit breaker to heater switch, models with heater on left-hand side of cab, 95" (2413 mm) long, if used

1шт.

20

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

CLAMP - circuit breaker wire to floor plate, use fender mounting hardware

3шт.

21

D86924

BRACKET

BRACKET - heater switch mounting

1шт.

22

D75650

SWITCH

SWITCH - heater

1шт.

23

D75652

ELECTRICAL WIRE

WIRE WIRE -, Serial Range: switch-heater

1шт.

24

D69902

ELECTRICAL WIRE

WIRE WIRE - heater ground

1шт.

A42610

LARGE HOSE

HOSE,LARGE HOSE - bulk roll, 50 ft (1524 cm) long

1шт.

25

D75454

ELECTRICAL WIRE

WIRE WIRE - circuit breaker to defroster fan

1шт.

26

D80897

LARGE PLATE

PLATE, LARGE PLATE - fan mounting

1шт.

27

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Use with instrument panel mounting bolt to mount fan plate Int Tooth, 5/16"

1шт.

28

L13468

FAN

FAN - defroster, four bolt base, parts list Figure 9-150, if used

1шт.

29

D87694

FAN

FAN - defroster, three bolt base, parts list Figure 9-152, if used

1шт.

30

169-137

MACHINE SCREW - Fillister head, No. 10 - 24 NC x 5/8"

3-4шт.

31

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT ASSEMBLY - includes lock washer, No. 10 NC, if used

3-4шт.

32

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, , If used Ext-Int Tooth, #10

1шт.

33

D120221

GUARD

GUARD - hose, 28" (711 mm) long, over transaxle support channel

2шт.

34

REF

INSTRUCTION

GUARD - hose, 10" (254 mm) long, cut from D120221 guard (item 33), below rear engine mount

2шт.

35

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

CLAMP - double, holds heater hoses over transaxle support channel on models with heater on left-hand side of cab, if used

1шт.
