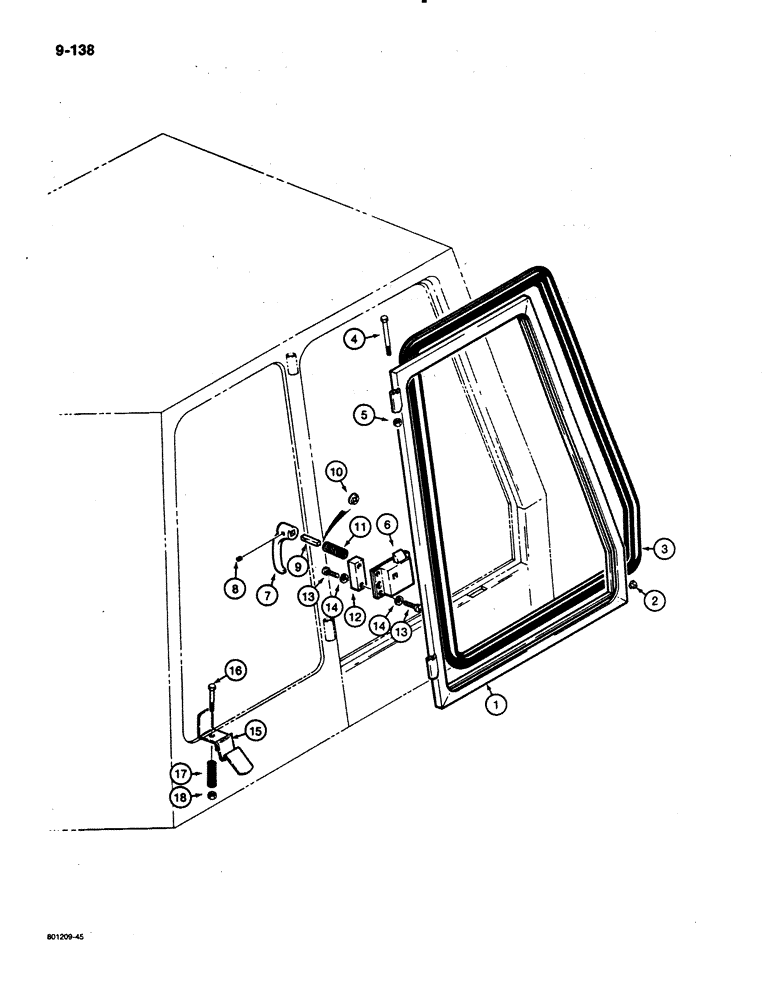

Запчасти Case 480E (9-138) - CAB RIGHT-HAND WINDOW, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

F96694

WINDOW

FRAME - front window, right-hand

1шт.

2

353-62

PLUG,Cap, .302" OD

PLUG - plastic, window frame sides and top

8шт.

3

REF

INSTRUCTION

SEAL - right-hand window, 113" (2870 mm) long, cut from F43086

1шт.

4

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 4 1/2", G5

2шт.

5

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

6

F93892

LOCK

LATCH - window, left-hand

1шт.

7

F43966

HANDLE

HANDLE - window

1шт.

8

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

SET SCREW - hex socket, No. 10 - 32 NF x 1/4", cone point

1шт.

9

F93880

SHAFT

SHAFT - window latch

1шт.

10

131-638

PUSH-ON NUT

NUT - push on, shaft

1шт.

11

F43968

SPRING

SPRING - window latch

1шт.

12

F43980

BLOCK

BLOCK - tapped, window latch

1шт.

13

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 3/8"

8шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

15

F44590

SUPPORT

LATCH - window retainer, rear swing back, right-hand and left-hand windows

2шт.

16

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

BOLT, Hex, 1/4"-20 x 1 1/4", G5

2шт.

17

D36669

SPRING

SPRING - window latch

2шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

F43086

SEAL

SEAL - bulk roll, 100 ft (3048 cm) long

1шт.
