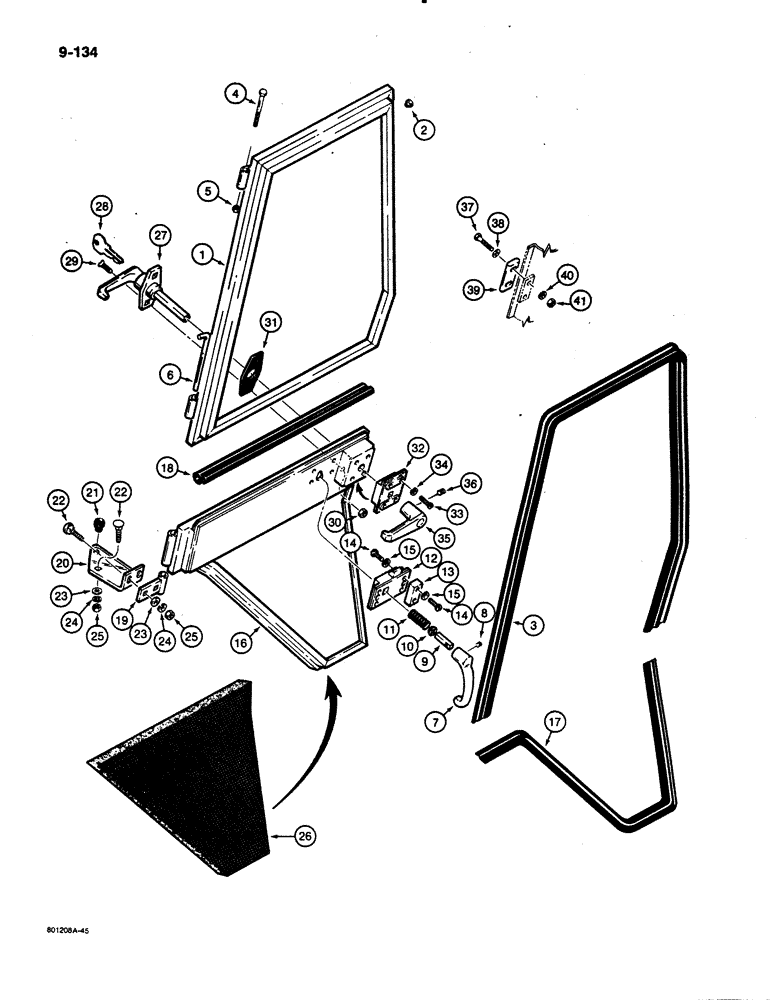

Запчасти Case 480E (9-134) - CAB DOOR AND LEFT-HAND WINDOW, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

F96695

WINDOW

FRAME - front window, left-hand

1шт.

2

353-62

PLUG,Cap, .302" OD

PLUG - plastic, window frame sides and top

8шт.

3

REF

INSTRUCTION

SEAL - left-hand window, 90" (2286 mm) long, cut from F43086 bulk

1шт.

4

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 4 1/2", G5

1шт.

5

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

1шт.

6

F42100

PIN

PIN - window and door

1шт.

7

F43966

HANDLE

HANDLE - window, Includes: Ref. 8

1шт.

8

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

SET SCREW - hex socket, No. 10 - 32 NF x 1/4", cone point

1шт.

9

F93880

SHAFT

SHAFT - window latch, Includes: Ref. 10

1шт.

10

131-638

PUSH-ON NUT

NUT - push on, shaft

1шт.

11

F43968

SPRING

SPRING - window latch

1шт.

12

F93884

LOCK

LATCH - window, right-hand

1шт.

13

F43964

BLOCK

BLOCK - tapped, window latch

2шт.

14

182-540

SCREW,Sl Pan Hd, 1/4" - 20 x 3/8"

MACHINE SCREW - pan head slotted, 1/4" - 20 NC x 3/8"

8шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

16

F93883

DOOR

DOOR - cab, does not include latches

1шт.

18

REF

INSTRUCTION

SEAL - top of door, 23-3/4" (602 mm) long, cut from F43086 bulk

1шт.

19

F44591

HINGE

HINGE - door

1шт.

20

R37339

BRACKET

BRACKET - door stop

1шт.

21

L60224

BUMPER

BUMPER - rubber, door stop

1шт.

22

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

3шт.

23

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

3шт.

24

492-11038

LOCK WASHER,3/8"

3шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

26

F45256

FOAM

PAD - foam, door panel

1шт.

F43086

SEAL

SEAL - bulk roll, 100 ft (3048 cm) long

1шт.

F44619

SEAL

SEAL - bulk roll, 100 ft (3048 cm) long

1шт.

345-44

ADHESIVE

ADHESIVE - for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.

27

F93842

HANDLE

HANDLE - door, outside, includes keys, Includes: Ref. 28

1шт.

28

A42653

SET OF 2 KEYS

KEY - handle

2шт.

29

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

MACHINE SCREW - oval Phillips head, No. 10 - 24 NC x 5/8"

2шт.

30

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

31

F63860

GASKET

GASKET - door handle

1шт.

32

F98123

LATCH

LATCH - door

1шт.

33

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

SCREW - machine, pan head, No. 10 NF x 1/2 inch

4шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

35

F63925

HANDLE

HANDLE - door, inside, Includes: Ref. 36

1шт.

36

176-49

SET SCREW - slotted, 5/16" - 18 NC x 5/16", cone point

1шт.

37

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

38

195-518

WASHER,1/4", SAE

(9/32 x 5/8 x 3/64")

2шт.

39

F63783

CATCH

STRIKER - door latch

1шт.

40

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

41

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.
