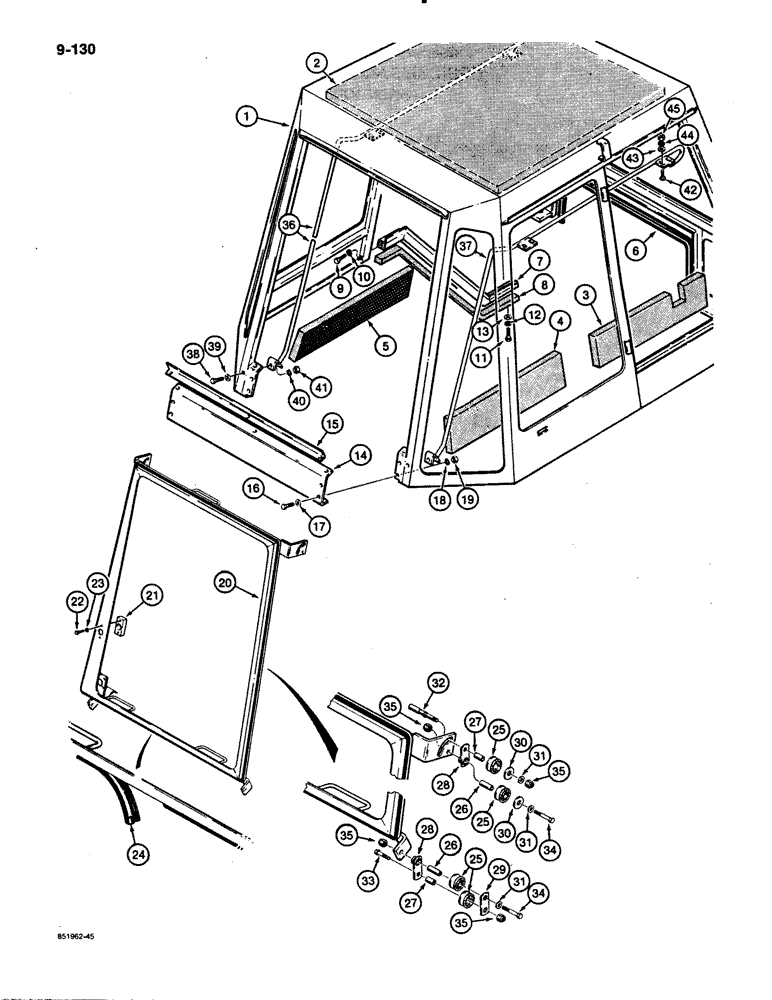

Запчасти Case 480E (9-130) - CAB FRAME AND REAR WINDOW, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

F45257

ROOF

PAD - headliner, cab top

1шт.

3

F45255

FOAM

PAD - foam, right-hand, front panel

1шт.

4

F45253

FOAM

PAD - foam, right-hand rear panel

1шт.

5

F45254

FOAM

PAD - foam, left-hand rear panel

1шт.

6

REF

INSTRUCTION

SEAL- cowl, 55" (1397 mm) long, cut from F43086 bulk

1шт.

7

F93886

FRAME

FRAME - door

1шт.

8

REF

INSTRUCTION

SEAL - door frame to fender, 34-1/2" (876 mm) long, cut from F44595 bulk

1шт.

9

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

14

F43958

PANEL

PANEL - lower, rear

1шт.

15

F43959

ANGLE

ANGLE - seal, lower panel

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

17

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

7шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

19

425-105

NUT,5/16"-18, G5

7шт.

20

F96874

FUNNEL

FRAME FRAME - rear window

1шт.

21

R37439

BLOCK

BLOCK - wiper mounting

1шт.

22

26-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 8

BOLT - hex, 5/16 NC x 1/2 inch

2шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

REF

INSTRUCTION

SEAL - rear window, 144" (3658 mm) long, cut from F43086 bulk

1шт.

F43086

SEAL

SEAL - bulk roll, 100 ft (3048 cm)

1шт.

F44595

SEALING STRIP

SEAL - bulk roll, self-adhesive, 50 ft (1524 cm)

1шт.

345-44

ADHESIVE

ADHESIVE - for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.

25

F43589

ROLLER

ROLLER - rear window

8шт.

26

F45286

BUSHING

SPACER - roller, long

4шт.

27

F45287

BUSHING

SPACER - roller, short

4шт.

28

F96872

ARM

ARM - roller

4шт.

29

F45288

PLATE

LINK - rear window, lower

2шт.

30

F45290

WASHER

WASHER - special

4шт.

31

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

6шт.

32

F45289

PIN,9.53mm OD x 91.44mm L

PIN - roller lock, 3/8" - 16 NC x 3-9/16"

2шт.

33

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

34

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

4шт.

35

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8" - 16 NC, plated

8шт.

36

F93879

TRACK CHAIN

TRACK - left-hand, rear window

1шт.

37

F93878

TRACK CHAIN

TRACK - right-hand, rear window

1шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

39

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

2шт.

40

492-11038

LOCK WASHER,3/8"

2шт.

41

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

42

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

8шт.

43

195-102

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

8шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

45

425-105

NUT,5/16"-18, G5

8шт.
