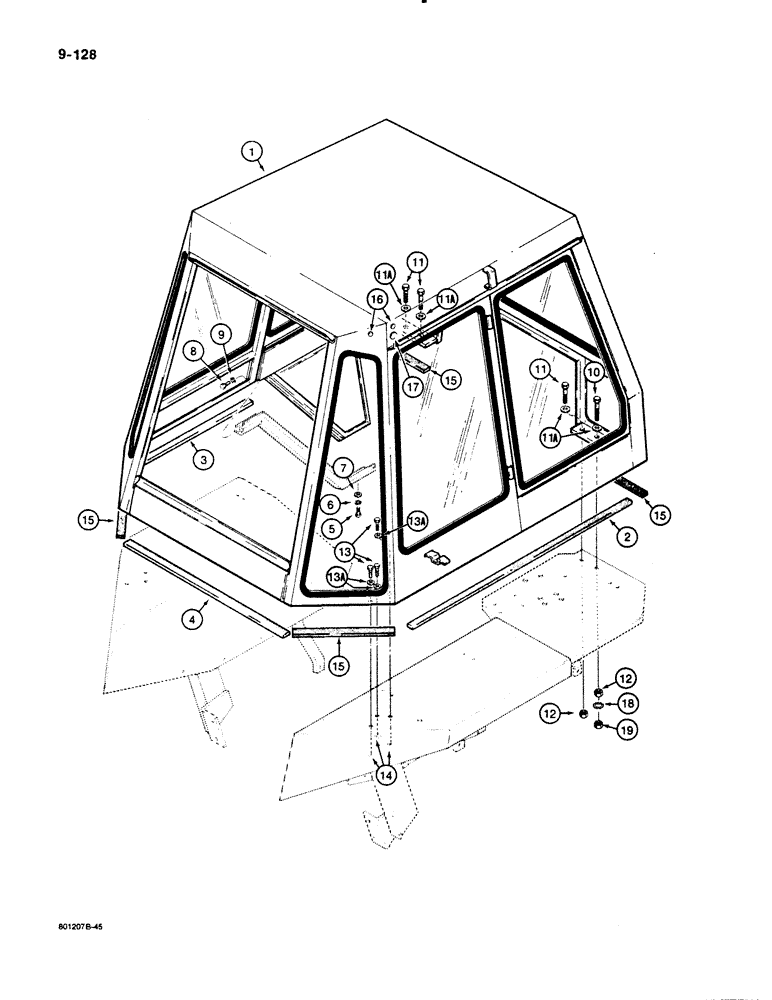

Запчасти Case 480E (9-128) - ROPS CAB AND MOUNTING PARTS, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - ROPS, order from Machinery Price List, parts list Figures 9-130 through 9-158

1шт.

The Pt. No. for the complete cab is F96861

1шт.

2

REF

INSTRUCTION

SEAL - fender, right-hand, 52-5/8" (1336 mm) long, cut from F44595 bulk roll

1шт.

3

REF

INSTRUCTION

SEAL - fender, left-hand, 27-11/16" (704 mm) long, cut from F44595 bulk roll

1шт.

4

F43996

RUBBER SEAL,25.4mm W x 932.179mm L x 19.05mm Thk

RUBBER SEAL SEAL - rear panel

1шт.

5

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

113-684

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SPARE PART BOLT, Hex, 5/8"-11 x 2 1/2", G8

1шт.

11

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT, Hex, 5/8"-11 x 2", G8

3шт.

11a

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8 inch

4шт.

12

129-183

NUT,5/8"-11, G8

NUT, 5/8"-11, G8

4шт.

13

113-2441

BOLT,Hex, 1/2" - 13 x 2", Gr 8

BOLT, Hex, 1/2"-13 x 2", G8

6шт.

13a

196-16

WASHER,.521" x 1" x .179", HDN

WASHER - hardened, 1/2 inch

6шт.

14

129-184

NUT,1/2"-13, G8

NUT - hex, 1/2 inch NC, grade 8

6шт.

15

REF

INSTRUCTION

SEAL - front and rear corners, cut from A42676 bulk roll

1шт.

16

353-403

PLUG,Dome, .437" hole, Nylon

Upper, If used

4шт.

17

353-405

PLUG,Dome, .562" hole, Nylon

PLUG - button, 9/16 inch, lower, if used

2шт.

18

193-85

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external tooth lock, 5/8", plated

1шт.

19

425-1410

JAM NUT,Jam, 5/8"-11, G5

NUT - hex, jam, 5/8 inch NC

1шт.

A42676

SEAL

SEAL - strip, bulk roll, self-adhesive, 25 ft (762 cm)

1шт.

F44595

SEALING STRIP

SEAL - strip, bulk roll, self-adhesive, 50 ft (1524 cm)

1шт.
