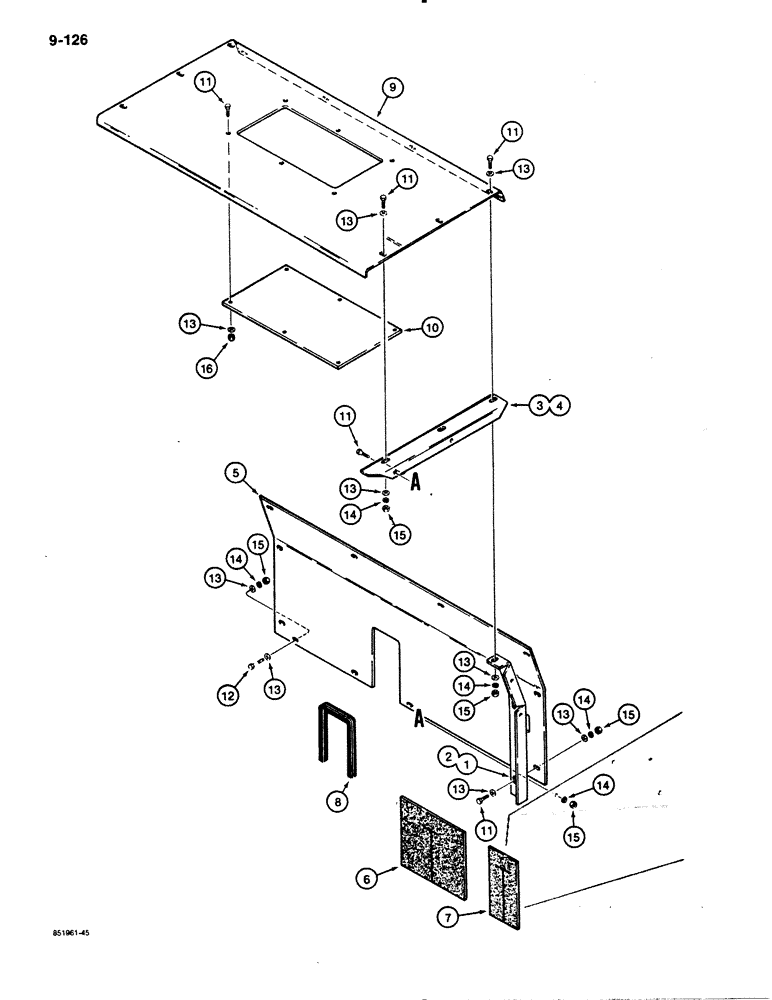

Запчасти Case 480E (9-126) - REAR CLOSURE PANELS, MODELS WITHOUT BACKHOE, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D71028

ANGLE

BRACKET - right-hand side

1шт.

2

D71029

ANGLE

BRACKET - left-hand side

1шт.

3

D71026

ANGLE

BRACKET - right-hand top

1шт.

4

D71027

ANGLE

BRACKET - left-hand top

1шт.

5

D122229

PANEL

CLOSURE PANEL - vertical

1шт.

6

D99801

FOAM

PAD - foam, closure panel

1шт.

7

D122818

PAD - foam, closure panel, 3-15/16" (100 mm) x 8-1/2" (210 mm), cut from D99801 (Ref. 6)

1шт.

8

REF

INSTRUCTION

TRIM - edge, 18-5/8" (472 mm) long, cut from F42827, see below

1шт.

9

D74846

PANEL

SPARE PART CLOSURE PANEL - horizontal

1шт.

10

D74847

WINDOW

WINDOW - Lexan, horizontal closure panel

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

28шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

13

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

40шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

25шт.

15

425-105

NUT,5/16"-18, G5

25шт.

16

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

Hex

6шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116" (2946 mm) long

1шт.
