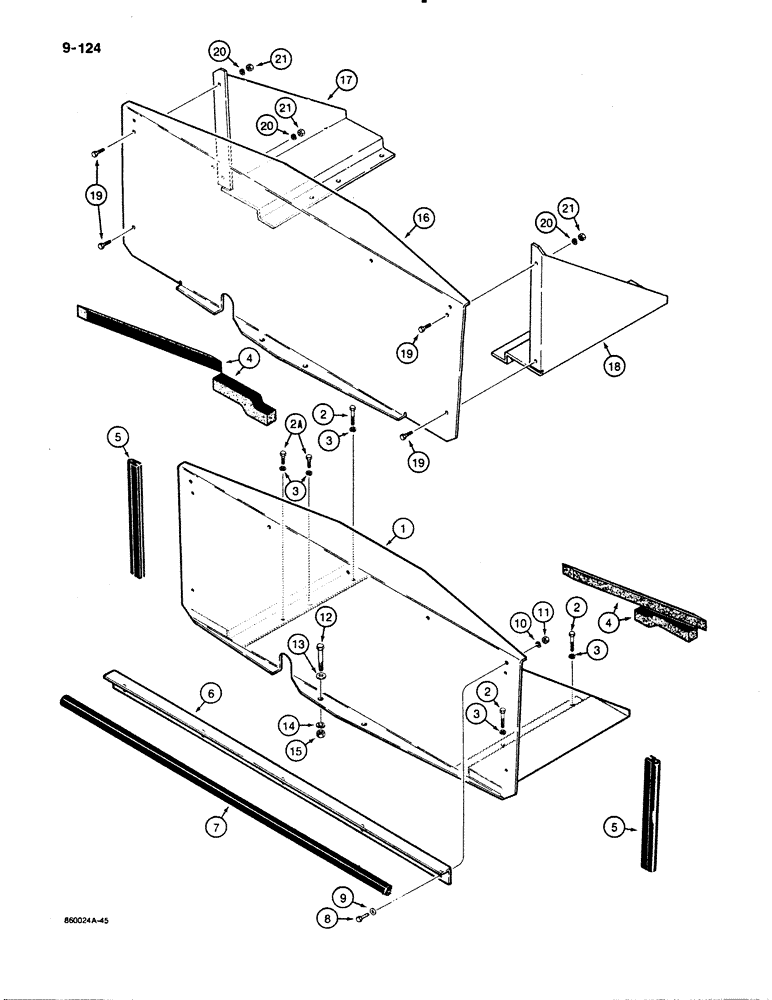

Запчасти Case 480E (9-124) - REAR CLOSURE PANELS, MODELS WITH BACKHOE, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D123223
PANEL
CLOSURE PANEL - rear, welded one piece, no longer available, order D143501 three piece closure panel kit below
1шт.
2
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
BOLT - hex, 5/16 NC x 1-1/2 inch
3шт.
2a
413-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
2шт.
4
REF
INSTRUCTION
SEAL - rear closure panel, 22" (559 mm) long, cut from L35741 bulk, see below
2шт.
5
REF
INSTRUCTION
SEAL - rubber, rear closure panel, 10-13/16" (275 mm) long, cut from F64773 bulk, see below
2шт.
6
D99720
ANGLE
BRACKET - top, rear closure panel
1шт.
7
REF
INSTRUCTION
TRIM - edge, 38" (965 mm) long, cut from D52812 bulk, see below
1шт.
8
113-3
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd
5шт.
9
195-102
WASHER,1/4"
flat, 5/16 x 3/4 x 1/16 inch
5шт.
10
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
11
425-104
NUT,1/4"-20, Cl 5
NUT - hex, 1/4 inch NC
5шт.
12
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
2шт.
13
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Flat, (13/32 x 13/16 x 1/16")
2шт.
14
492-11038
LOCK WASHER,3/8"
2шт.
15
425-106
NUT,3/8"-16, Cl 5
NUT, 3/8"-16, G5
2шт.
D143501
PANEL
KIT - closure panel, rear, three piece, Includes: Ref. 16 - 21
1шт.
16
D143505
PANEL ASSY.
PANEL - rear closure, includes D143500 and 321-4481 decals plus D87870 reflector, See Figures 9-168 and 9-170
1шт.
17
D99723
PLATE
PLATE - right-hand mounting, closure panel
1шт.
18
D99724
PLATE
PLATE - left-hand mounting, closure panel
1шт.
19
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
4шт.
20
492-11038
LOCK WASHER,3/8"
4шт.
21
425-106
NUT,3/8"-16, Cl 5
NUT, 3/8"-16, G5
4шт.
D52812
RUBBER STRIP
TRIM - edge, 83" (2108 mm) long
1шт.
L35741
FOAM
SEAL - foam, bulk, 50 ft (1524 cm) long
1шт.
F64773
DOOR SEAL
SEAL - rubber, bulk, 15 ft (457 cm) long
1шт.
Выбрано товаров: 26
