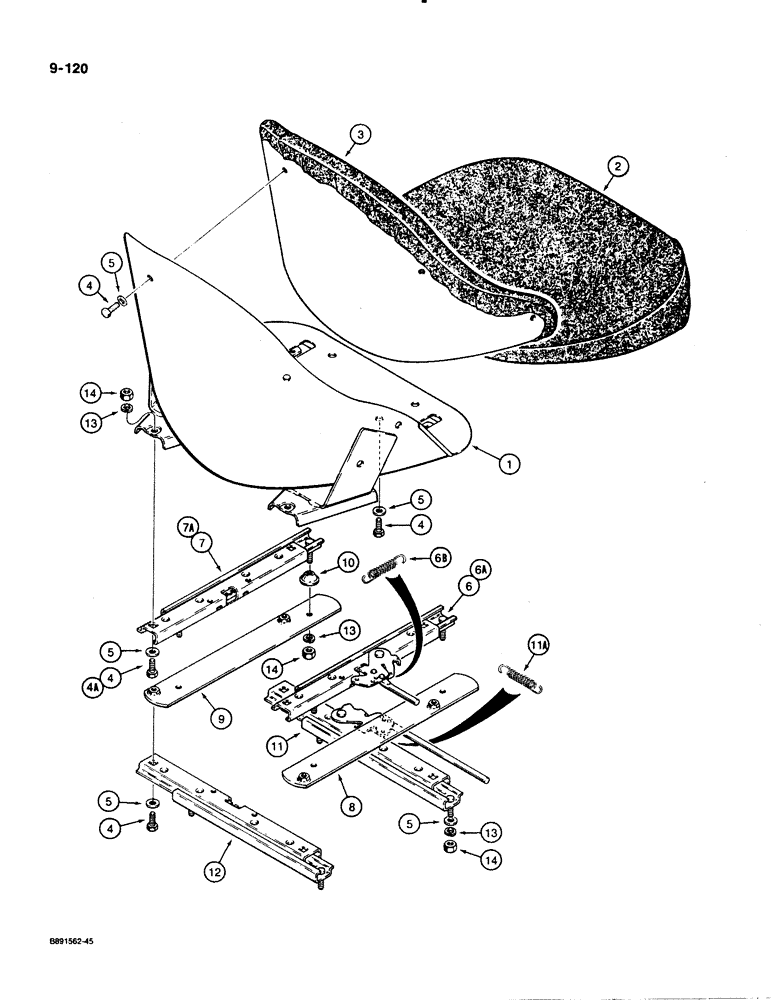

Запчасти Case 480E (9-120) - D124540 DELUXE SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D124540

SEAT ASSY.

SEAT ASSEMBLY - deluxe, bucket type, brown, may be used on all models, Includes: Ref. 1 - 14

1шт.

See Figure 9-116 and 9-118 for other seats.

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8761

CUSHION

CUSHION - seat, brown

1шт.

3

N8762

CUSHION

BACKREST - seat, brown

1шт.

4

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

BOLT, Hex, 5/16"-18 x 5/8", G5, Full Thd

11-15шт.

4a

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, , If used Hex, 5/16"-18 x 1/2", G5, Full Thd

4шт.

5

195-103

WASHER,5/16"

WASHER - flat, 3/8 x 7/8 x 5/64 inch

19шт.

6

L35490

ADJUSTER

SLIDE - rail, right hand, with adjuster, uses 5/8 inch long bolt no longer available, order N13606 and N13607 slides and (4) 113-101 bolts

1шт.

6a

N13606

ADJUSTER

SLIDE - rail, right hand, with adjuster, uses 1/2 inch long bolt

1шт.

6b

L35503

SPRING

SPRING - return, slide, L35490 or N13606 slide

1шт.

7

D56887

SEAT

SLIDE - rail, left hand, uses 5/8 inch long bolt, no longer available, order N13606 and N13607 slides and (4) 113-101 bolts

1шт.

7a

N13607

ADJUSTER

SLIDE - rail, left hand, uses 1/2 inch long bolt

1шт.

8

D59686

BRACKET

BRACKET - right hand

1шт.

9

D59687

BRACKET

BRACKET - left hand

1шт.

10

D59689

SPACER

SPACER - adjuster

4шт.

11

N8764

ADJUSTER

HEIGHT ADJUSTER - rail, front, Includes: Ref. 11A

1шт.

11a

L35503

SPRING

SPRING - return, slide

1шт.

12

L35272

ADJUSTER

ADJUSTER - rail, rear

1шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

10шт.

14

425-105

NUT,5/16"-18, G5

10шт.
