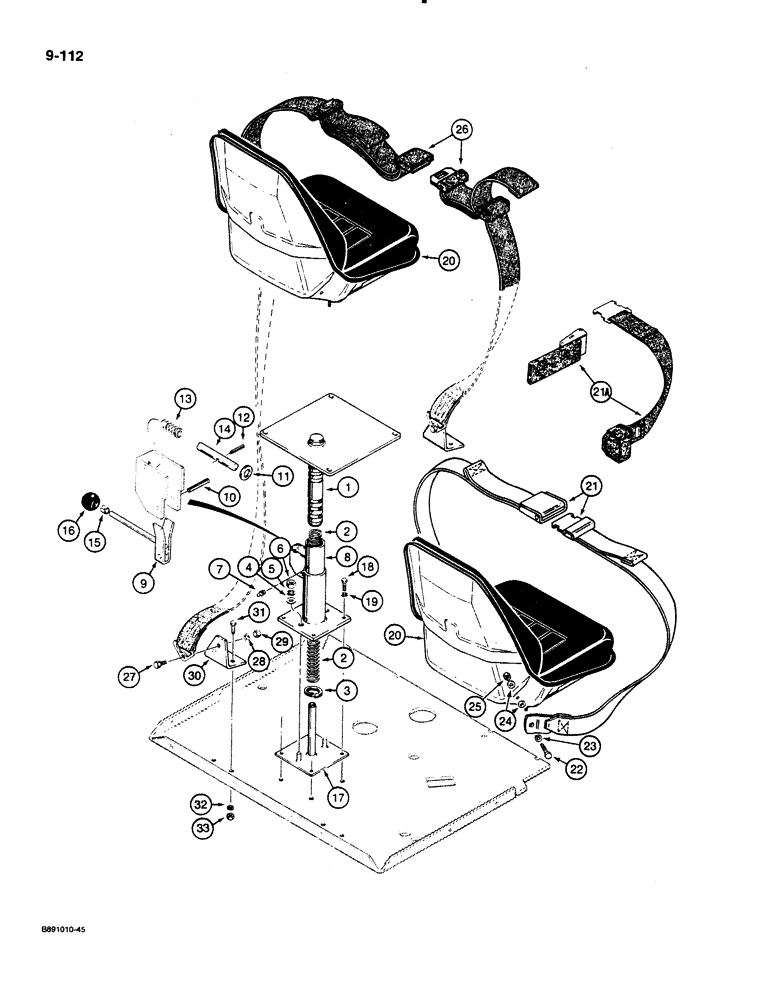

Запчасти Case 480E (9-112) - SEAT MOUNTING PARTS AND SEAT BELTS, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D87657

POST

POST - seat mounting

1шт.

2

D84284

SPRING

SPRING - seat

1шт.

3

D49776

SNAP RING,#187, 2.008", Int, Spiral

SNAP RING - spring retaining

1шт.

4

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

8

D64776

POST

POST - seat base

1шт.

9

D38258

LOCK

LEVER - seat height adjustment lock

1шт.

10

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

11

D49941

SPRING WASHER

WASHER - flat

1шт.

12

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

13

D49774

SPRING

SPRING - lock

1шт.

14

D84285

PIN,12.7mm OD x 84.07mm L

PIN - post latch

1шт.

15

D38673

RING

RING - knob retaining

1шт.

16

D38643

KNOB

KNOB - height adjustment lever

1шт.

17

D62012

POST

BASE - seat post

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

REF

INSTRUCTION

SEAT ASSEMBLY - operators, for correct assembly and components, see Figures 9-116 through 9-120

1шт.

21

D133870

SAFETY BELT

SEAT BELT - 2 inch (51 mm) wide, with anti-creep slide fastens to seat, if used

1шт.

21a

D135623

SAFETY BELT

BELT - seat, 2 inch (51 mm) wide, with retractor, fastens to seat, if used

1шт.

22

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

23

492-11044

LOCK WASHER,7/16"

2шт.

24

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16")

4шт.

25

425-117

NUT,7/16"-20, G5

2шт.

26

D83760

SAFETY BELT

SEAT BELT - 3" (76 mm) wide, fastens to brackets on floor plate, if used

1шт.

27

F42236

STEP BOLT

BOLT - shoulder, 7/16" - 20 NF x 1-1/4", plated

2шт.

28

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

29

425-117

NUT,7/16"-20, G5

2шт.

30

D75008

BRACKET

BRACKET - mounting, seat belt

2шт.

31

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

32

492-11038

LOCK WASHER,3/8"

4шт.

33

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
