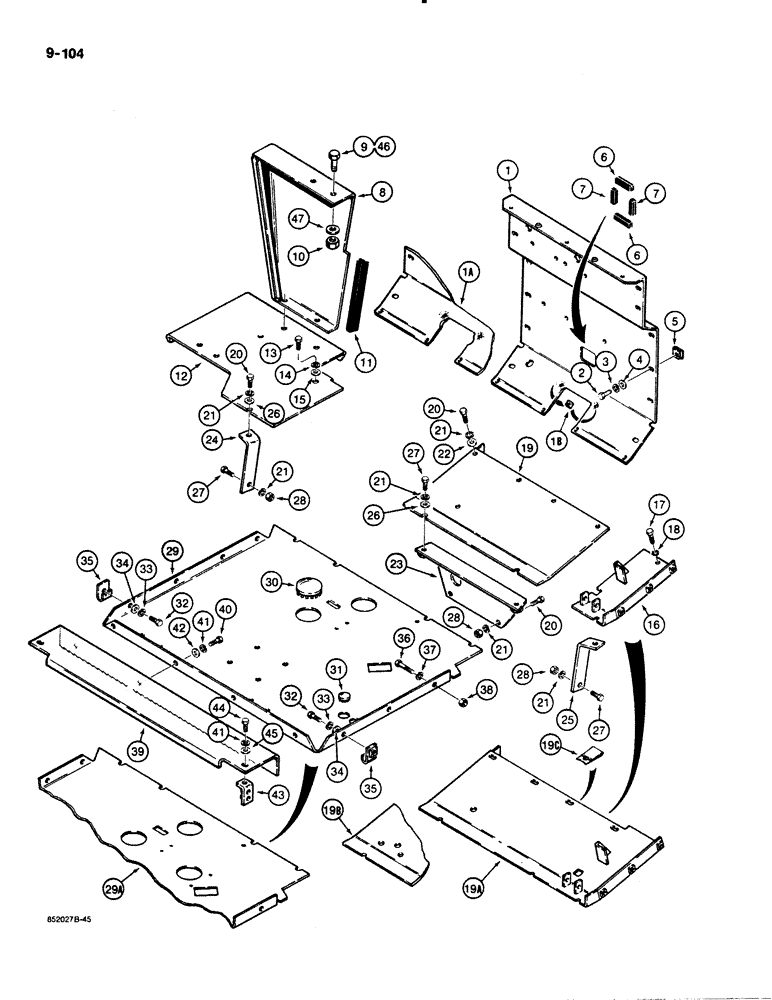

Запчасти Case 480E (9-104) - FLOOR PLATES AND FIREWALL, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D132935

WALL

FIREWALL - pedal mounting, no longer available, order D140402 firewall

1шт.

1a

D140402

WALL

FIREWALL - pedal mounting, Includes: Ref. 1B

1шт.

1b

25-226

SQUARE NUT,Sq, 3/8"-16

NUT - square, 3/8 inch NC, D132935 or D140402 firewall

2шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

3

492-11038

LOCK WASHER,3/8"

12шт.

4

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

12шт.

5

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

12шт.

6

REF

INSTRUCTION

TRIM - edge, 2-1/4" (57 mm) long, cut from F42827 bulk, see below, firewall opening, horizontal

2шт.

7

REF

INSTRUCTION

TRIM - edge, 1-13/16" (46 mm) long, cut from F42827 bulk, see below, firewall opening, vertical

2шт.

8

D68362

PANEL

PANEL - front, left-hand

1шт.

9

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT, , Used on models with cab or canopy Hex, 5/8"-11 x 2", G8

2шт.

10

129-183

NUT,5/8"-11, G8

NUT, 5/8"-11, G8

2шт.

11

REF

INSTRUCTION

TRIM - edge, 10-3/8" (263 mm) long, cut from D95814 bulk, see below, panel

1шт.

12

D70774

FLOOR

PLATE - floor entrance

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

14

492-11038

LOCK WASHER,3/8"

1шт.

15

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

16

D66769

PLATE

PLATE - floor, front, right-hand, used with Ref. 19 floor plate

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , If used Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

18

492-11038

LOCK WASHER,3/8"

If used

1шт.

19

D127013

PLATE ASSY.

PLATE - floor, front, used with Ref. 16, no longer available, for service order D143509 floor plate, Ref. 19B, and (4) 131-634 nuts

1шт.

19a

D134876

LARGE PLATE

PLATE, LARGE PLATE - floor, one piece, replaced two floor plates (Refs. 16 and 19 on some models, no longer available, order D143509 plate

1шт.

19b

D143509

LARGE PLATE

PLATE, LARGE PLATE - floor, one piece, replaces two floor plates (Refs. 16 and 19) on some models

1шт.

19c

131-634

SPRING NUT,J, Ret, 3/8"-16

NUT - J-type, 3/8" - 16 NC, if used

4шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

21

492-11038

LOCK WASHER,3/8"

12шт.

22

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

4шт.

23

D68457

BRACKET

BRACKET - crossmember

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116" (2946 mm) long

1шт.

D95814

CHANNEL

TRIM - edge, 13-3/16" (335 mm) long

1шт.

24

D70276

BRACKET

BRACKET - left-hand

1шт.

25

D70277

BRACKET

BRACKET - right-hand

1шт.

26

495-81002

WASHER,3/8"

WASHER - flat, 3/8 inch

4шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

29

D133310

PLATE

PLATE - floor, rear, no longer used, order D138101 floor plate

1шт.

29a

D138101

PLATE

PLATE - floor, rear

1шт.

30

205-72

HOLE PLUG BUTTON,3"

PLUG - button, (76 mm) diameter, one used on two wheel drive, two used on four wheel drive 3"

1-2шт.

31

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2" (38 mm) diameter

3шт.

32

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

34

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

6шт.

35

131-636

SPRING NUT,J, Ret, 5/16"-18

NUT - J-type, 5/16 inch NC

6шт.

36

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

39

D70066

PANEL

PLATE - spacer, rear floor plate to backhoe frame, if used

1шт.

40

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

42

195-521

WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

4шт.

43

D77105

BRACKET

BRACKET - spacer plate

2шт.

44

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

45

195-103

WASHER,5/16"

WASHER - flat, 3/8 x 7/8 x 5/64 inch

2шт.

46

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

BOLT, , Used on models without cab or canopy Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

47

195-541

WASHER,5/8", SAE

Used on models without cab or canopy

2шт.
