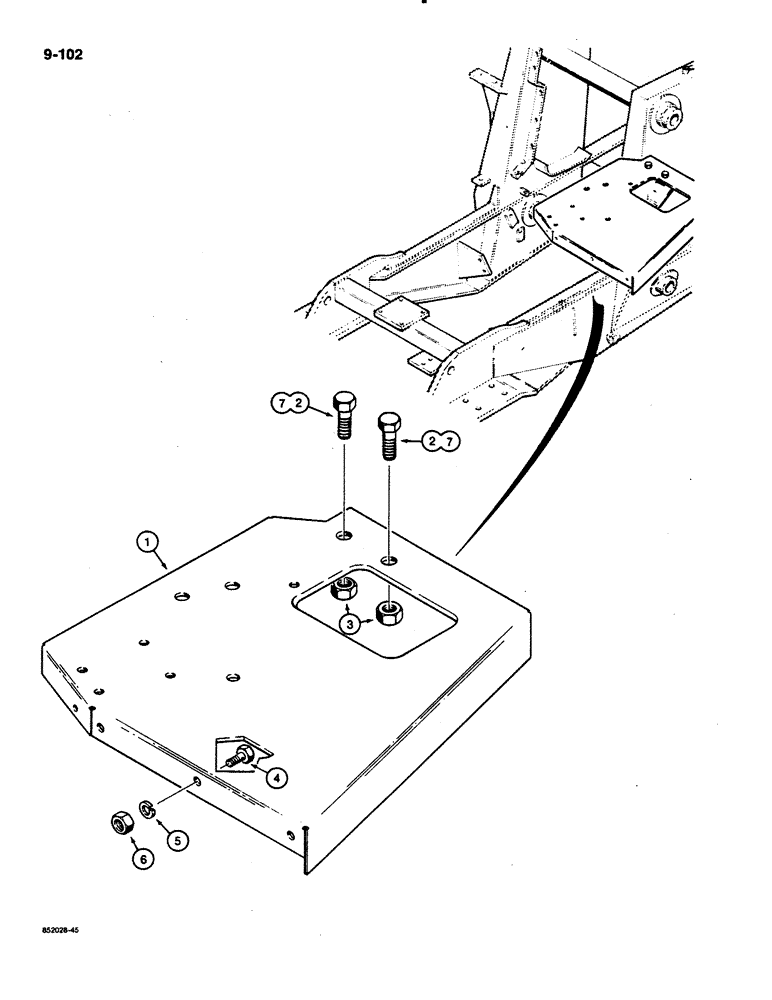

Запчасти Case 480E (9-102) - VALVE MOUNTING PLATE, 480E LL MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D128931

VALVE

SPARE PART PLATE - valve mounting, includes 321-3705, 321-3060, 321-5797 and 321-5684 decals, See Figure 9-168

1шт.

2

113-2619

BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT, , Used on models with canopy Hex, 5/8"-11 x 2", G8

2шт.

3

129-183

NUT,5/8"-11, G8

NUT, 5/8"-11, G8

2шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

7

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

BOLT, , Used on models without canopy Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.
