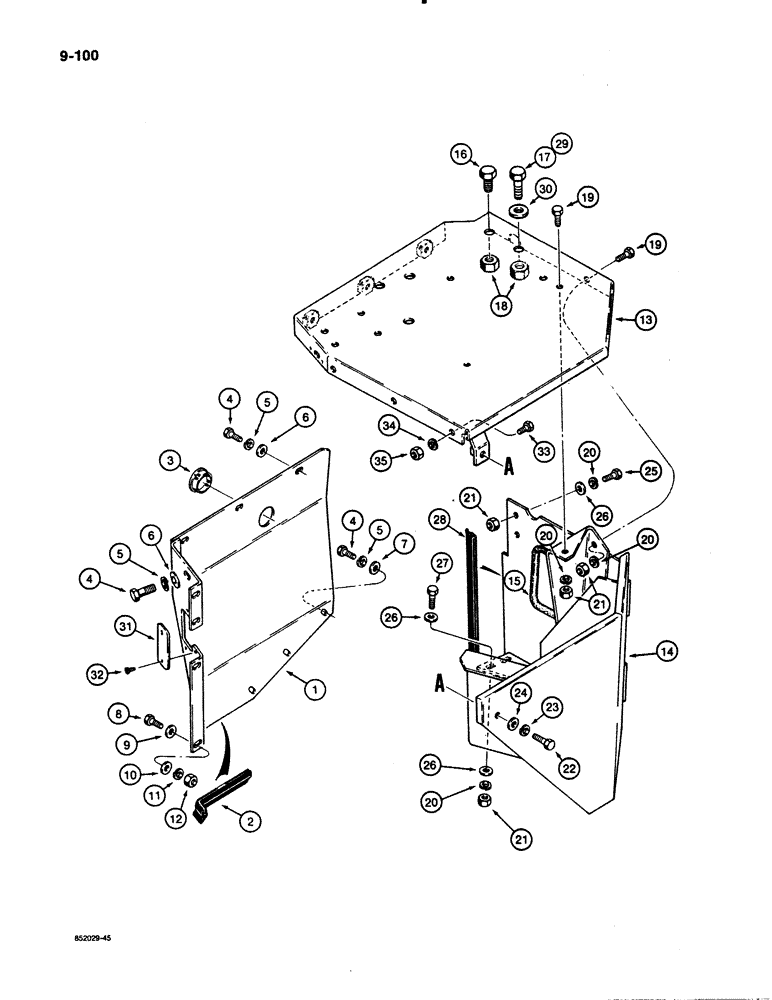

Запчасти Case 480E (9-100) - BATTERY COMPARTMENT AND VALVE MOUNTING PLATE, 480E MODELS (09) - CHASSIS/ATTACHMENTS

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

26

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

6шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

28

REF

INSTRUCTION

TRIM - edge, 9-1/8" (232 mm) long, cut from D95814 bulk, see below, battery and control valve cover

1шт.

29

113-606

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

BOLT, , Used on models without cab or canopy Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

30

195-541

WASHER,5/8", SAE

Used on models without cab or canopy

2шт.

31

D72241

PLATE

PLATE - closure

1шт.

32

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan head, No. 10 NC x 1/2 inch

2шт.

33

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

34

492-11038

LOCK WASHER,3/8"

3шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

D95814

CHANNEL

TRIM - edge, 13-3/16" (335 mm) long

1шт.
