Запчасти Case 480E (9-094) - FENDERS, STEP, AND TOOL BOX, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

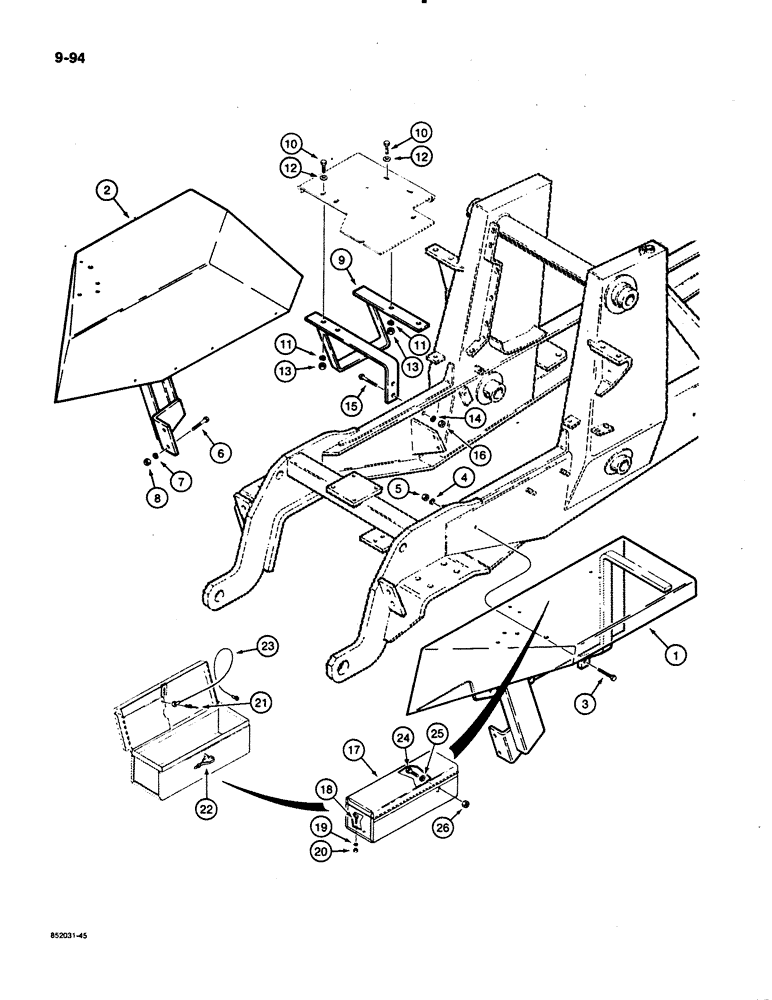

Схема запчастей Case 480E - (9-094) - FENDERS, STEP, AND TOOL BOX, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

D75595

FENDER ASSY.

FENDER - rear, right-hand

1шт.

2

D143492

FENDER ASSY.

FENDER - rear, left-hand, includes 321-3060, 321-3705, 321-6262 and 321-6958 decals. See Figures 9-168 and 9-170

1шт.

3

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

BOLT, Hex, 1/2"-13 x 2 1/4", G5

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

5

425-108

NUT,1/2" - 13, Gr 5

1шт.

6

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

BOLT - hex, 5/8 NC x 2-1/4 inch, grade 8

4шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

129-183

NUT,5/8"-11, G8

NUT, 5/8"-11, G8

4шт.

9

D76746

STEP

STEP - operators compartment

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

16

425-108

NUT,1/2" - 13, Gr 5

2шт.

17

D124090

BOX, TOOL

TOOL BOX - tractor, includes internal clip for operators manual

1шт.

18

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

20

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

4шт.

21

151-522

RIVET,Pop, 3/16" x .575"

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

23

R46465

CABLE,36mm L

CORD - manual retaining

1шт.

24

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Used to mount tool box on fender for models without cab or canopy with tractor lamps Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

25

492-11038

LOCK WASHER,3/8"

If used

3шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

3шт.

Выбрано товаров: 26
