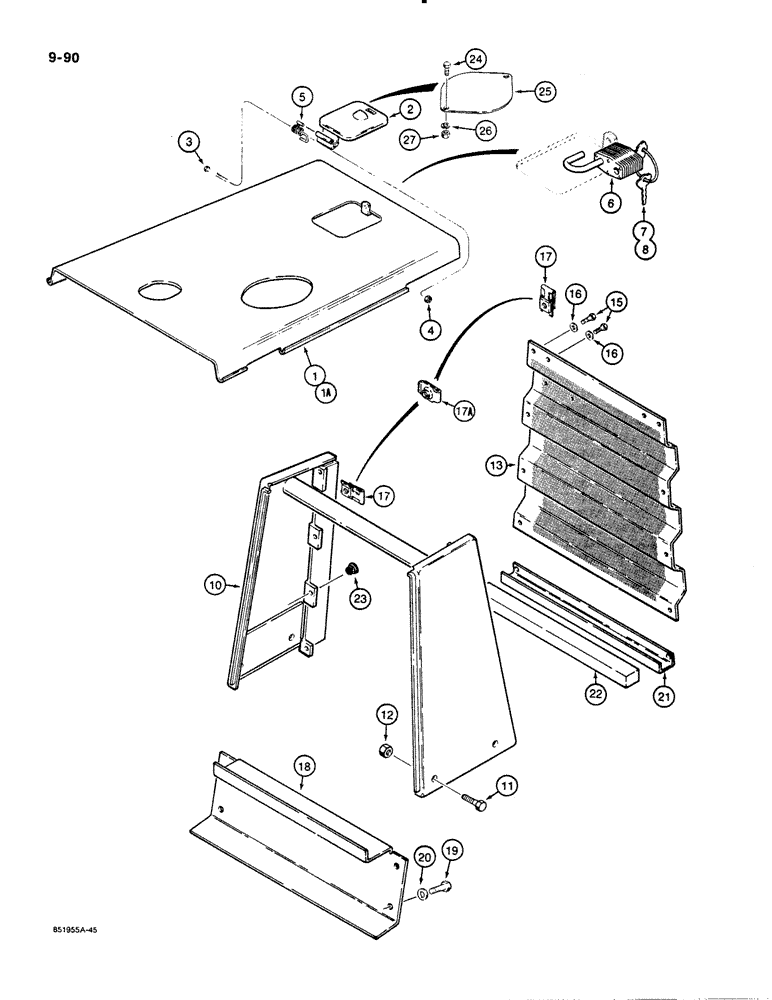

Запчасти Case 480E (9-090) - HOOD AND RADIATOR SHROUD (09) - CHASSIS/ATTACHMENTS

1

D129375

HOOD ASSY.

HOOD - engine, with square access hole for radiator cap, if used, see D92446 access cover

1шт.

1

D143566

HOOD

HOOD - engine, with round access hole for radiator cap, see D143572 access plate, if used, not shown

1шт.

2

D92446

DOOR

DOOR - access, square, radiator cap, includes decal, see figure 9-166, if used

1шт.

3

113-53

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

BOLT, Hex, 1/4"-20 x 3 1/4", G5

1шт.

4

131-2

NUT,1/4"-20, GB

1шт.

5

D121677

SPRING

SPRING - radiator access door

1шт.

6

D93753

PADLOCK

PADLOCK - radiator access, includes keys, if used, Includes: Ref. 7 and 8

1шт.

7

R29555

KEY

KEY - for Master padlock only

2шт.

8

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

10

D129372

GUARD

SHROUD - radiator

1шт.

11

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

BOLT, Hex, 3/4"-10 x 2", G5

4шт.

12

129-108

NUT,3/4"-10, G5

NUT, 3/4"-10, G5

4шт.

13

D91062

GUARD

GRILLE - radiator

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

6-10шт.

16

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

6-10шт.

17

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, , If used Ret, J, 3/8"-16

6-10шт.

17a

D122307

NUT

NUT - U-type, 3/8" - 16 NC, if used

6-10шт.

18

D129443

GUARD

GUARD - pump, not used with front counterweight or models with extendable dipper, may have two or four mounting holes

1шт.

19

113-704

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

BOLT, Hex, 3/4"-10 x 1 1/4", G5

2-4шт.

20

195-545

WASHER,3/4", SAE

WASHER - flat, 13/16 x 1-15/32 x 1/8 inch

2-4шт.

21

D129461

CHANNEL

BRACKET - channel, front counterweight filler

1шт.

22

REF

INSTRUCTION

BAFFLE - channel, cut from D92228, base size is 2" (51 mm) x 22-7/8" (580 mm)

1шт.

For noise reduction pads, see figure 9-122.

1шт.

23

L60224

BUMPER

BUMPER - rubber, replaces four bolts and attaching hardware on some models

4шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

If used

2шт.

25

D143572

LID

PLATE - access, round, radiator cap, if used

1шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

2шт.

27

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 NC, if used

2шт.

D92228

BAFFLE

BAFFLE - bulk pad, 35-1/2" (900 mm) x 55-1/8" (1400 mm) x 1-1/2" (38 mm)

1шт.

For noise reduction pads, see figure 9-122.

1шт.

345-44

ADHESIVE

ADHESIVE - spray can, for attaching foam pads to metal surfaces, 19-1/2" fluid ounces

1шт.
