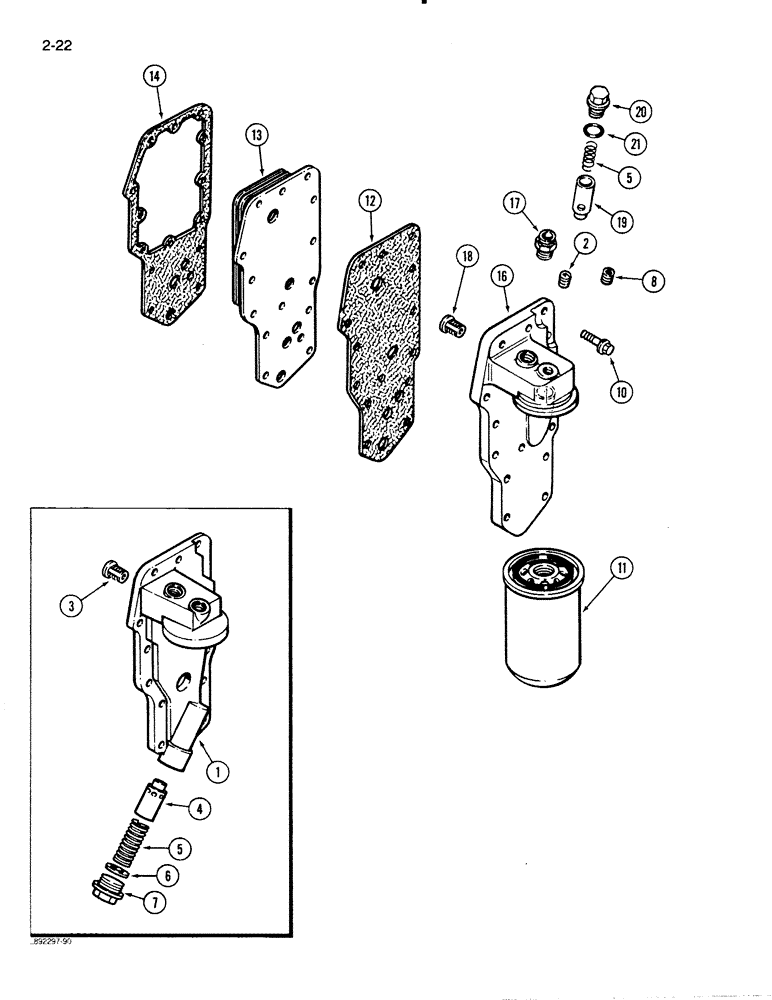

Запчасти Case 480E (2-22) - OIL FILTER AND COOLER, 4-390 ENGINE (02) - ENGINE

1

J902295

HEAD ASSY.

HEAD - filter, lube oil

1шт.

Used prior to Engine Number 44257900. For repairs order J915766 kit.

1шт.

2

J906619

PLUG,1/8" - 27

PLUG - hex socket pipe, 1/8-27 inch PT

1шт.

3

J902338

VALVE, PRESSURE RELI

EF VALVE - relief, pressure

1шт.

4

J909376

PLUNGER

PLUNGER - regulator, pressure

1шт.

5

J903261

SPRING

SPRING - compression

1шт.

6

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

7

J904386

PLUG

PLUG - pipe

1шт.

8

A77428

PLUG

PLUG - hex socket pipe, 1/4-18 inch PT

1шт.

10

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

BOLT - hex flange head, 8 mm - 1.25 x 35 mm

14шт.

11

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

FILTER - lube oil (Cartridge)

1шт.

12

J912532

GASKET

GASKET - filter head (Replaces J912638)

1шт.

13

J904320

COOLER

COOLER - oil

1шт.

14

J914387

GASKET

GASKET - cooler core (Replaces J904427)

1шт.

J915766

KIT

KIT - oil cooler cover (Engine Serial Number 44257900 and after), Includes: Ref. 16 - 21

1шт.

J915243

FILTER COVER

HEAD ASSEMBLY - with adapter, Includes: Ref. 16 - 17

1шт.

16

J909352

FILTER COVER

HEAD ASSEMBLY - filter and cooler (Order J915243)

1шт.

17

J909355

ADAPTER

ADAPTER - filter head

1шт.

18

J902338

VALVE, PRESSURE RELI

EF VALVE - relief, pressure

1шт.

19

J914084

VALVE

PLUNGER - regulator, pressure

1шт.

20

J912618

PLUG

PLUG - pipe

1шт.

21

J912818

O-RING

WASHER - seal, plug

1шт.
