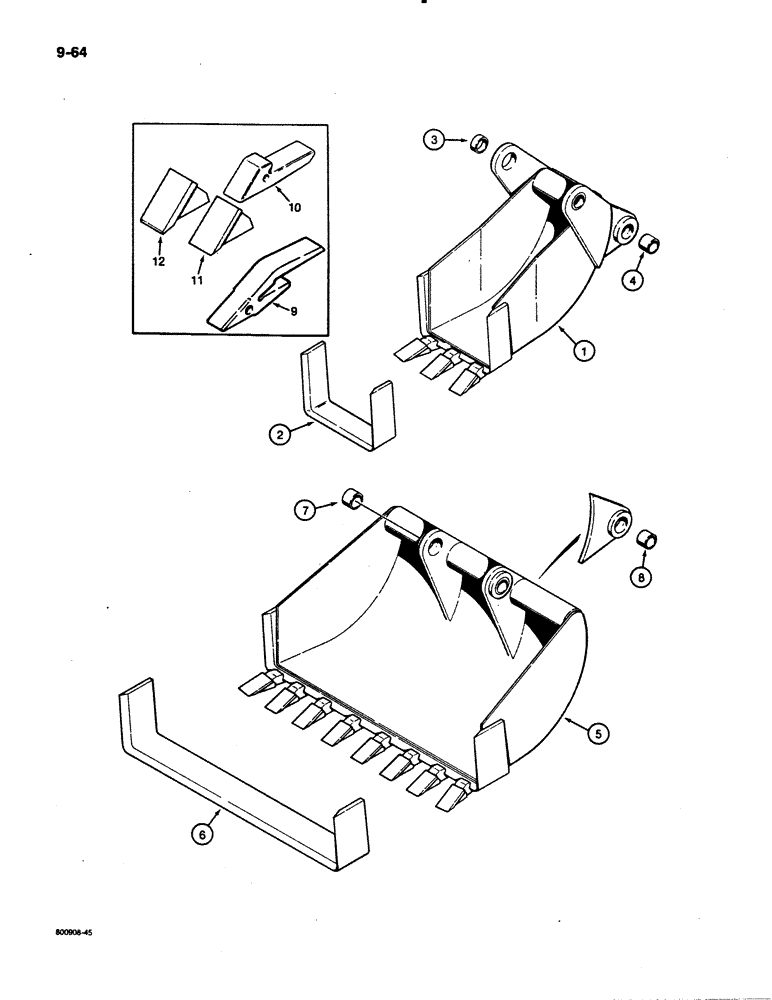

Запчасти Case 480E (9-064) - BACKHOE BUCKETS, 480E MODELS ONLY, BELLHOLE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

D41547

BUCKET

SPARE PART BUCKET ASSEMBLY - 12" (305 mm), order from Machinery Price List, Includes: Ref. 2 - 4

1шт.

2

D37490

KNIFE

CUTTING EDGE - bucket

1шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

BUSHING - bucket, at dipper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - bucket, bucket link pin hole

2шт.

1

D41548

BUCKET

SPARE PART BUCKET ASSEMBLY - 16" (406 mm), order from Machinery Price List, Includes: Ref. 2 - 4

1шт.

2

D37518

EDGE, CUTTING

CUTTING EDGE - bucket

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUSHING - bucket, at dipper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - bucket, bucket link pin hole

2шт.

1

D41549

BUCKET

SPARE PART BUCKET ASSEMBLY - 30" (762 mm), order from Machinery Price List, Includes: Ref. 2 - 4

1шт.

2

D37515

EDGE

CUTTING EDGE - bucket

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUSHING - bucket at dipper

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - bucket, bucket link pin hole

2шт.

5

D41550

BUCKET

BUCKET ASSEMBLY - 36" (914 mm), order from Machinery Price List, combination bellhole & graveyard, Includes: Ref. 6 - 8

1шт.

6

NLS

NO LONGER SERVICED

CUTTING EDGE - bucket, combination bellhole & graveyard

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUSHING - bucket, at dipper, combination bellhole & graveyard

2шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - bucket link pin hole, combination bellhole & graveyard

2шт.

9

D58499

SUPPORT

SHANK - tooth, service option, for crimp retained point, bucket

1шт.

10

D26368

SUPPORT

SHANK - tooth, original equipment, for crimp retained point, bucket

1шт.

11

D27748

TOOTH

POINT - tooth, standard, crimp retained, bucket

1шт.

12

D36720

TOOTH

POINT - tooth, heavy duty service option, crimp retained, bucket

1шт.
