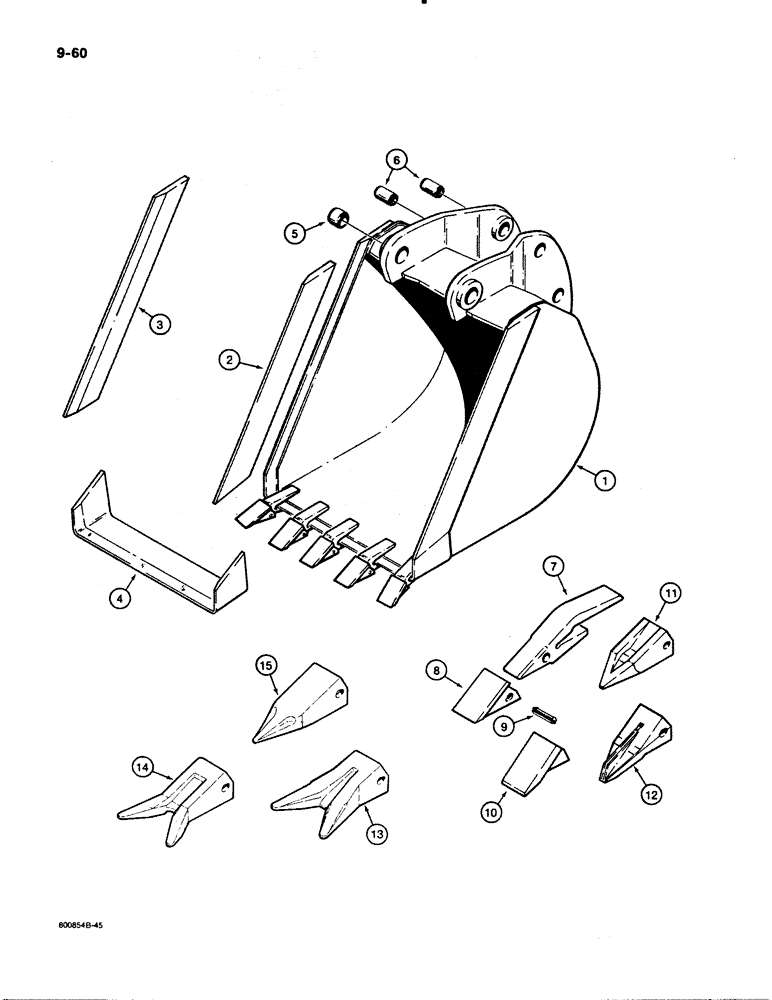

Запчасти Case 480E (9-060) - BACKHOE BUCKETS, 480E MODELS ONLY, TRENCHING BUCKETS - HEAVY (09) - CHASSIS/ATTACHMENTS

1

D57546

BUCKET

BUCKET ASSEMBLY - 18" (457 mm), order from Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D57551

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D57594

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUSHING - bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - bucket, at bucket link

4шт.

1

D57544

BUCKET

BUCKET ASSEMBLY- 24" (610 mm), order from Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

D57550

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D57551

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D57591

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUSHING - bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - bucket, at bucket link

2шт.

D48035

TOOTH

TOOTH ASSEMBLY - heavy duty bucket only, Includes: Ref. 7 - 9

1шт.

7

D48212

SHANK

SHANK - tooth assy

1шт.

8

D39093

TOOTH

POINT - tooth assy

1шт.

9

D39094

BUCKET TOOTH KEY

FLEX PIN - point, tooth assy

1шт.

10

D44193

TOOTH

POINT - tooth, heavy duty, flat end, service option, assy

1шт.

11

D80119

TOOTH

POINT - tooth, heavy duty, pointed end, service option, assy

1шт.

12

D79100

TOOTH

POINT - tooth, heavy duty, star point, service option, assy

1шт.

13

D140561

TOOTH

POINT - tooth, heavy duty, twin penetrator, service option, assy

1шт.

14

D136045

TOOTH

POINT - tooth, heavy duty, twin point, service option, assy

1шт.

15

D140562

TOOTH

POINT - tooth, heavy duty, penetrator, service option, assy

1шт.
