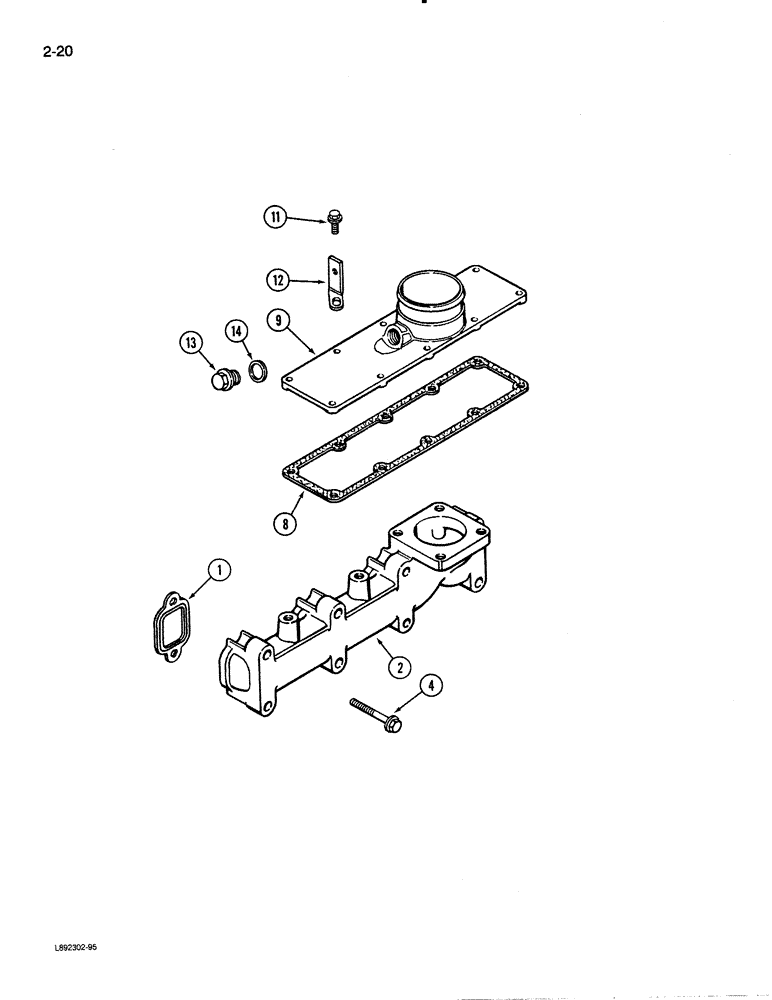

Запчасти Case 480E (2-20) - MANIFOLDS, EXHAUST, 4-390 ENGINE (02) - ENGINE

1

J905443

MANIFOLD GASKET

GASKET - exhaust manifold

4шт.

2

J901223

MANIFOLD

MANIFOLD - exhaust

1шт.

4

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT - hex flange, 10 mm - 1.50 x 70 mm

8шт.

8

J914028

GASKET

GASKET - intake manifold (Replaces J901999)

1шт.

9

NSS

NOT SOLD SEPARAT

MANIFOLD - intake (Order A77415 kit)

1шт.

11

J904341

BOLT,M6 x 1 x 35mm, Cl 8.8

BOLT - intake manifold

10шт.

12

NSS

NOT SOLD SEPARAT

BRACE - fuel tube (See Fig 3-9), intake

1шт.

13

J907185

PLUG

PLUG ASSEMBLY - manifold, intake

1шт.

14

J906773

WASHER

WASHER - plug sealing

1шт.

A77415

COVER

KIT - intake manifold (Includes Ref 9, 13 and 14)

1шт.
