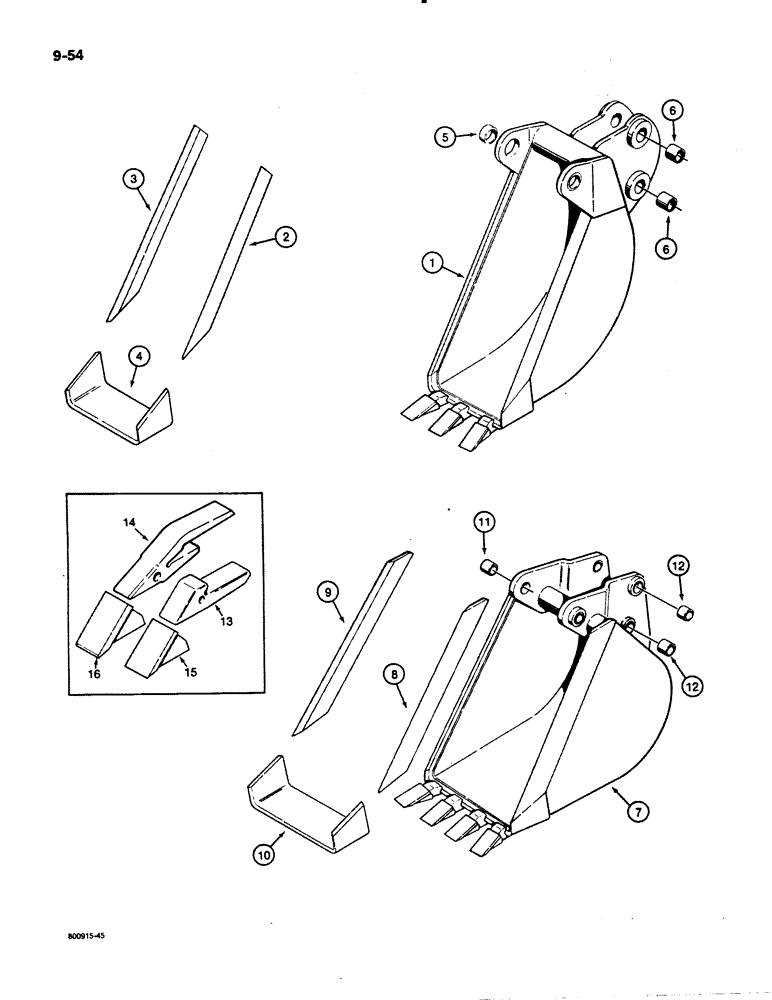

Запчасти Case 480E (9-054) - BACKHOE BUCKETS, 480E MODELS ONLY, TRENCHING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

D52642

BUCKET

BUCKET ASSEMBLY - 12" (305 mm), order from Machinery Price List, Includes: Ref. 2 - 6

1шт.

2

D29424

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

3

D29423

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

4

D37464

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

BUSHING - bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - bucket, bucket link pin hole

4шт.

7

D37473

BUCKET

SPARE PART BUCKET ASSEMBLY - 18" (457 mm), order from Machinery Price List, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

9

D21605

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

10

D37642

EDGE, CUTTING

CUTTING EDGE - bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUSHING - bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - bucket, upper and lower bucket link pin hole

4шт.

7

D37474

BUCKET

SPARE PART BUCKET ASSEMBLY - 24" (610 mm), order from Machinery Price List, Includes: Ref. 8 - 12

1шт.

8

D21606

EDGE, CUTTING

CUTTING EDGE - bucket, right-hand side

1шт.

9

D21605

EDGE, CUTTING

CUTTING EDGE - bucket, left-hand side

1шт.

10

D37507

EDGE

CUTTING EDGE - bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUSHING - bucket at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - bucket, upper and lower bucket link pin hole

4шт.

13

D26368

SUPPORT

SHANK - tooth, original equipment, for crimp retained point, bucket

1шт.

14

D58499

SUPPORT

SHANK - tooth, service option, for crimp retained point, bucket

1шт.

15

D27748

TOOTH

POINT - tooth, standard, crimp retained, bucket

1шт.

16

D36720

TOOTH

POINT - tooth, heavy duty service option, crimp retained, bucket

1шт.
