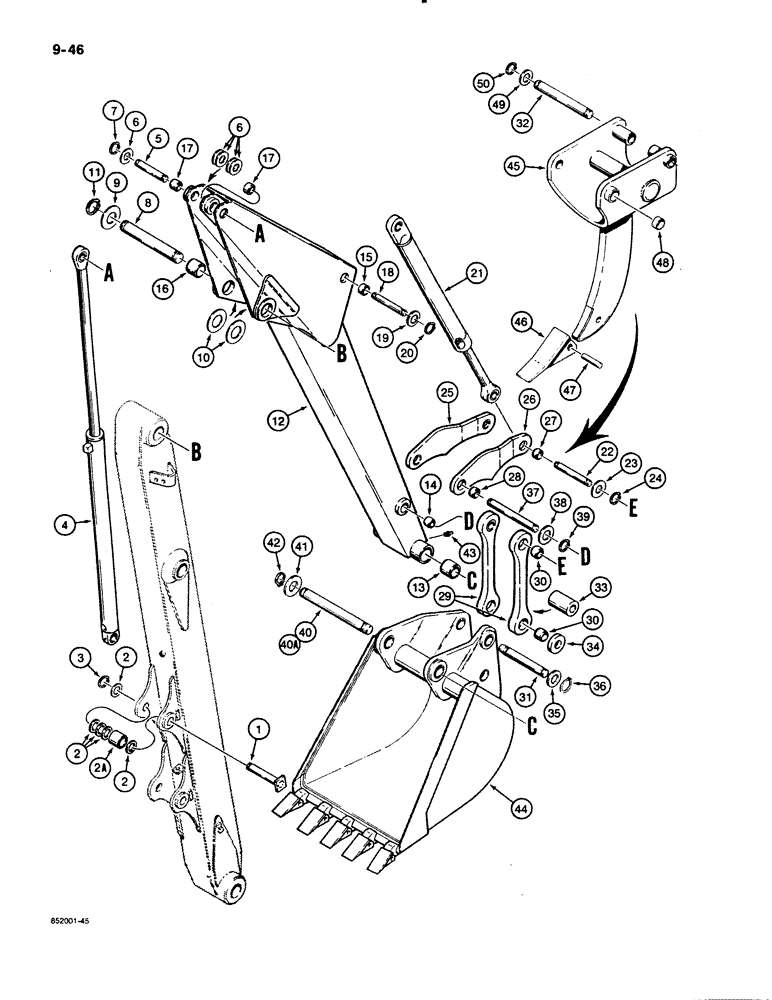

Запчасти Case 480E (9-046) - BACKHOE DIPPER AND BUCKET, 480E 14 FOOT BACKHOE MODELS (09) - CHASSIS/ATTACHMENTS

1

D133862

PIN

PIN - dipper, Serial Range: cylinder-boom

1шт.

2

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - spacer

5шт.

2a

D133866

SPACER

SPACER - dipper cylinder

1шт.

3

D25280

SNAP RING,#175, Ext

1шт.

4

REF

INSTRUCTION

CYLINDER ASSEMBLY - dipper, parts list Figure 8-130

1шт.

5

D44881

PIN,38.1mm OD x 136.4mm L

PIN - dipper, Serial Range: cylinder-dipper

1шт.

6

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

WASHER - spacer

1шт.

7

D25279

SNAP RING,M35, Int

SNAP RING - pin retaining

2шт.

8

D37609

PIN

PIN -, Serial Range: boom-dipper

1шт.

9

L47721

WASHER

SHIM - spacer

1шт.

10

195-2155

WASHER,2 1/16" x 3" x .109"

WASHER - flat, 2", special

1шт.

11

D26919

SNAP RING,#200, Ext

Pin

2шт.

12

D128841

DIPPER

DIPPER - backhoe, Includes: Ref. 13 - 17

1шт.

13

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

BUSHING - bucket at dipper

2шт.

14

D32890

BUSHING

BUSHING - bucket linkage at dipper

2шт.

15

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

BUSHING - dipper at bucket cylinder

2шт.

16

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

BUSHING - dipper at boom

2шт.

17

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

BUSHING - dipper at dipper cylinder, left-hand side only

2шт.

18

D44882

PIN,38.1mm OD x 203.2mm L

PIN - dipper to bucket cylinder

1шт.

19

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

WASHER - spacer

1шт.

20

D25279

SNAP RING,M35, Int

SNAP RING - pin retaining

2шт.

21

G103503

CYLINDER BLOCK

CYLINDER ASSEMBLY - bucket, parts list Figure 8-132

1шт.

22

D26002

PIN,38.1mm OD x 187.32mm L

PIN - bucket cylinder to bucket linkage

1шт.

23

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

WASHER - spacer

1шт.

24

D25279

SNAP RING,M35, Int

SNAP RING - pin retaining

2шт.

25

D84167

LINK

LINK - guide, left-hand

1шт.

26

D84166

LINK

LINK - guide, right-hand, Includes: Ref. 27 and 28

1шт.

27

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

BUSHING - link, 1 each to D84167 and D84166

1шт.

28

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

BUSHING - link, 1 each to D84167 and D84166

1шт.

29

D99731

LINK

LINK - bucket, Includes: Ref. 30

2шт.

30

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

BUSHING - bucket link, two each

2шт.

31

D37614

PIN,38mm Od x 246mm L

PIN -, Serial Range: link-bucket

1шт.

32

D54218

PIN,38.1mm OD x 345.95mm L

PIN - link to frost point, 13-5/8" long, if used

1шт.

33

D44887

SPACER

SPACER - link

1шт.

34

74163

SPACER

SPACER - link

2шт.

35

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

WASHER - spacer

1шт.

36

D25279

SNAP RING,M35, Int

SNAP RING - pin retaining

2шт.

37

D44883

PIN,31.75mm OD x 238.25mm L

PIN -, Serial Range: link-dipper

1шт.

38

195-2125

WASHER,1 5/16" x 2" x .109"

WASHER - flat, 1-5/16" x 2" OD x 1/8" thick

1шт.

39

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

2шт.

40

D123081

PIN,44.45mm OD x 370.84mm L

PIN - dipper to bucket, used on all buckets except 12 inch (305 mm) bucket, if used

1шт.

40a

D40244

PIN,44.45mm OD x 327.02mm L

PIN - dipper to bucket, used on 12 inch (305 mm) buckets only, if used

1шт.

41

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

WASHER - flat, 1-25/32 x 2-1/2 x 7/64 inch

1шт.

42

D25280

SNAP RING,#175, Ext

2шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

44

REF

INSTRUCTION

BUCKET - backhoe, see Figures 9-54 through 9-64 for options

1шт.

D54136

SUPPORT ASSY.

FROST POINT ASSEMBLY - backhoe, Includes: Ref. 45 - 48

1шт.

45

NSS

NOT SOLD SEPARAT

BODY - frost point

1шт.

46

D83306

POINT

POINT - tooth

1шт.

47

D43417

PIN

PIN - tooth point

1шт.

48

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

BUSHING - frost point pivot

2шт.

49

195-63

WASHER,1 5/8" x 3 1/4" x .180"

WASHER - flat, 1-1/2", special, used with frost point

2шт.

50

D25279

SNAP RING,M35, Int

SNAP RING - item 32 pin retaining, used with frost point

2шт.
