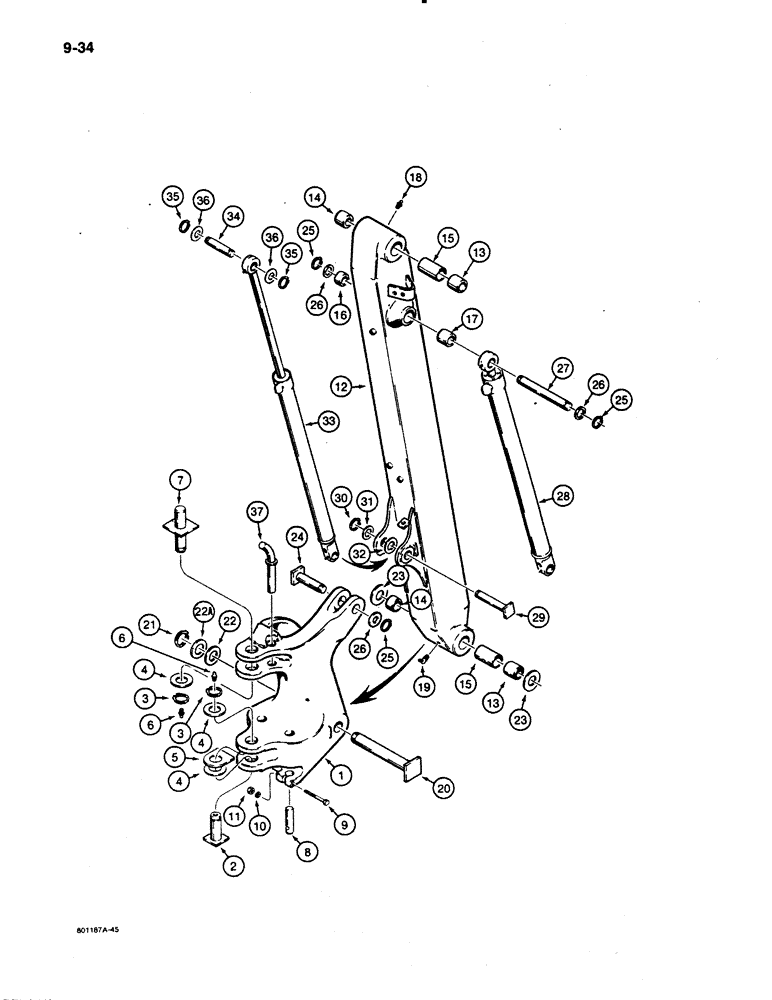

Запчасти Case 480E (9-034) - BACKHOE SWING TOWER AND BOOM, 480E 12 FOOT BACKHOE MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D143749

CASING

SWING TOWER - backhoe

1шт.

2

D83625

PIN

PIN - swing tower to mounting frame, lower

1шт.

3

D26919

SNAP RING,#200, Ext

Pin

2шт.

4

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer

1шт.

5

D86084

WASHER

WASHER - wear

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

7

D99132

PIN

PIN - swing tower to mounting frame, upper

1шт.

8

D47866

PIN,38.1mm OD x 139.7mm L

PIN - swing cylinder to swing tower

2шт.

9

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

BOLT - hex, 5/8 NC x 4 inch

2шт.

10

192-525

WASHER

WASHER - lock, 5/8", plated

2шт.

11

425-1010

NUT,5/8"-11, G5

2шт.

12

D99200

BOOM

BOOM - backhoe, Includes: Ref. 13 - 17

1шт.

13

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

BUSHING - boom end, 2" (51 mm) long

2шт.

14

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

BUSHING - boom end, 1-1/2" (38 mm) long

2шт.

15

D99195

SPACER

SPACER - boom end

2шт.

16

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

BUSHING - boom cylinder pivot, 3/4" (19 mm) long

1шт.

17

D55626

BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L

BUSHING - boom cylinder pivot, 1-5/8" (41 mm) long

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Special short

1шт.

20

D99086

PIN

PIN - boom to swing tower

1шт.

21

D26919

SNAP RING,#200, Ext

Pin

1шт.

22

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer (.78 mm)

1шт.

22a

195-2155

WASHER,2 1/16" x 3" x .109"

WASHER - flat, 2", special, 1/8" (3.2 mm) thick

1шт.

23

L47721

WASHER

WASHER - spacer, 1/8" (3.2 mm) thick

1шт.

24

D120744

PIN

PIN - boom cylinder to swing tower

1шт.

25

D25280

SNAP RING,#175, Ext

3шт.

26

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - shim

3шт.

27

D81488

PIN

PIN - boom, Serial Range: cylinder-boom

1шт.

28

G102835

CYLINDER

CYLINDER ASSEMBLY - boom, parts list Figure 8-124

1шт.

29

D99037

PIN

PIN - dipper, Serial Range: cylinder-boom

1шт.

30

D25279

SNAP RING,M35, Int

SNAP RING - pin retaining

1шт.

31

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

WASHER - spacer

1шт.

32

D31312

WASHER

WASHER - hardened, spacer

1шт.

33

G104844

CYLINDER

CYLINDER ASSEMBLY - dipper, parts list Figure 8-126

1шт.

34

D44881

PIN,38.1mm OD x 136.4mm L

PIN - dipper, Serial Range: cylinder-dipper

1шт.

35

D25279

SNAP RING,M35, Int

SNAP RING - pin retaining

2шт.

36

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

WASHER - spacer

6шт.

37

D99084

PIN

PIN - swing lock

1шт.
