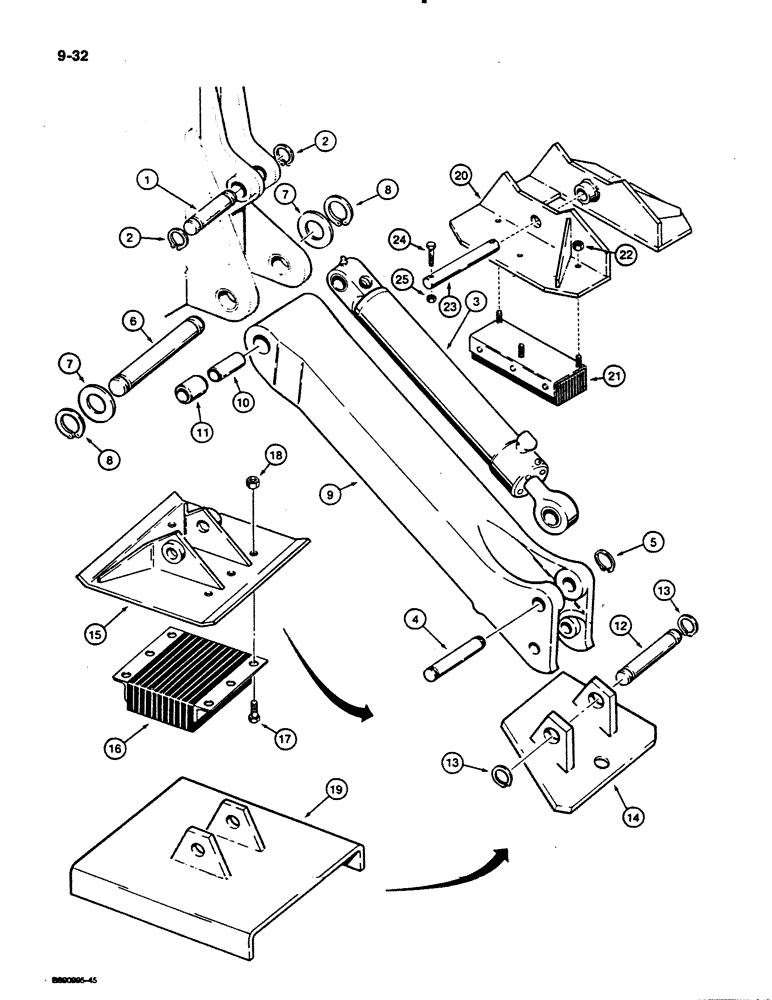

Запчасти Case 480E (9-032) - BACKHOE STABILIZERS, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D28037
AXLE PIN
PIN - stabilizer cylinder to mounting frame
2шт.
2
D25279
SNAP RING,M35, Int
SNAP RING - pin retaining
4шт.
3
REF
INSTRUCTION
CYLINDER ASSEMBLY - stabilizer, for correct assembly and components, see Figures 8-118 and 8-120
2шт.
4
D40941
PIN,38.1mm OD x 149.22mm L
PIN - stabilizer cylinder to stabilizer leg
2шт.
5
D25279
SNAP RING,M35, Int
SNAP RING - pin retaining
4шт.
6
D46404
PIN
PIN - stabilizer leg to mounting frame
2шт.
7
195-2152
WASHER,1 13/16" x 2 1/2" x .109"
WASHER - flat, 1-25/32 x 2-1/2 x 7/64 inch
4шт.
8
D25280
SNAP RING,#175, Ext
4шт.
D94498
STABILIZER
LEG ASSEMBLY - stabilizer, Includes: Ref. 9 - 11
2шт.
9
NSS
NOT SOLD SEPARAT
LEG - stabilizer
1шт.
10
D121757
SPACER
SPACER - bushing
1шт.
11
D33054
BUSHING
BUSHING -, Serial Range: leg-frame
2шт.
12
D37603
PIN
PIN - stabilizer, Serial Range: leg-plate
2шт.
13
D26918
SNAP RING,#125, Ext
Ring, Snap, , pin #125, Ext
4шт.
14
D38080
FOOT REST
PLATE - stabilizer, cleated, optional, if used
2шт.
15
D61380
STABILIZER
PLATE - stabilizer, street or cemetery pad, optional
2шт.
17
113-713
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
BOLT, Hex, 3/4"-10 x 1 3/4", G5
8шт.
18
129-108
NUT,3/4"-10, G5
NUT, 3/4"-10, G5
8шт.
19
D99791
PAD
PLATE - stabilizer, square, cleated, heavy duty, standard, if used
2шт.
20
D143474
RUNNER
PLATE - stabilizer, flip over, Category III
2шт.
21
D142314
SKID/SHOE
PAD - rubber, used with D143474 plate
4шт.
22
131-1129
LOCK NUT,7/16"-14, GA
NUT - hex, self-locking, 7/16 inch NC
12шт.
23
D143475
PIN
PIN - D143474 plate to stabilizer leg
2шт.
24
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
BOLT, Hex, 3/8"-16 x 2", G5
4шт.
25
131-52
NUT,3/8"-16, GC
NUT - hex, self-locking, 3/8 inch NC
4шт.
26
REF
INSTRUCTION
DECAL - flip-pad instruction, damage to cab can result, not shown, see Figure 9-170
2шт.
Выбрано товаров: 27
