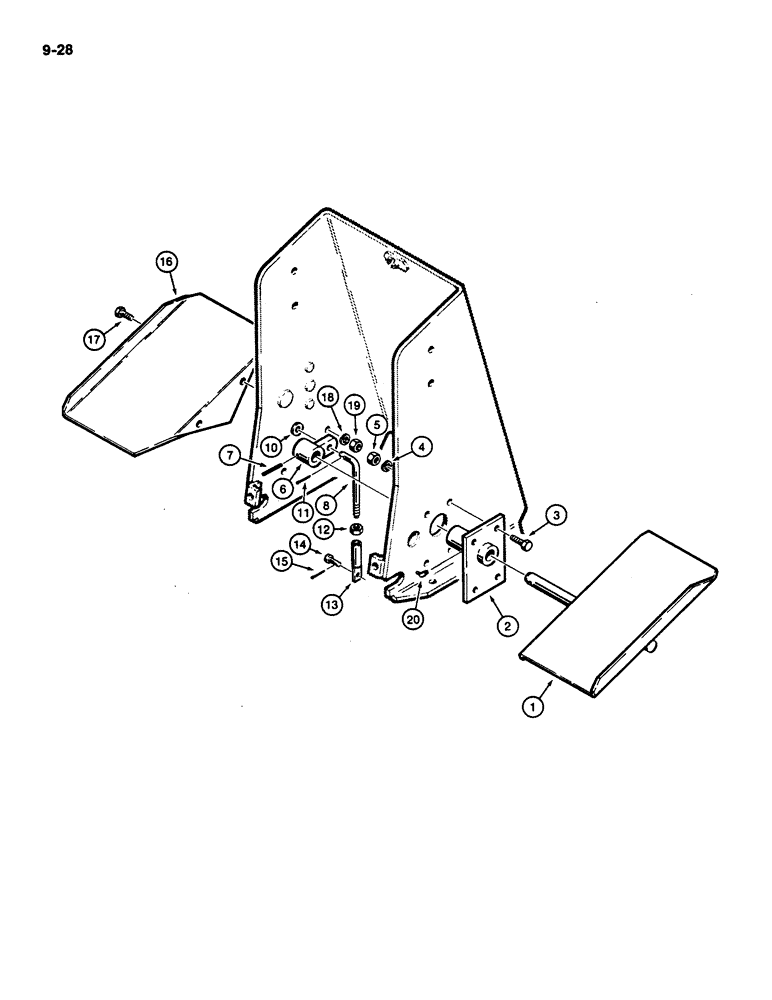

Запчасти Case 480E (9-028) - BACKHOE EXTENDABLE DIPPER CONTROL, HAND SWING MODELS, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D87866

PEDAL

PEDAL - extendable dipper control

1шт.

2

D87854

BRACKET

SUPPORT - pedal

1шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

D87860

LEVER

LEVER - pivot

1шт.

7

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

8

D87867

ROD

ROD - control

1шт.

10

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

11

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

12

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

13

D87857

LINK

LINK -, Serial Range: rod-valve

1шт.

14

141-53

CLEVIS PIN,5/16" x .940"

1шт.

15

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

16

D87863

PLATFORM

PLATFORM - left-hand foot

1шт.

17

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

20

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 90 degree, 1/8" NPT

1шт.
