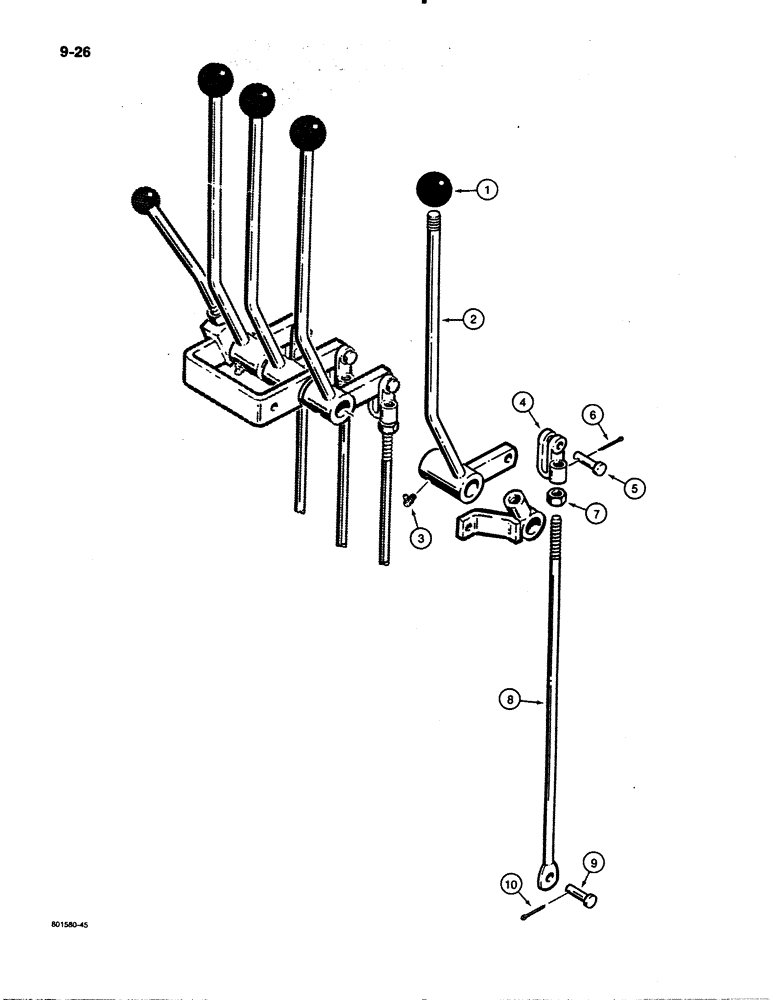

Запчасти Case 480E (9-026) - BACKHOE EXTENDABLE DIPPER CONTROL, FOOT SWING MODELS, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

KNOB - control lever

1шт.

2

D99177

LEVER

CONTROL LEVER - extendable dipper

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4 inch NF taper

1шт.

4

L11182

YOKE,3/8" - 24

UNIVERSAL JOINT YOKE CLEVIS - 3/8", offset

1шт.

5

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

6

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

1шт.

8

D30821

ROD

ROD - extendable dipper control

1шт.

9

141-53

CLEVIS PIN,5/16" x .940"

1шт.

10

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.
