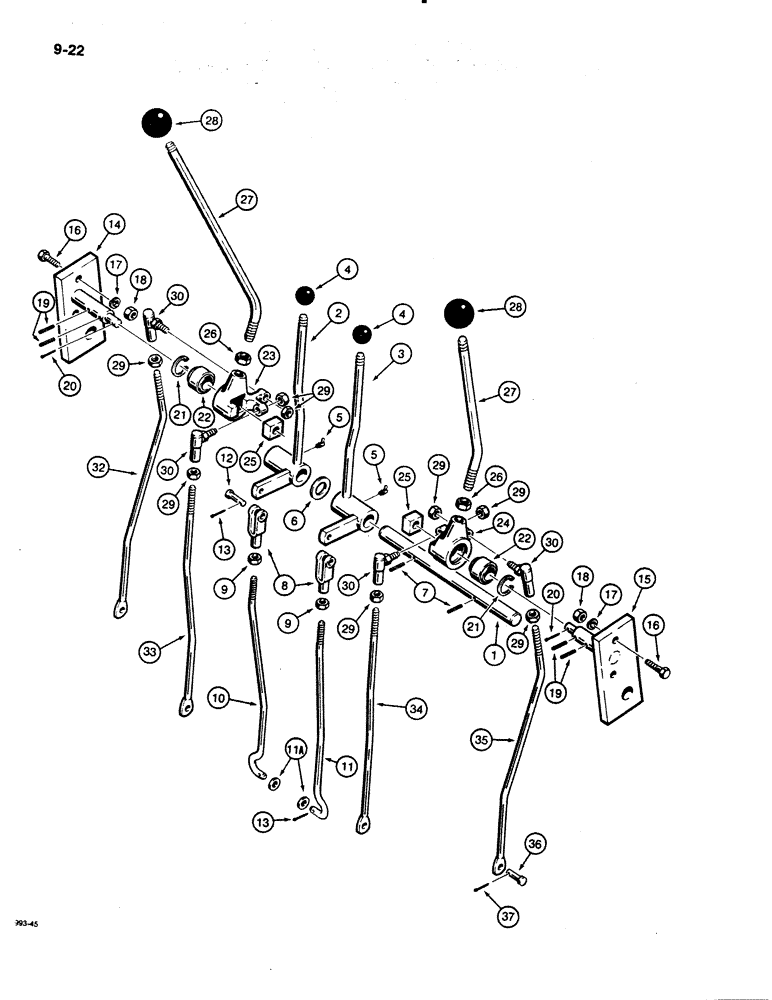

Запчасти Case 480E (9-022) - BACKHOE CONTROLS WITH HAND SWING, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D91195

SHAFT

SHAFT - stabilizer control levers

1шт.

2

D91169

LEVER

CONTROL LEVER - stabilizer, left-hand

1шт.

3

D91170

LEVER

CONTROL LEVER - stabilizer, right-hand

1шт.

4

D59912

KNOB

KNOB - stabilizer control lever

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

Special short

2шт.

6

195-2097

WASHER,15/16" x 1 3/4" x .083"

WASHER - flat, 7/8", special, used as shim

1шт.

7

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

8

H44198

YOKE

UNIVERSAL JOINT YOKE CLEVIS - 5/16", plated

2шт.

9

129-122

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

2шт.

10

D126335

ROD

ROD - left-hand stabilizer

1шт.

11

D126336

ROD

ROD - right-hand stabilizer

1шт.

11a

195-102

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

12

141-53

CLEVIS PIN,5/16" x .940"

2шт.

13

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

14

D91534

SUPPORT

SUPPORT - backhoe controls, left-hand

1шт.

15

D91185

SUPPORT

SUPPORT - backhoe controls, right-hand

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

19

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

20

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

21

D1038223

SPRING

Ring, Snap, 1.438", Int, #143, brg

2шт.

22

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

BUSHING - self-aligning

2шт.

23

D38302

ADAPTER

LEVER - pivot, left-hand

1шт.

24

D38303

ADAPTER

LEVER - pivot, right-hand

1шт.

25

D38305

BLOCK

BLOCK - wear

2шт.

26

129-127

NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

27

D94184

LEVER

CONTROL LEVER - boom and swing, dipper and bucket

2шт.

28

D39118

KNOB

KNOB - control levers

2шт.

29

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

8шт.

30

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

BALL JOINT - 3/8", special

4шт.

32

D91177

ROD

ROD - boom control

1шт.

33

D91178

ROD

ROD - swing control

1шт.

34

D91179

ROD

ROD - bucket control

1шт.

35

D91180

ROD

ROD - dipper control

1шт.

36

141-53

CLEVIS PIN,5/16" x .940"

4шт.

37

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.
