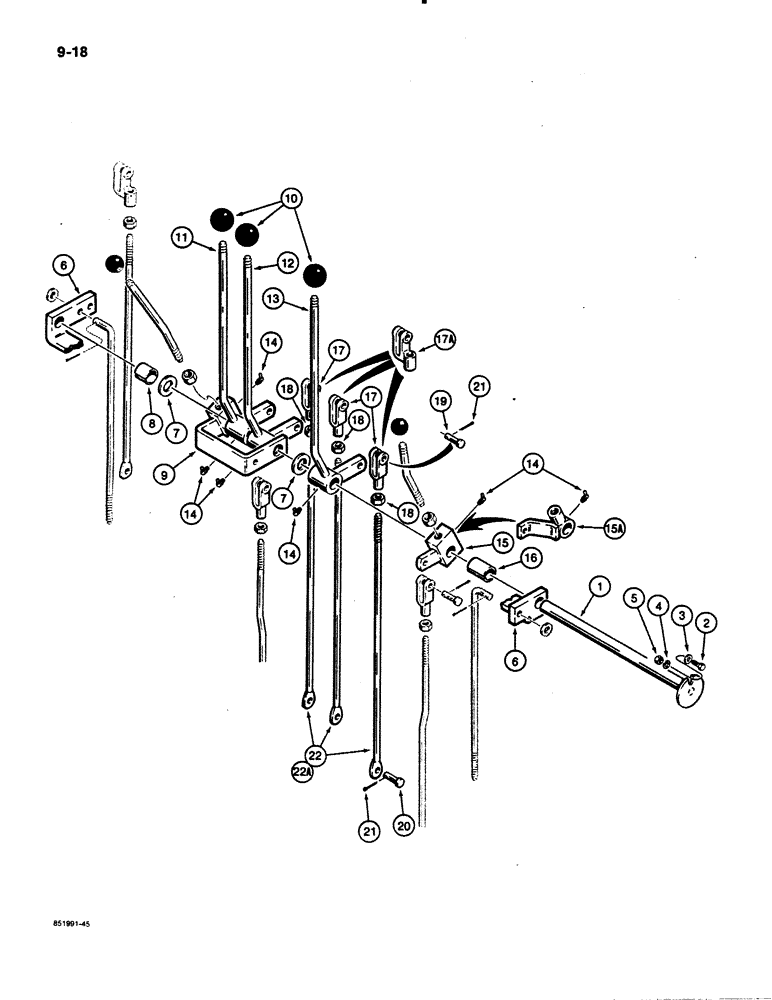

Запчасти Case 480E (9-018) - BACKHOE CONTROLS WITH FOOT SWING, BOOM, DIPPER, AND BUCKET CONTROL LEVERS 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D123224

SHAFT

SHAFT - control levers

1шт.

2

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

3

195-133

WASHER,5/16" x 3/4" x .065"

WASHER - flat, 5/16 x 3/4 x 1/16 inch, Teflon

1шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

5

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

1шт.

6

D129392

BRACKET

BRACKET - swing pivot

1шт.

7

195-545

WASHER,3/4", SAE

WASHER - flat, 13/16 x 1-15/32 x 1/8 inch

1шт.

8

D88212

BUSHING

SPACER - left-hand, not used with extendable dipper

1шт.

9

D92993

BRACKET

BRACKET - left-hand stabilizer pivot

1шт.

10

L54563

KNOB

KNOB - boom, dipper, and bucket control levers

3шт.

11

D99173

HANDLE

CONTROL LEVER - bucket

1шт.

12

D99172

HANDLE

CONTROL LEVER - dipper

1шт.

13

D99171

HANDLE

CONTROL LEVER - boom

1шт.

14

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4 inch NF taper

5шт.

15

D92995

LEVER

LEVER - pivot, right-hand stabilizer on models without extendable dipper

1шт.

15a

D87834

LEVER

LEVER - pivot, right-hand stabilizer on models with extendable dipper

1шт.

16

D88213

SPACER

SPACER - right-hand, not used with extendable dipper

1шт.

17

213-41

ADJUSTABLE CLEVIS,3/8"-24

(x 2-1/2"), straight, used on models without extendable dipper

3шт.

17a

L11182

YOKE,3/8" - 24

UNIVERSAL JOINT YOKE CLEVIS - 3/8", offset, used on models with extendable dipper

3шт.

18

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

3шт.

19

141-54

CLEVIS PIN,3/8" x 1 1/16"

3шт.

20

141-53

CLEVIS PIN,5/16" x .940"

3шт.

21

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

6шт.

22

D81902

ROD

ROD - boom, dipper, and bucket control, straight, models without extendable dipper

3шт.

22a

D30821

ROD

ROD - boom, dipper, and bucket control, straight, models with extendable dipper, uses offset clevis (Ref. 17A)

3шт.
