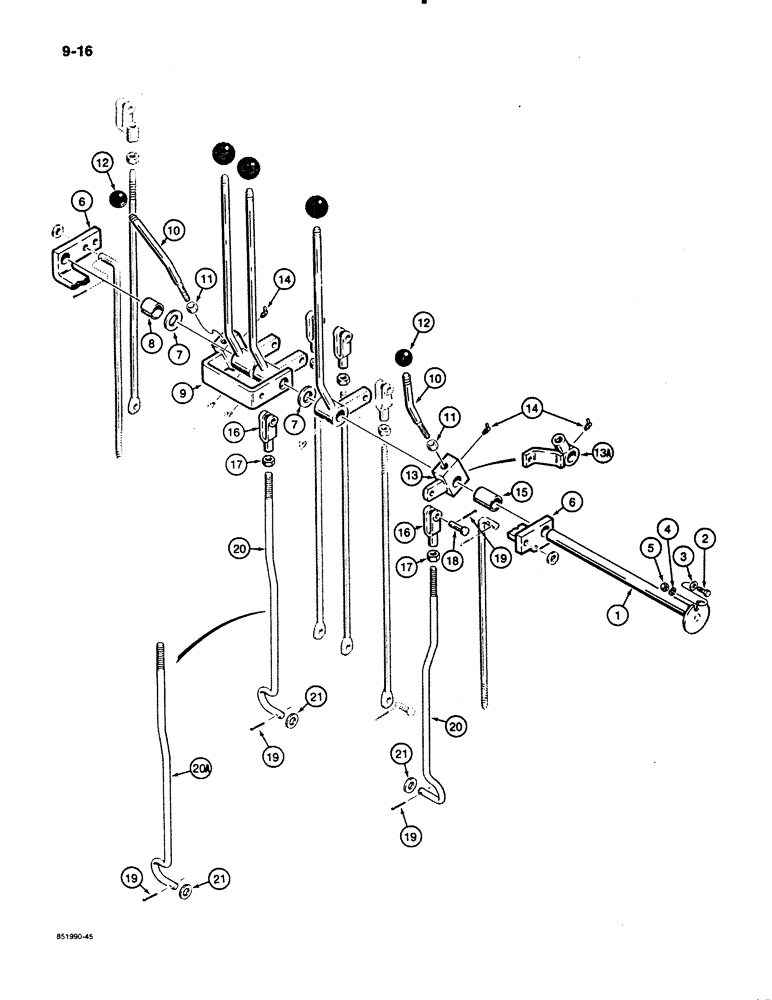

Запчасти Case 480E (9-016) - BACKHOE CONTROLS WITH FOOT SWING, STABILIZER CONTROL LEVERS & LINKAGE 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D123224

SHAFT

SHAFT - control levers

1шт.

2

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

3

195-133

WASHER,5/16" x 3/4" x .065"

WASHER - flat, 5/16 x 3/4 x 1/16 inch, Teflon

1шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

5

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

1шт.

6

D129392

BRACKET

BRACKET - swing pivot

1шт.

7

195-545

WASHER,3/4", SAE

WASHER - flat, 13/16 x 1-15/32 x 1/8 inch

1шт.

8

D88212

BUSHING

SPACER - left-hand, not used with extendable dipper

1шт.

9

D92993

BRACKET

BRACKET - left-hand stabilizer pivot

1шт.

10

D86249

LEVER

CONTROL LEVER - stabilizer

2шт.

11

129-125

NUT,1/2"-20, G5

NUT, 1/2"-20, G5

2шт.

12

D59912

KNOB

KNOB - stabilizer control levers

2шт.

13

D92995

LEVER

LEVER - pivot, right-hand stabilizer on models without extendable dipper

1шт.

13a

D87834

LEVER

LEVER - pivot, right-hand stabilizer on models with extendable dipper

1шт.

14

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4 inch NF taper

2шт.

15

D88213

SPACER

SPACER - right-hand, not used with extendable dipper

1шт.

16

H44198

YOKE

UNIVERSAL JOINT YOKE CLEVIS - 5/16", plated

2шт.

17

129-122

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

2шт.

18

141-53

CLEVIS PIN,5/16" x .940"

2шт.

19

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

20

D126331

STEM

ROD - stabilizer control, two used on models without extendable dipper

1-2шт.

20a

D126334

ROD

ROD - left-hand stabilizer control on models with extendable dipper

1шт.

21

195-102

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

2шт.
