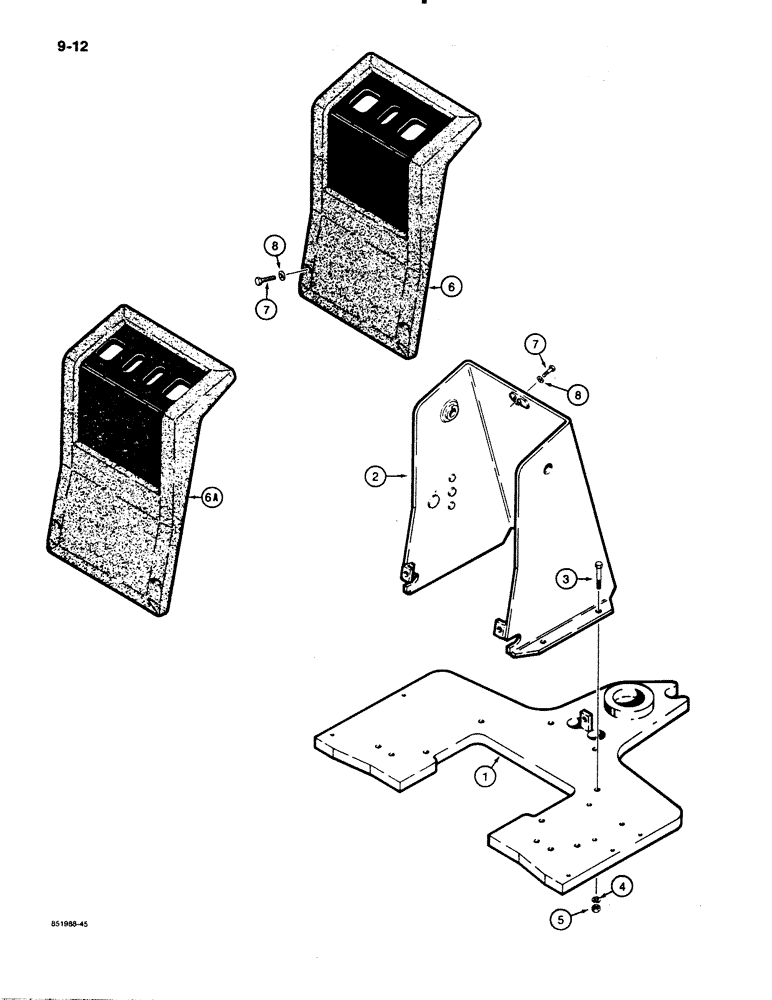

Запчасти Case 480E (9-012) - BACKHOE CONTROL TOWER WITH FOOT SWING, 480E MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - backhoe mounting, see Figure 9-30

1шт.

2

D123189

CONTROL BLOCK

CONTROL TOWER - backhoe

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

D124081

COVER ASSY

COVER - console without extendable dipper, brown, includes decals, see figure 9-168, if used

1шт.

6a

D124082

COVER

COVER - console with extendable dipper, brown, includes decals, see figure 9-168, if used

1шт.

7

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - hex washer, self-tapping, 1/4" - 20 NC x 3/4", black

3шт.

8

195-133

WASHER,5/16" x 3/4" x .065"

WASHER - flat, 5/16 x 3/4 x 1/16 inch, Teflon

3шт.
