Запчасти Case 480E (9-008) - LOADER BUCKETS, LONG LIP BUCKETS (09) - CHASSIS/ATTACHMENTS

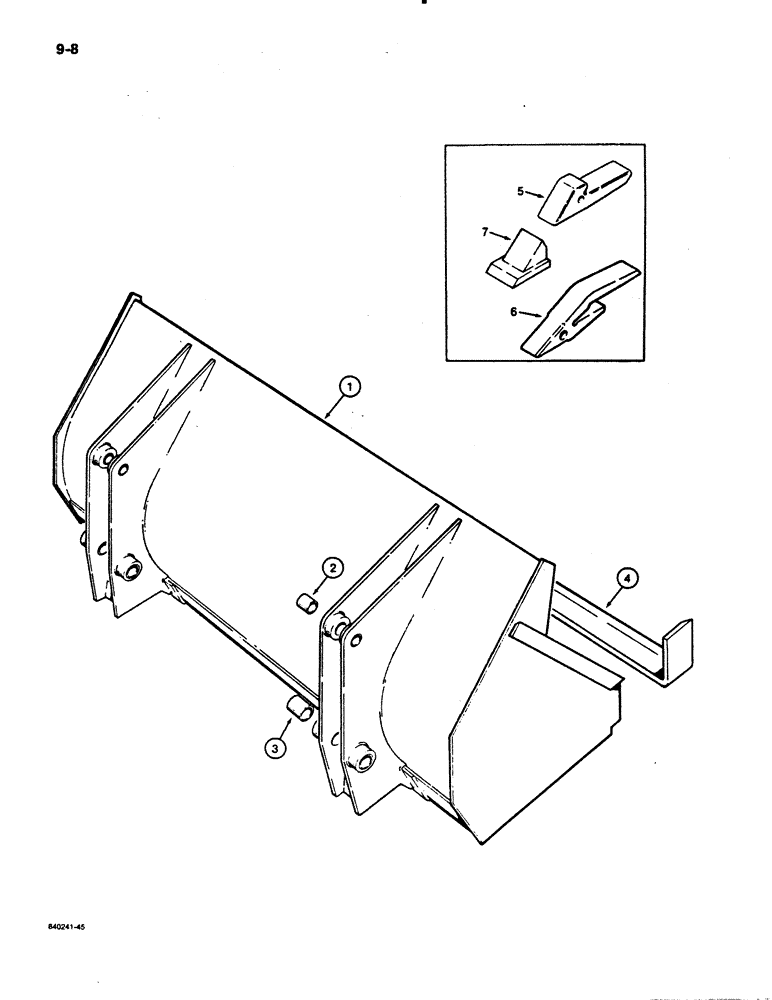

Схема запчастей Case 480E - (9-008) - LOADER BUCKETS, LONG LIP BUCKETS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

D73240

BUCKET ASSEMBLY - 64" (1626 mm) wide, order from Machinery Price List, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

D67914

BUSHING

BUSHING - at bucket cylinder

4шт.

3

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

BUSHING - at loader frame

4шт.

4

D95071

EDGE, CUTTING

CUTTING EDGE - bucket

1шт.

D73239

BUCKET ASSEMBLY - 74" (1880 mm) wide, order from Machinery Price List, short lip, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, short lip

1шт.

2

D67914

BUSHING

BUSHING - at bucket cylinder, short lip

4шт.

3

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

BUSHING - at loader frame, short lip bucket

4шт.

4

D95072

EDGE, CUTTING,4” W x 72.47” L x 6” H x 3/4” Thk

CUTTING EDGE - bucket, short lip

1шт.

Ref d76457 82" we dont make a 480e bucket, gannon does bc0580 net $1,410 as of 1/16/97

1шт.

D76457

BUCKET ASSEMBLY - 82" (2083 mm) wide, order from Machinery Price List, short lip, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, short lip

1шт.

2

D67914

BUSHING

BUSHING - at bucket cylinder, short lip

4шт.

3

D30932

BUSHING,38.33mm ID x 47.63mm OD x 28.45mm L

BUSHING - at loader frame, short lip bucket

4шт.

4

D76258

EDGE, CUTTING,4” W x 80.5” L x 6” H x 3/4” Thk

CUTTING EDGE - bucket, short lip

1шт.

5

D26368

SUPPORT

SHANK - tooth, original equipment, bucket

8-9шт.

6

D58499

SUPPORT

SHANK - tooth, service option, bucket

8-9шт.

7

D27748

TOOTH

POINT - tooth, standard, bucket

8-9шт.

7

D36720

TOOTH

POINT - tooth, heavy duty service option, bucket

8-9шт.

Выбрано товаров: 20
