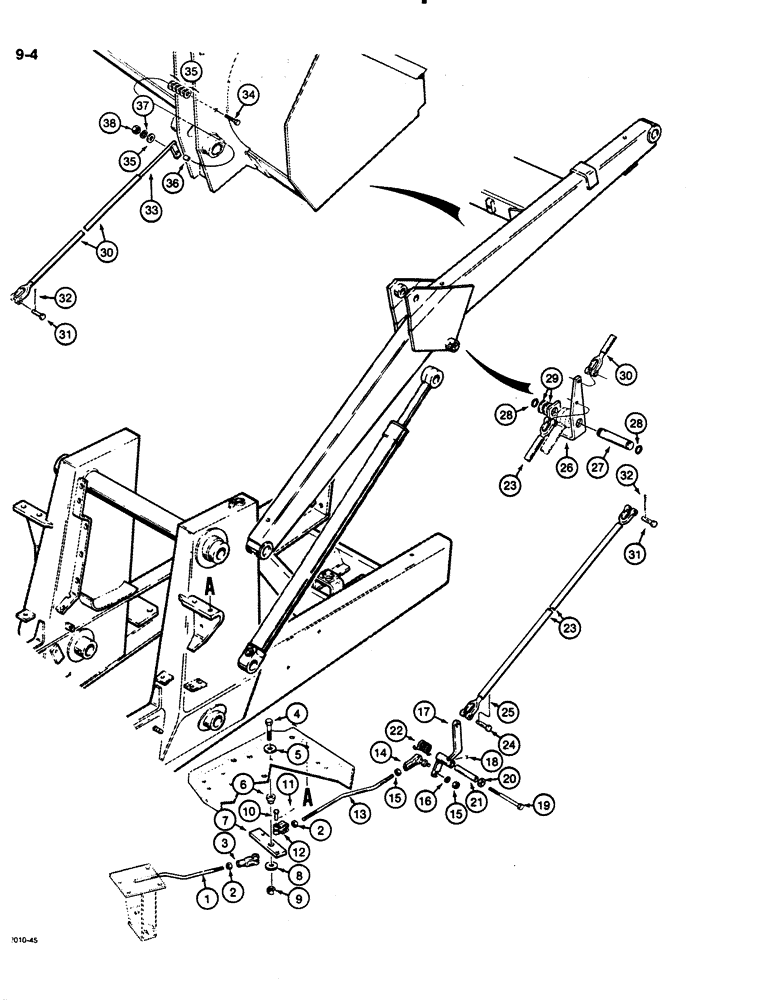

Запчасти Case 480E (9-004) - LOADER ANTIROLLBACK CONTROL (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D127097
ROD
ROD - bucket control
1шт.
2
129-123
NUT,3/8"-24, G5
NUT, 3/8"-24, G5
2шт.
3
213-41
ADJUSTABLE CLEVIS,3/8"-24
(x 2-1/2")
1шт.
4
113-441
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
BOLT, Hex, 1/2"-13 x 2 1/4", G5
1шт.
5
95-8
WASHER,1/2"
Flat
1шт.
6
D75648
SPACER
SPACER - pivot
1шт.
7
D69578
LINK
LINK - rod connecting, pivot
1шт.
8
D64050
WASHER
WASHER - hardened
1шт.
9
131-1116
LOCK NUT,1/2"-13, GB
NUT, LOCK, 1/2"-13, GB
1шт.
10
141-54
CLEVIS PIN,3/8" x 1 1/16"
2шт.
11
132-331
COTTER PIN,3/32" x 5/8"
PIN, SPLIT (COTTER), 3/32" x 5/8"
2шт.
12
L11182
YOKE,3/8" - 24
UNIVERSAL JOINT YOKE CLEVIS - rod end, offset
1шт.
13
D99007
ROD
ROD - input
1шт.
14
D69180
BALL JOINT
BALL JOINT - 3/8"
1шт.
15
129-123
NUT,3/8"-24, G5
NUT, 3/8"-24, G5
2шт.
16
492-11038
LOCK WASHER,3/8"
1шт.
17
D99017
LEVER
LEVER - antirollback
1шт.
18
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
1шт.
19
113-630
BOLT,Hex, 5/8" - 11 x 6", Gr 5
BOLT - hex, 5/8 NC x 6 inch
1шт.
20
T53567
BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk
WASHER - hardened, 5/8"
1шт.
21
D69565
SLEEVE
SLEEVE - spacer
1шт.
22
D72099
SPRING
SPRING - return
1шт.
23
D99008
TUBE,1098 mm L
TUBE - antirollback, intermediate
1шт.
24
141-54
CLEVIS PIN,3/8" x 1 1/16"
1шт.
25
132-331
COTTER PIN,3/32" x 5/8"
PIN, SPLIT (COTTER), 3/32" x 5/8"
1шт.
26
D99183
LEVER
BRACKET - pivot, antirollback
1шт.
27
D28649
PIN
PIN - pivot
1шт.
28
D25279
SNAP RING,M35, Int
SNAP RING - pin retaining
2шт.
29
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
WASHER - spacer, pivot pin
2шт.
30
D99010
TUBE,1254.5 mm L
TUBE - antirollback, outer
1шт.
31
141-54
CLEVIS PIN,3/8" x 1 1/16"
2шт.
32
132-331
COTTER PIN,3/32" x 5/8"
PIN, SPLIT (COTTER), 3/32" x 5/8"
2шт.
33
D99012
ROD
ROD - antirollback
1шт.
34
113-441
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
BOLT, Hex, 1/2"-13 x 2 1/4", G5
1шт.
35
95-8
WASHER,1/2"
Flat
6шт.
36
D40896
ROLLER
BUSHING - rod
1шт.
37
80679
LOCK WASHER,1/20.507 CST ZND
1шт.
38
425-108
NUT,1/2" - 13, Gr 5
1шт.
Выбрано товаров: 38
