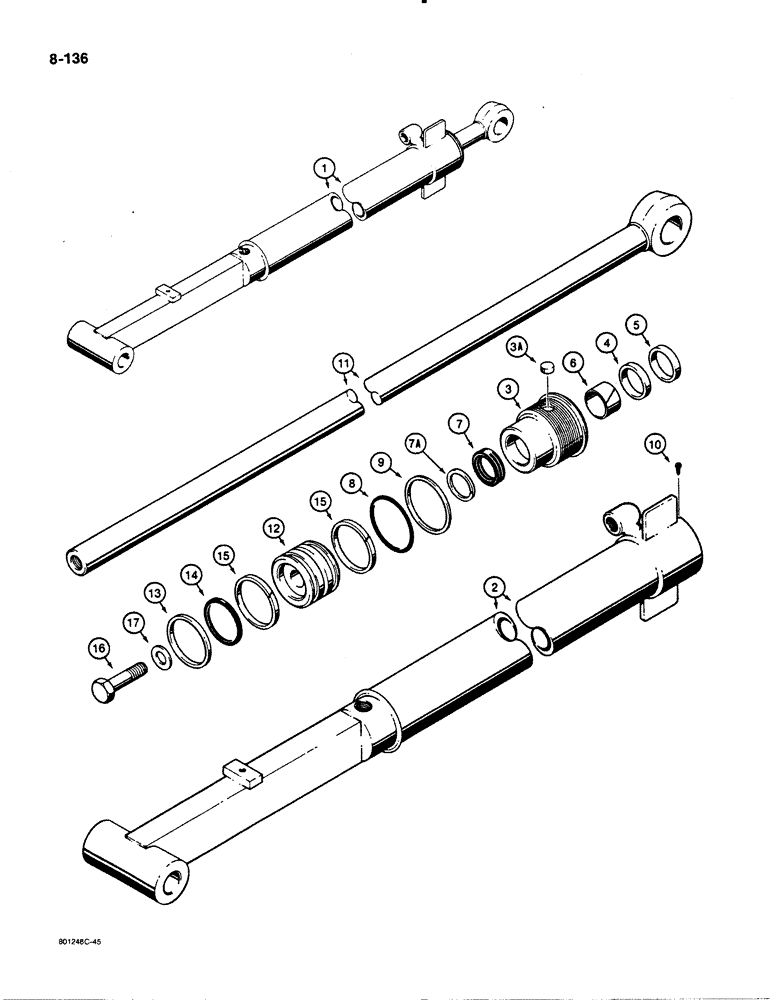

Запчасти Case 480E (8-136) - G101203 BACKHOE DIPPER EXTENSION CYLINDER, 480E MODELS ONLY (08) - HYDRAULICS

1

G101203

CYLINDER

CYLINDER ASSEMBLY - 3" (76 mm) ID x 36-3/8" (924 mm) stroke, dipper extension, Includes: Ref. 2 - 16

1шт.

2

G33205

TUBE,61.21" L

TUBE - cylinder

1шт.

G104222

GLAND

GLAND ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

PLUG - nylon, thread locking, gland, if used

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G109452

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Center

1шт.

Part of Seal Kit, P/N G109452

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109452

1шт.

7

G100776

SEAL

U-CUP SEAL - piston rod, service option, severe heat or cold

1шт.

7a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

SEAL - piston rod, narrow, with groove

1шт.

Part of Seal Kit, P/N G109452

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

O-RING - 3 x 3-1/4 x 1/8 inch

1шт.

Part of Seal Kit, P/N G109452

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G109452

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

11

G33207

ROD

ROD - piston, 1-1/2" (38 mm) diameter

1шт.

12

G100442

PISTON

PISTON - cylinder

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit, P/N G109452

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G109452

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

Part of Seal Kit, P/N G109452

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - hardened

1шт.

G109452

GASKET KIT

KIT - seal, includes Refs. 5 through 9 (except G100776) and 13 through 15

1шт.
