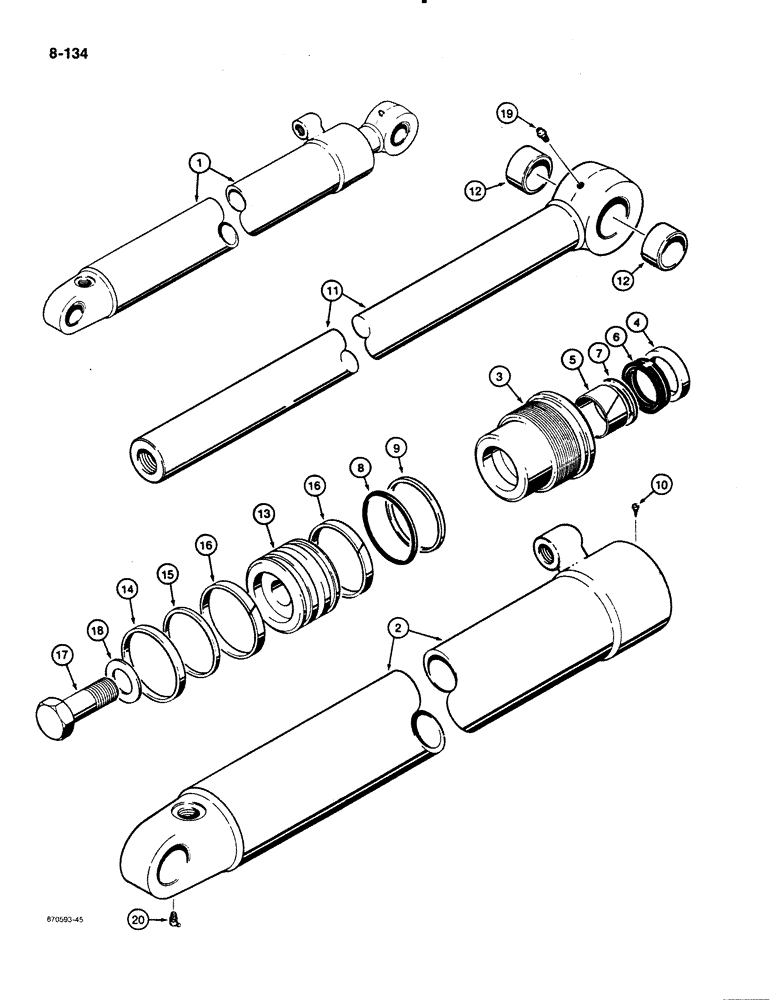

Запчасти Case 480E (8-134) - G109342 BACKHOE BUCKET CYLINDER, USED WITH SPECIAL FEATURE LINKS 480E MODELS ONLY (08) - HYDRAULICS

1

G109342

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2" (89 mm) ID x 26-5/16" (668 mm) stroke, backhoe bucket, Includes: Ref. 2 - 20

1шт.

2

G109343

TUBE

TUBE ASSEMBLY - cylinder, without bushings

1шт.

G104268

GLAND

GLAND ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G109504

1шт.

5

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

BUSHING - center

1шт.

Part of Seal Kit, P/N G109504

1шт.

6

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109504

1шт.

7

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

SEAL - piston rod, narrow, with groove

1шт.

Part of Seal Kit, P/N G109504

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

O-RING - gland

1шт.

Part of Seal Kit, P/N G109504

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G109504

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

11

G109752

ROD ASSY.

ROD ASSEMBLY - piston, 2-1/2" (64 mm) diameter, Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

BUSHING - piston rod

2шт.

13

G103357

PISTON

PISTON - cylinder

1шт.

14

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

Piston

1шт.

Part of Seal Kit, P/N G109504

1шт.

15

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G109504

1шт.

16

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of Seal Kit, P/N G109504

1шт.

17

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

WASHER - hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Special short

1шт.

G109504

KIT

KIT - seal, includes Refs. 4 through 9 and 14 through 16

1шт.
