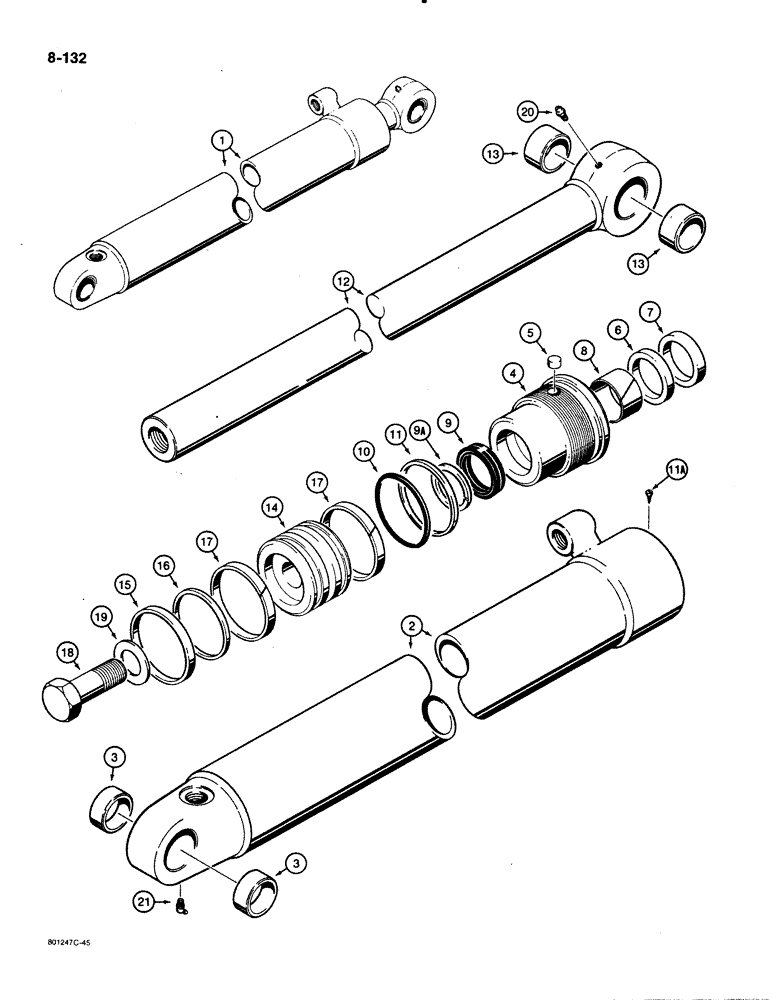

Запчасти Case 480E (8-132) - G103503 BACKHOE BUCKET CYLINDER, 480E MODELS ONLY (08) - HYDRAULICS

1

G103503

CYLINDER BLOCK

CYLINDER ASSEMBLY - 3-1/4" (83 mm) ID x 26-5/16" (668 mm) stroke, backhoe bucket, Includes: Ref. 2 - 21

1шт.

2

G103504

TUBE,34.36" L

TUBE ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

BUSHING - tube

2шт.

G104252

GLAND

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

PLUG - nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINING RING - bushing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit, P/N G109465

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N G109465

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N G109465

1шт.

9

G100778

SEAL

U-CUP SEAL - piston rod, service option - severe heat or cold

1шт.

9a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

SEAL - piston rod, narrow, with groove

1шт.

Part of Seal Kit, P/N G109465

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

O-RING - gland

1шт.

Part of Seal Kit, P/N G109465

1шт.

11

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G109465

1шт.

11a

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

If used

1шт.

12

G103509

ROD

SPARE PART ROD ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

BUSHING - piston rod

2шт.

14

G100640

PISTON

PISTON - cylinder

1шт.

15

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

SEAL - piston

1шт.

Part of Seal Kit, P/N G109465

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit, P/N G109465

1шт.

17

S109445

RING,82.55mm OD, Ext

RING - wear, piston

2шт.

Part of Seal Kit, P/N G109465

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

WASHER - hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

21

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 65 degree, special short, 1/8" NPT

1шт.

G109465

GASKET KIT

KIT - seal, includes Refs. 6 through 11(except G100778) and 15 through 17

1шт.
