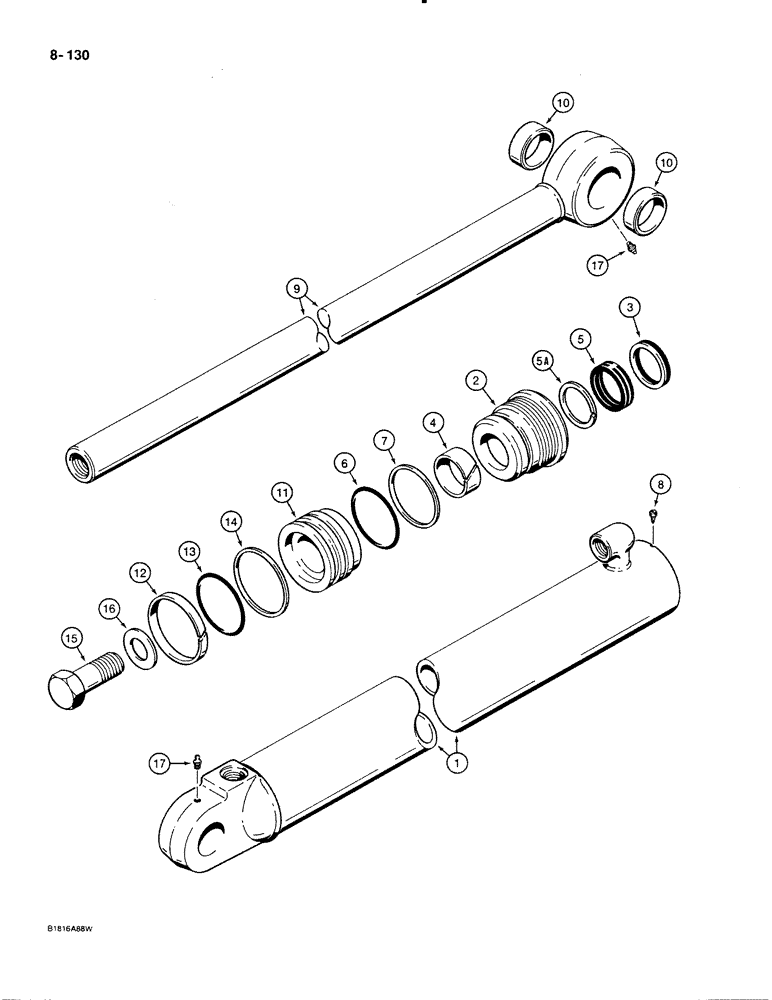

Запчасти Case 480E (8-130) - 1980159C1 DIPPER CYLINDER, 14 FOOT BACKHOE MODELS (08) - HYDRAULICS

1980159C1

CYLINDER BLOCK

CYLINDER ASSEMBLY - 3-3/4" (95 mm) ID x 33" (838 mm) stroke backhoe dipper, Includes: Ref. 1 - 17

1шт.

1

1980176C1

HYD TUBE

TUBE ASSEMBLY - cylinder

1шт.

1980187C1

GLAND

GLAND ASSEMBLY - cylinder, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit, P/N 1980181C1

1шт.

4

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N 1980181C1

1шт.

5

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

SEAL - U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit, P/N 1980181C1

1шт.

5

G100778

SEAL

SEAL - U-cup, piston rod, service option, severe heat or cold

1шт.

5a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

SEAL - piston rod, narrow, with groove

1шт.

Part of Seal Kit, P/N 1980181C1

1шт.

6

S5933

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

O-RING - gland

1шт.

Part of Seal Kit, P/N 1980181C1

1шт.

7

1980249C1

SEALING RING

RING - backup, gland O-ring

1шт.

Part of Seal Kit, P/N 1980181C1

1шт.

8

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

9

1980252C1

ROD

SPARE PART ROD ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 10

1шт.

10

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

BUSHING - piston rod

2шт.

11

1980186C1

PISTON

PISTON - cylinder

1шт.

12

1980245C1

SEALING RING,89mm ID x 95.2mm OD x 12.5mm Thk

RING - wear, piston

1шт.

Part of Seal Kit, P/N 1980181C1

1шт.

13

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

O-RING - piston

1шт.

Part of Seal Kit, P/N 1980181C1

1шт.

14

1980250C1

SEALING RING

SEAL - piston

1шт.

Part of Seal Kit, P/N 1980181C1

1шт.

15

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

1шт.

16

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

WASHER - hardened

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

1980181C1

SEAL KIT

KIT - seal, includes Refs. 3 through 7 (except G100778) and 12 through 14

1шт.
