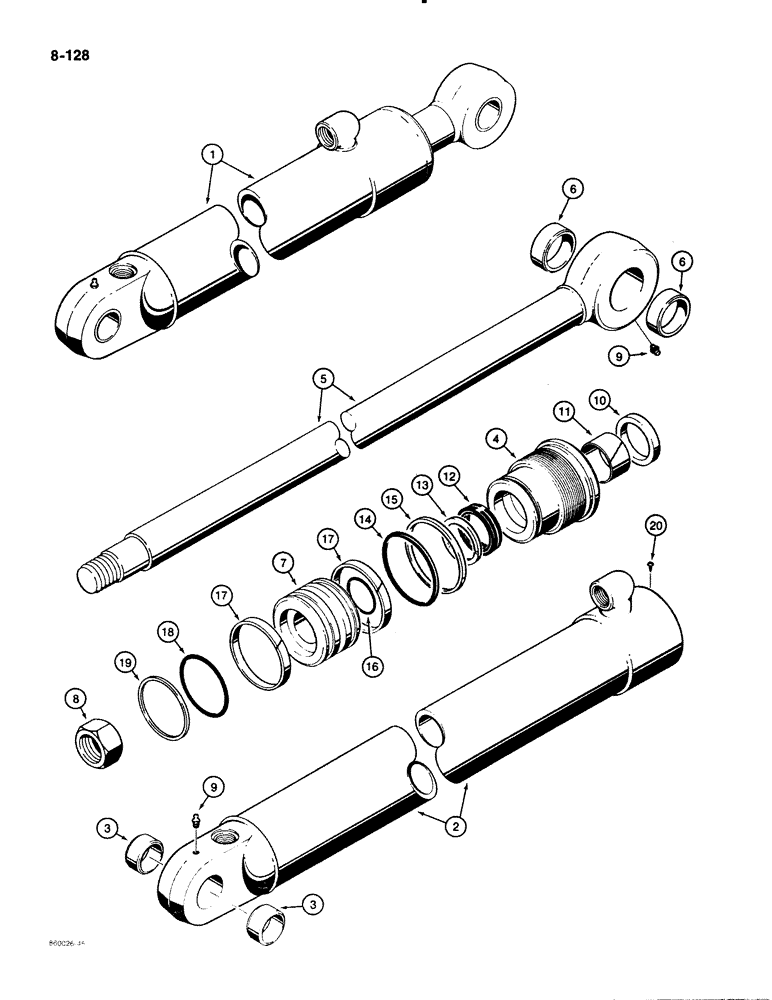

Запчасти Case 480E (8-128) - D135769 BACKHOE DIPPER CYLINDER, 480E MODELS WITH 14 FOOT BACKHOE ONLY (08) - HYDRAULICS

1

D135769

CYLINDER

CYLINDER ASSEMBLY - 3-3/4" (95 mm) ID x 33" (838 mm) stroke, backhoe boom, no longer used, order 1980159C1 dipper cylinder for service, parts list Figure 8-130, Includes: Ref. 2 - 20

1шт.

2

N13570

TUBE

TUBE ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

G33858

BUSHING,44.68mm ID x 53.98mm OD x 15.88mm L

BUSHING - tube

2шт.

4

N13572

GLAND

GLAND - cylinder

1шт.

5

N13571

ROD ASSY.

ROD ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 6

1шт.

6

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

BUSHING - piston rod

2шт.

7

N13573

PISTON

PISTON - cylinder

1шт.

8

131-190

LOCK NUT,1 1/4"-12, GB

NUT - hex, self locking, 1-1/4" - 12 NF

1шт.

9

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 inch NF taper

2шт.

N13574

KIT

KIT - cylinder repair, Includes: Ref. 10 - 20

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - gland assembly, center

1шт.

12

NSS

NOT SOLD SEPARAT

U-CUP SEAL - piston rod, wide

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston rod, narrow

1шт.

14

S5933

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

O-RING - gland

1шт.

15

NSS

NOT SOLD SEPARAT

BACKUP RING - gland O-ring

1шт.

16

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

O-RING - piston to piston rod

1шт.

17

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

18

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

O-RING - piston, outer

1шт.

19

NSS

NOT SOLD SEPARAT

BACKUP RING - piston, outer O-ring

1шт.

20

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - round head, self-tapping, No. 8 NC x 1/4 inch

1шт.
